Diagnostic Tests: Notes

NOTE: Before performing any diagnostic test, refer to SELF-DIAGNOSTIC SYSTEM for diagnostic system functions and system diagnostic procedures. Also check for any related Technical Service Bulletins (TSBs).

NOTE: When performing diagnostic tests, it may be necessary to identify Engine Control Module (ECM) electrical connector terminals which are referenced to in testing procedure. See Fig 1. To locate engine control system components, see Fig 2.

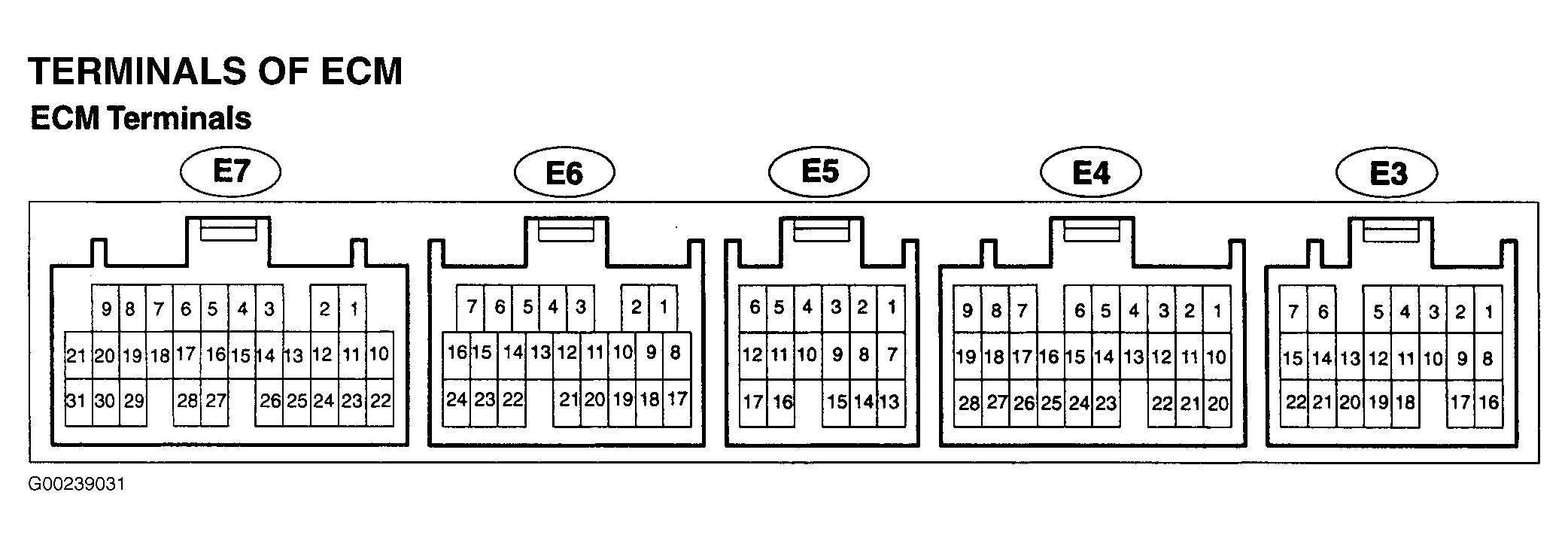

Fig 1: Identifying ECM Connectors & Terminals

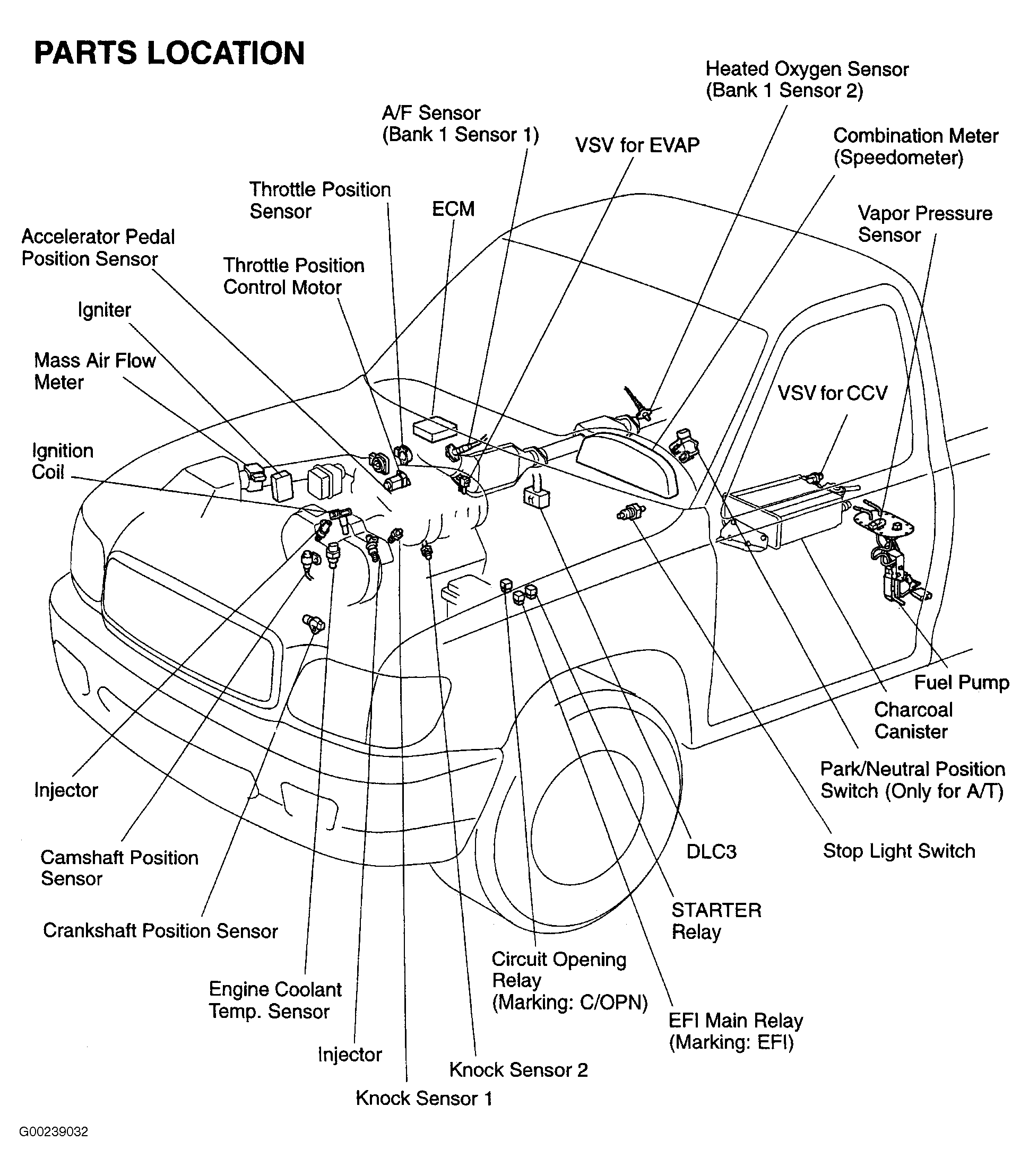

Fig 2: Locating Engine Control System Components
