Vehicle Lift And Support Locations

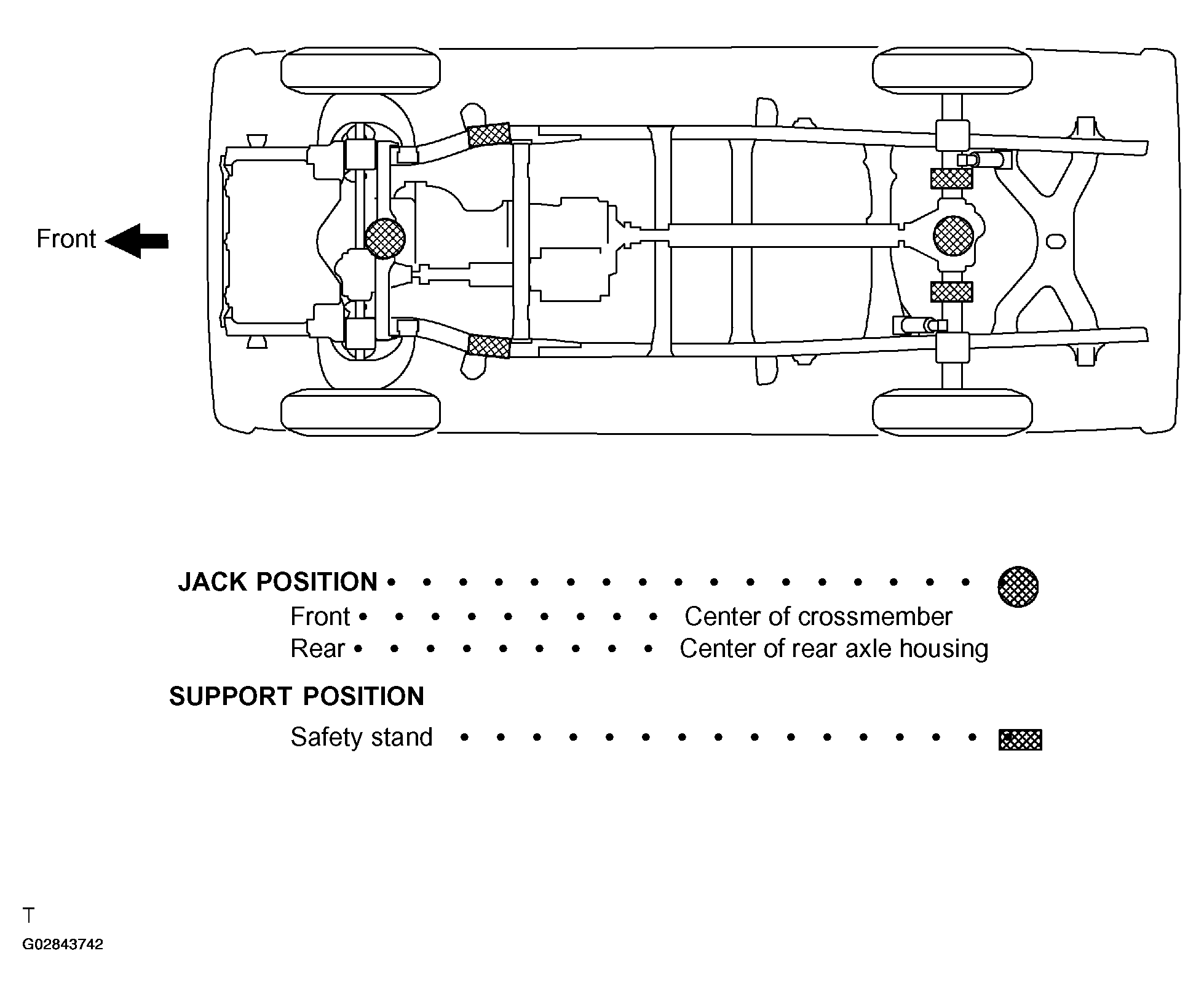

Fig 1: Identifying Vehicle Lift And Support Locations
G02843742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
