Ignition Switch & Key Unlock Warning System: Inspection

  1. INSPECT IGNITION SWITCH CONTINUITY

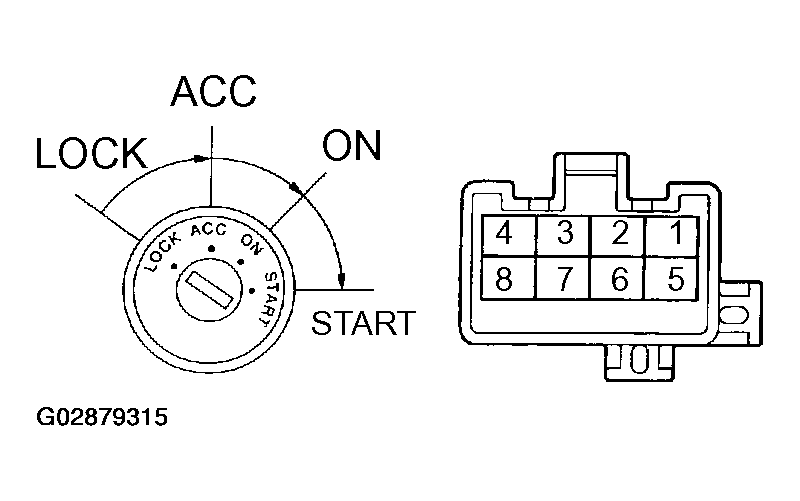

    Fig 1: Inspecting Ignition Switch Continuity (1 Of 2)
    G02879315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

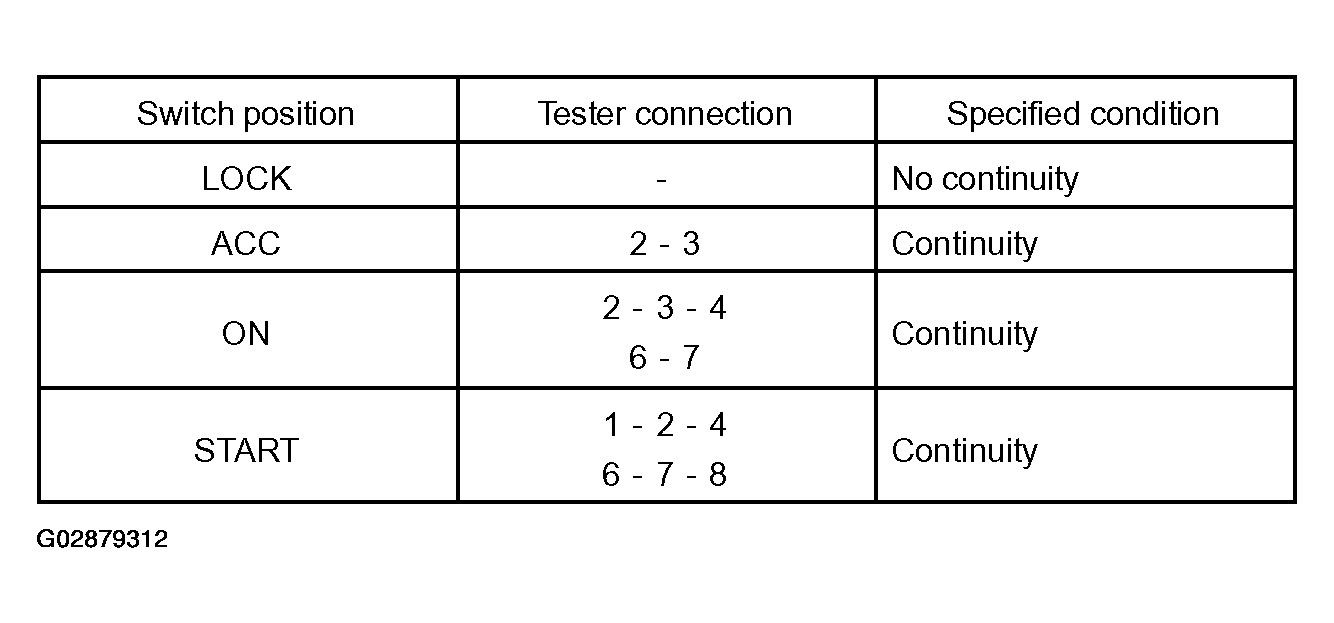

    Fig 2: Inspecting Ignition Switch Continuity (2 Of 2)
    G02879312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If continuity is not as specified, replace the switch.

  2. INSPECT KEY UNLOCK WARNING SWITCH CONTINUITY

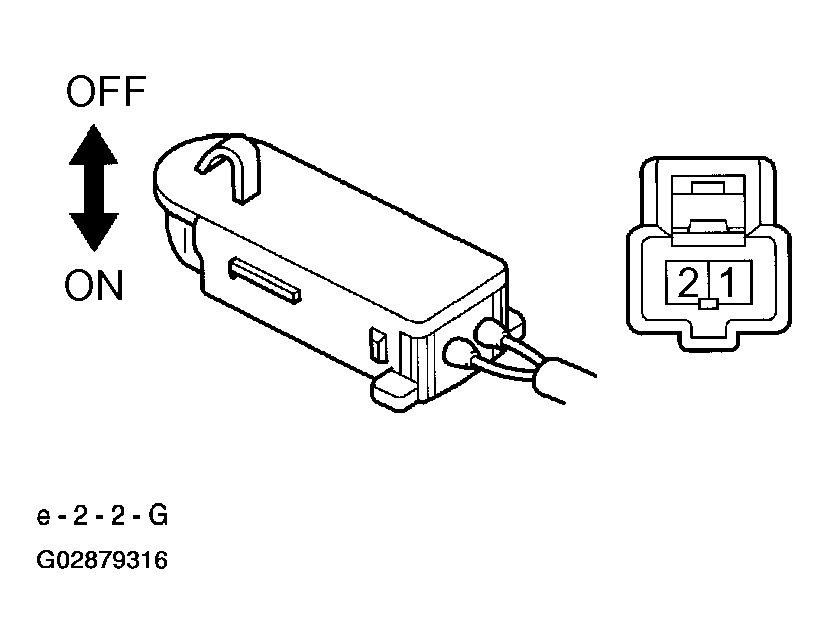

    Fig 3: Inspecting Key Unlock Warning Switch Continuity (1 Of 2)
    G02879316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

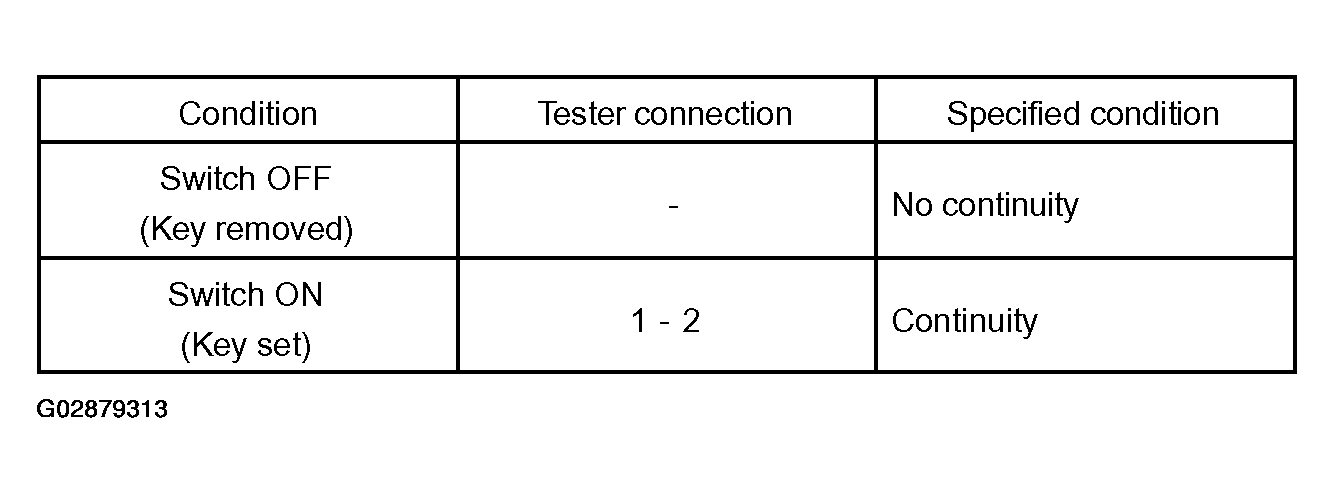

    Fig 4: Inspecting Key Unlock Warning Switch Continuity (2 Of 2)
    G02879313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If continuity is not as specified, replace the switch

  3. INSPECT IG1 RELAY CONTINUITY

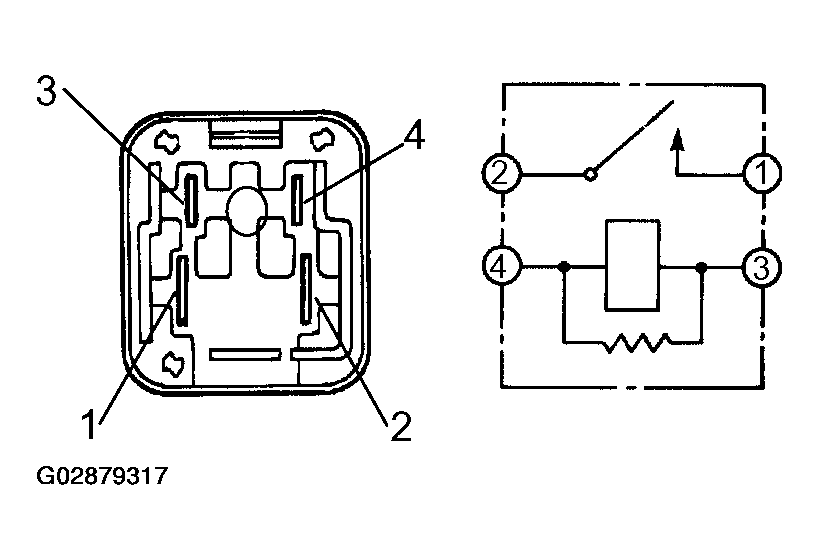

    Fig 5: Inspecting IG1 Relay Continuity (1 Of 2)
    G02879317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

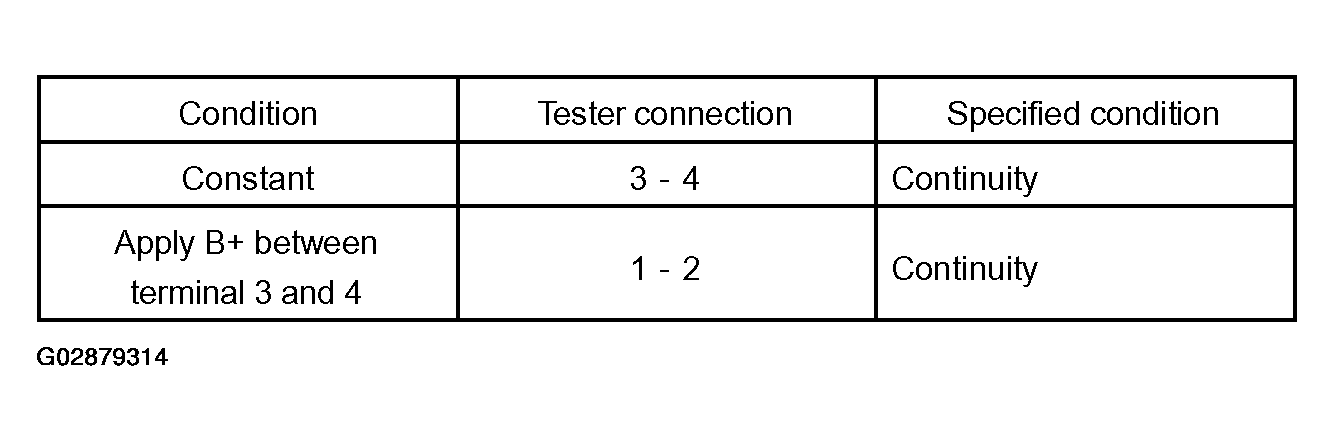

    Fig 6: Inspecting IG1 Relay Continuity (2 Of 2)
    G02879314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If continuity is not as specified, replace the switch.
