Power Window Control System: Troubleshooting

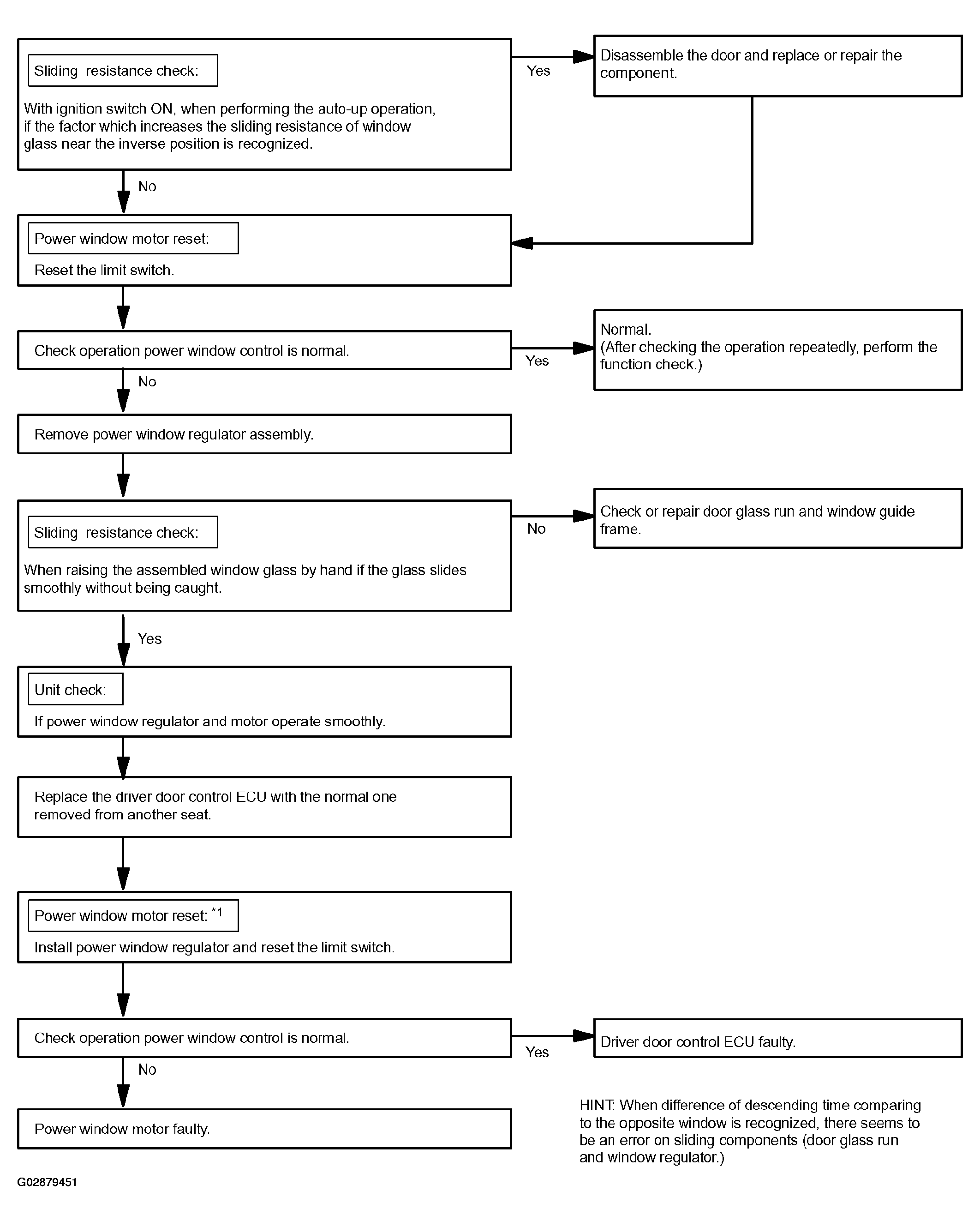

Fig 1: Troubleshooting Flow Chart (1 Of 2)
G02879451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

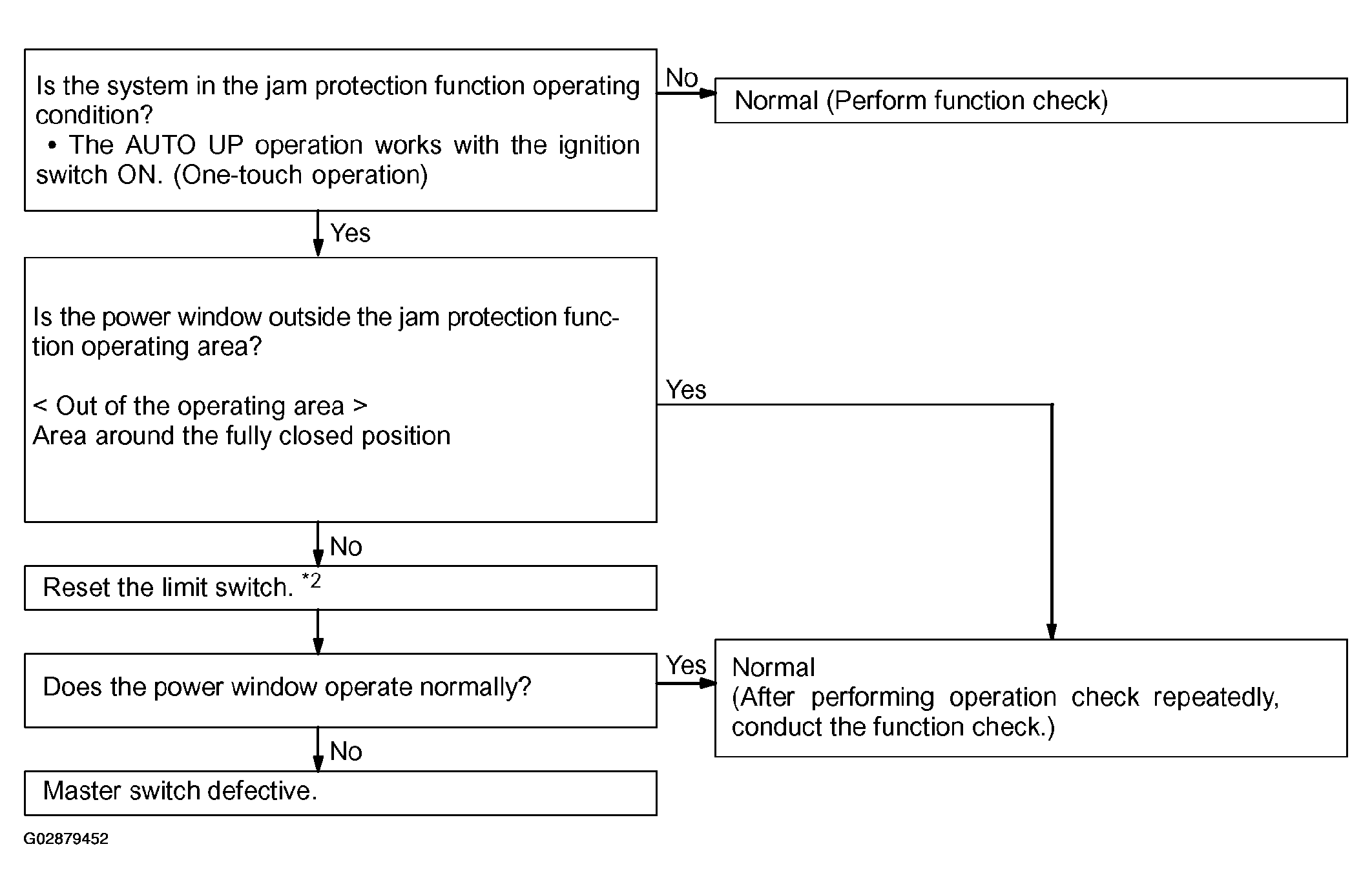

Fig 2: Troubleshooting Flow Chart (2 Of 2)
G02879452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
