Acoustic Control Induction System (ACIS): Installation

INSTALL NO.1 INTAKE AIR CONTROL VALVE (see REPLACEMENT and INSTALLATION )
INSTALL NO.2 INTAKE AIR CONTROL VALVE
1. Install the No.2 intake air control valve.
  1. Install a new gasket to the air intake chamber.

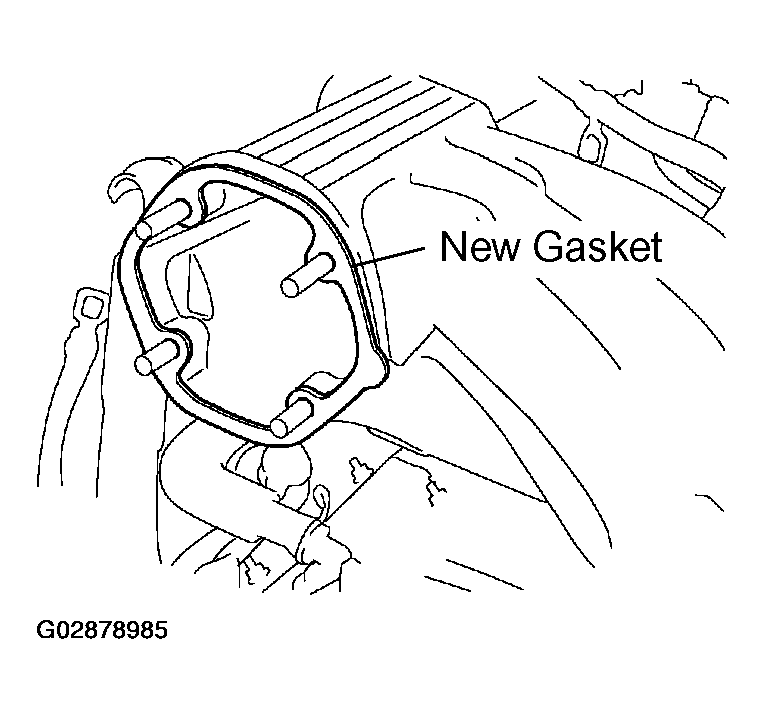

    Fig 1: Installing Gasket To Air Intake Chamber
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Apply a light coat of engine oil to the rubber portions.
  3. Apply seal packing to the positions of the intake air control valve shown in Fig 2 .
    Seal packing: Part No. 08826-00080 or equivalent
  4. Install the intake air control valve, ground strap and cable with the 4 nuts.
  Torque: 14.5 N.m (145 kgf.cm, 10 ft.lbf)
2. Connect the actuator vacuum hose.

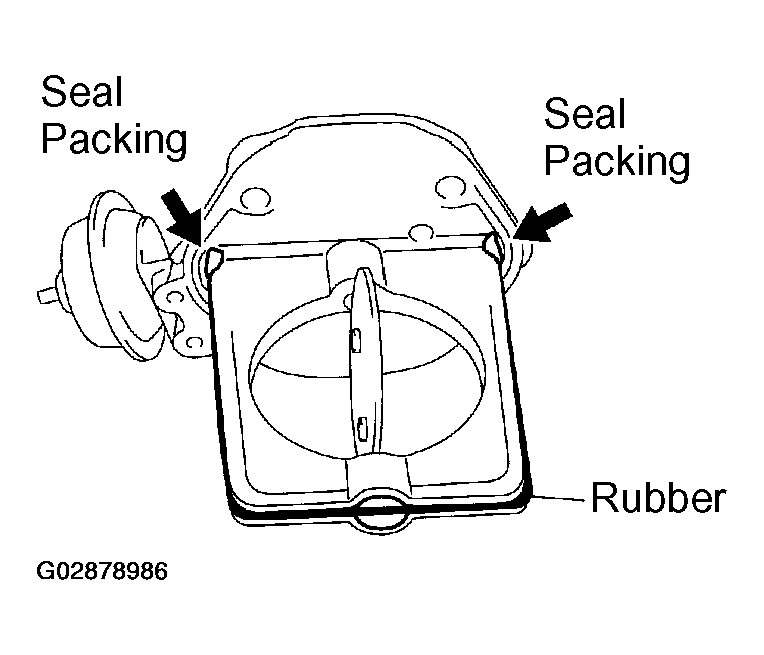

Fig 2: Applying Seal Packing To Positions Of Intake Air Control Valve
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
