Air-Fuel Ratio (A/F) Sensor: Components

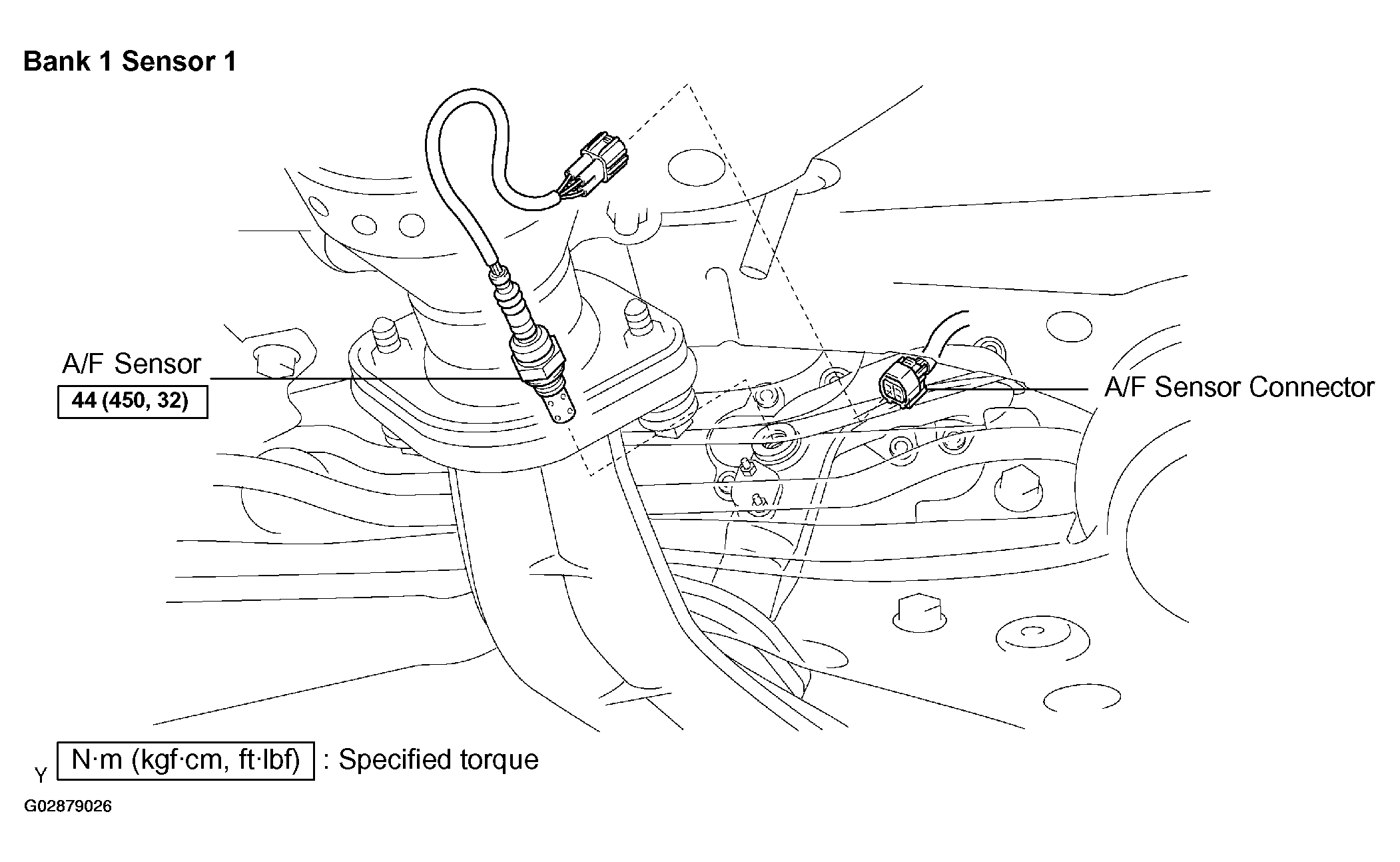

Fig 1: Identifying Air-Fuel Ratio (A/F) Sensor (Bank 1 Sensor 1)
G02879026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

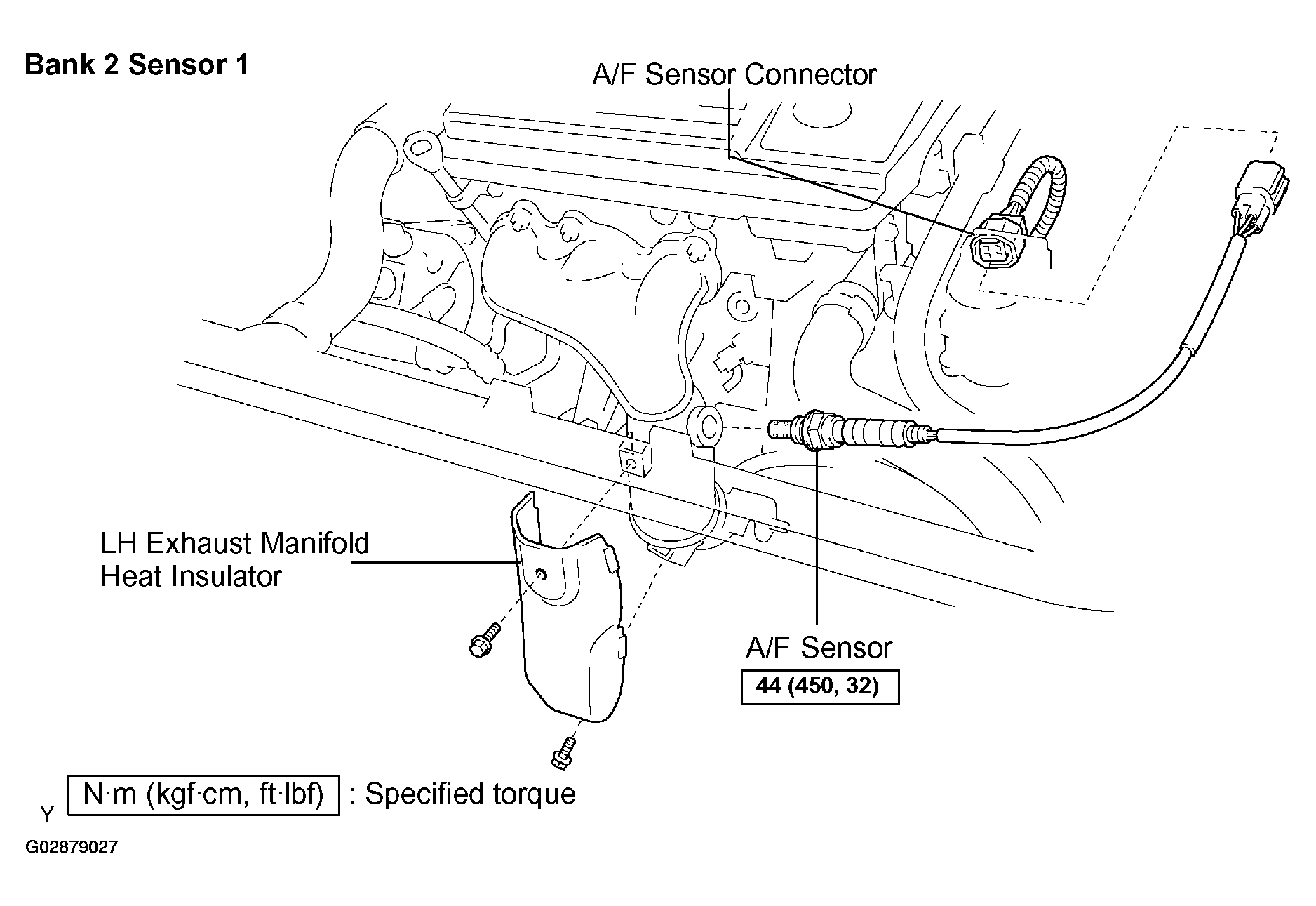

Fig 2: Identifying Air-Fuel Ratio (A/F) Sensor (Bank 2 Sensor 1)
G02879027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
