Camshaft Timing Oil Control Valve: Removal

1. Using a 5 mm hexagon wrench, remove the 3 cap nuts.
2. Loosen the V-bank cover fastener counterclockwise.

   HINT:

   At the time of installation, please refer to the following items.

   Press down the V-bank cover fastener.

3. Remove the V-bank cover.

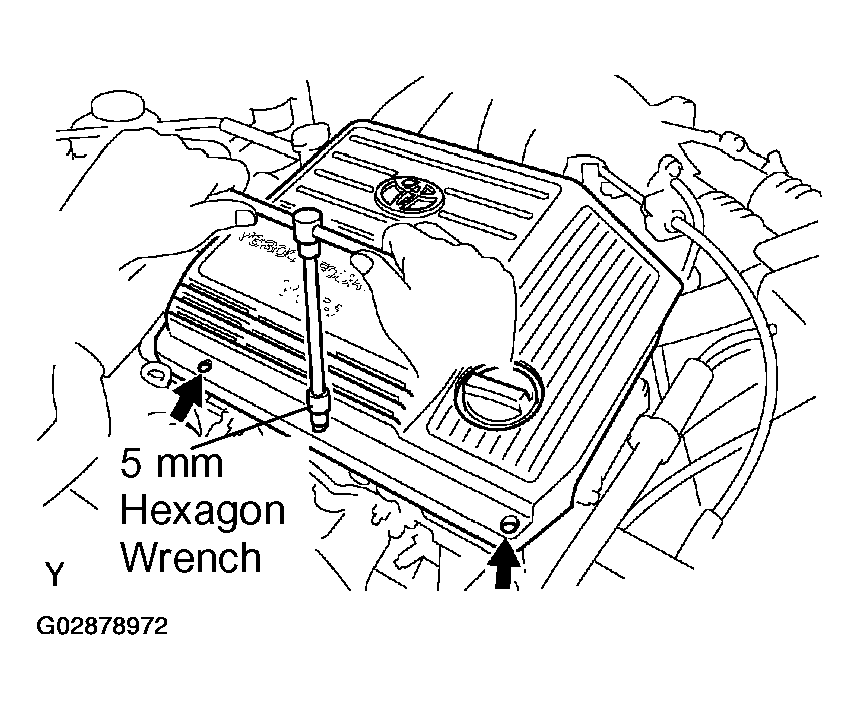

Fig 1: Removing V-Bank Cover

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the 2 camshaft oil control valve connectors.
2. Remove the bolt, camshaft oil control valve and O-ring. Remove the 2 camshaft oil control valves.

   Torque: 7.5 N.m (80 kgf.cm, 66 in.lbf)

3. Remove the O-ring from the each camshaft oil control valve.

HINT:

At the time of installation, please refer to the following items. Use a new O-ring.

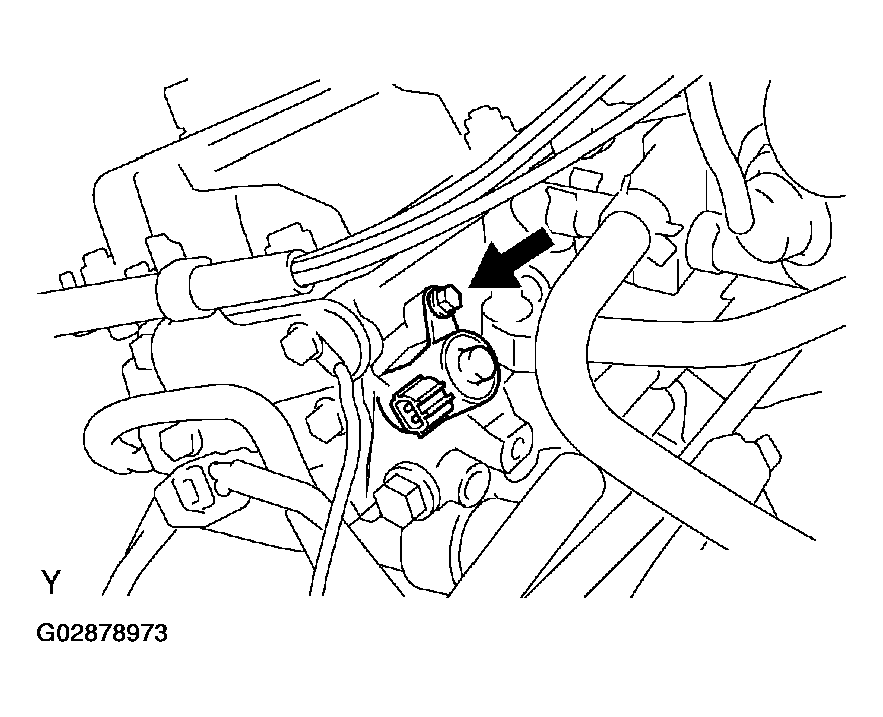

Fig 2: Removing Camshaft Timing Oil Control Valves

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
