Fuel Cut Rpm: Inspection

1. Using a 5 mm hexagon wrench, remove the 3 cap nuts.
2. Loosen the V-bank cover fastener counterclockwise.
3. Remove the V-bank cover.

Allow the engine to warm up to normal operating temperature.

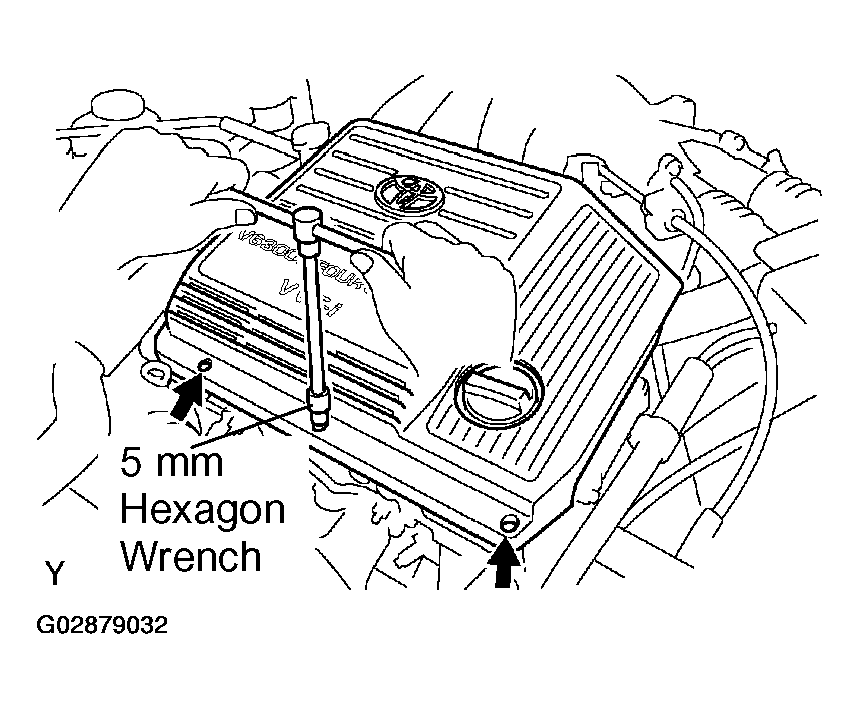

Fig 1: Removing V-Bank Cover

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the TOYOTA hand-held tester or OBDII scan tool to the DLC3.
2. Please refer to the TOYOTA hand-held tester or OBDII scan tool operator's manual for further details.

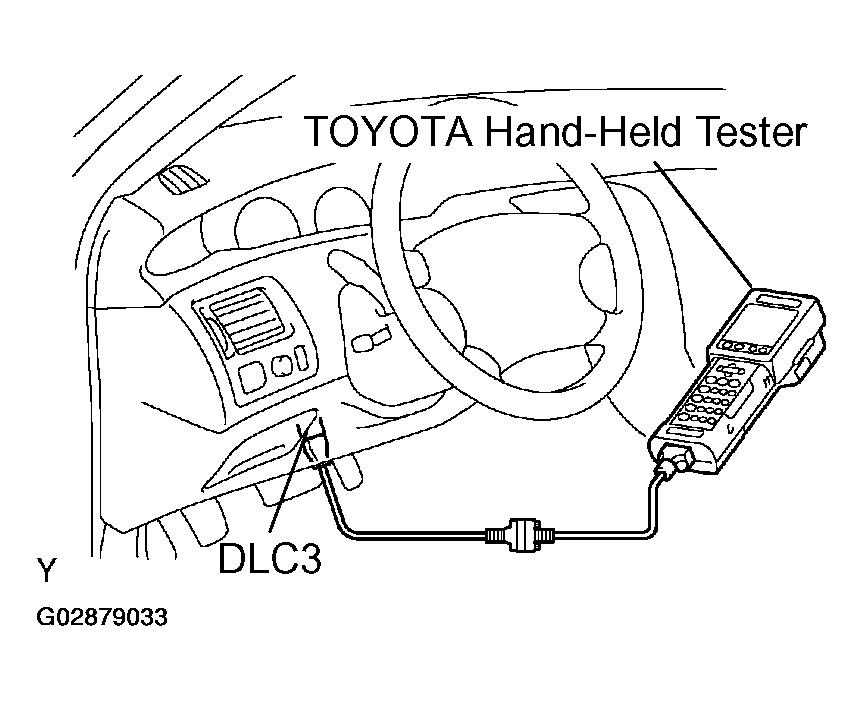

Fig 2: Connecting Toyota Hand-Held Tester Or OBDII Scan Tool To DLC3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Increase the engine speed to at least 3,500 rpm.
2. Use a sound scope to check for injector operating noise.
3. Check that when the throttle lever is released, injector operation noise stops momentarily and then resumes.

HINT:

Measure with the A/C OFF.

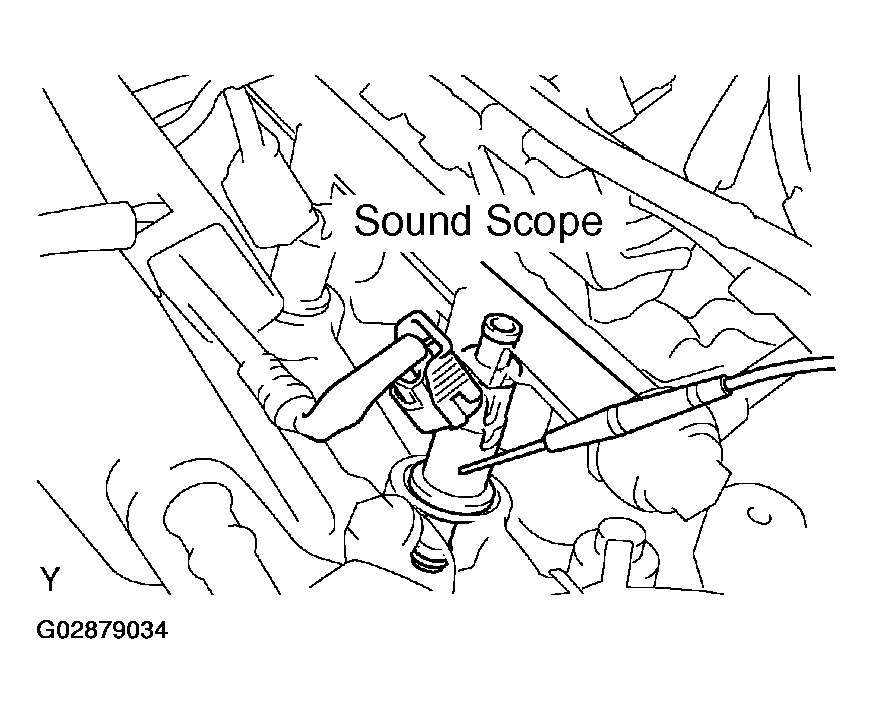

Fig 3: Inspecting Fuel Cut Off PRM

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fuel return rpm: 1,200 rpm

1. Using 5 mm hexagon wrench, install the V-bank cover with the 3 cap nuts.
2. Press down the V-bank cover fastener.
