Fuel Pressure Regulator: Removal

REMOVE FUEL PUMP ASSEMBLY FROM FUEL TANK (See REMOVAL )
REMOVE FUEL FILTER
1. Remove the screw, and pull out the fuel filter.
  Torque: 2.0 N.m (20 kgf.cm, 17 in.lbf)
2. Remove the O-ring from the fuel filter.

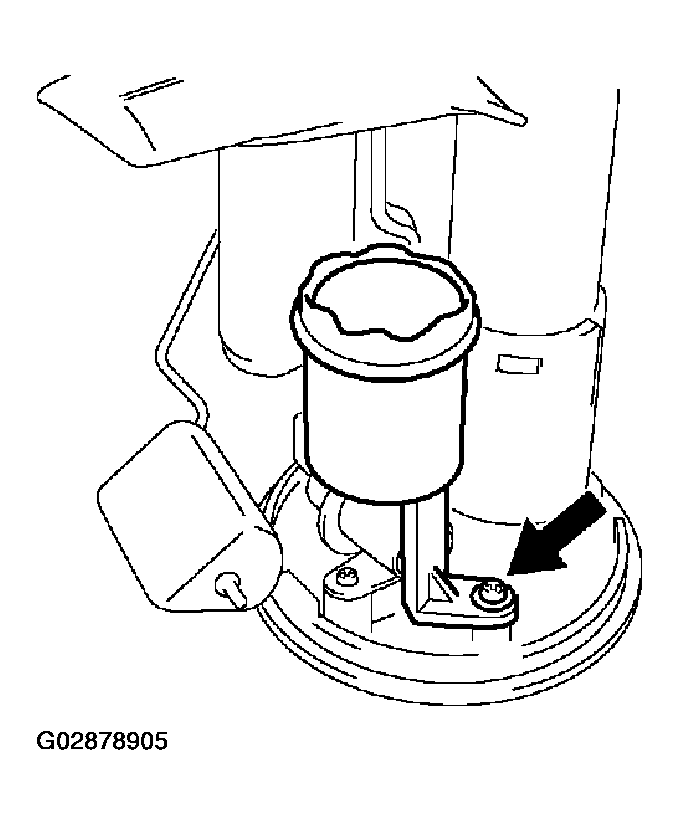

Fig 1: Removing Fuel Filter
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

At the time of installation, please refer to the following items. Apply a light coat of gasoline to a new O-ring, and install it to the fuel filter.
REMOVE FUEL PRESSURE REGULATOR
1. Remove the screw, and pull out the pressure regulator.
  Torque: 2.0 N.m (20 kgf.cm, 17 in.lbf)
2. Remove the O-ring from the pressure regulator.
HINT:

At the time of installation, please refer to the following items. Apply a light coat of gasoline to a new O-ring, and install it to the pressure regulator.

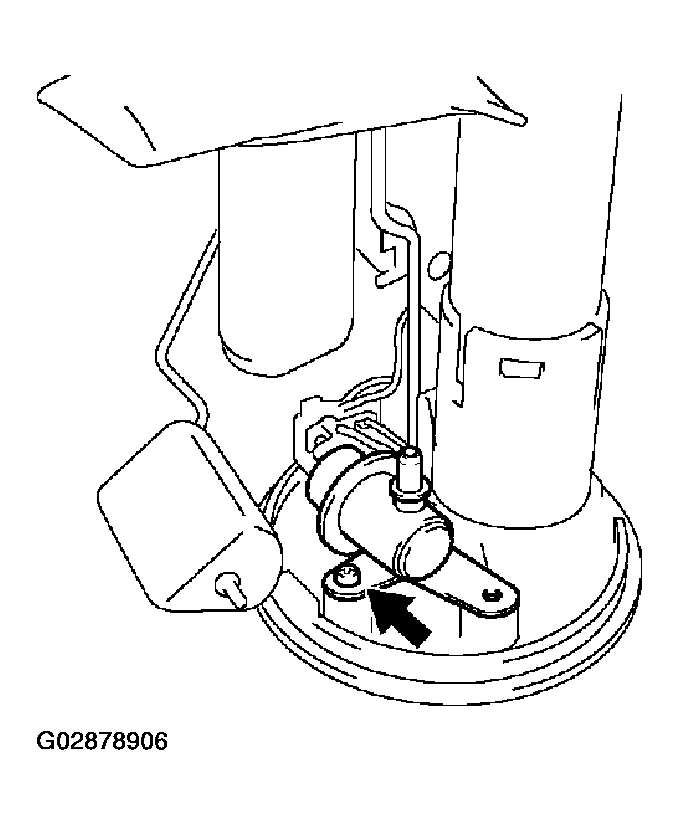

Fig 2: Removing Fuel Pressure Regulator
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
