Fuel Pump: Disassembly

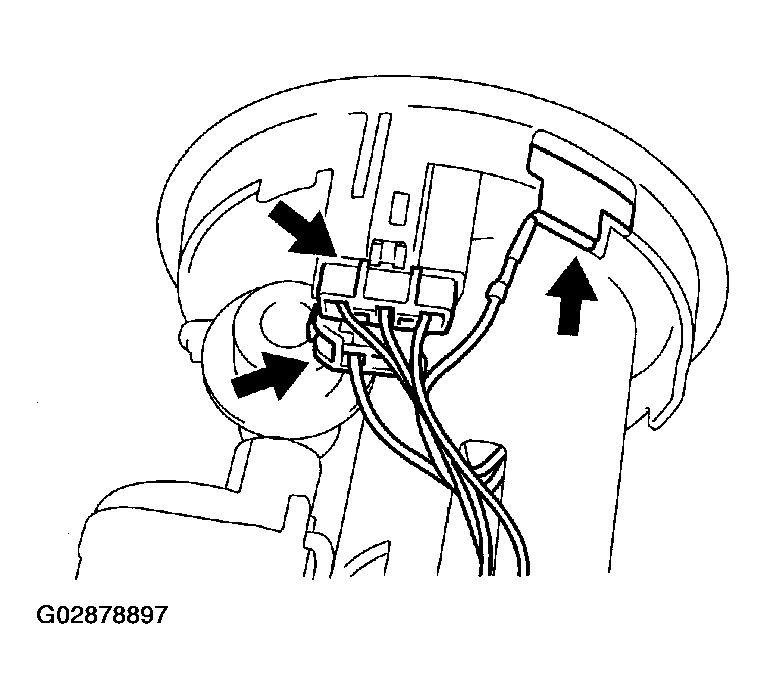

DISCONNECT FUEL PUMP CONNECTOR
DISCONNECT GROUND PLATE
DISCONNECT FUEL SENDER GAUGE CONNECTOR

Fig 1: Disconnecting Fuel Pump Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

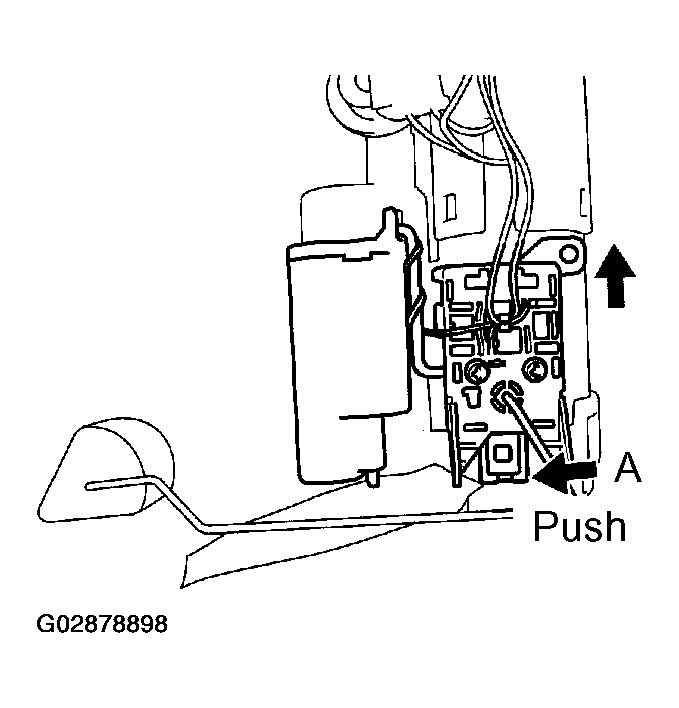

REMOVE FUEL SENDER GAUGE
Push down the portion of A with a finger, and push up the sender gauge.

NOTE: Be careful that the arm of the sender gauge should not bend.

Fig 2: Removing Fuel Sender Gauge
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

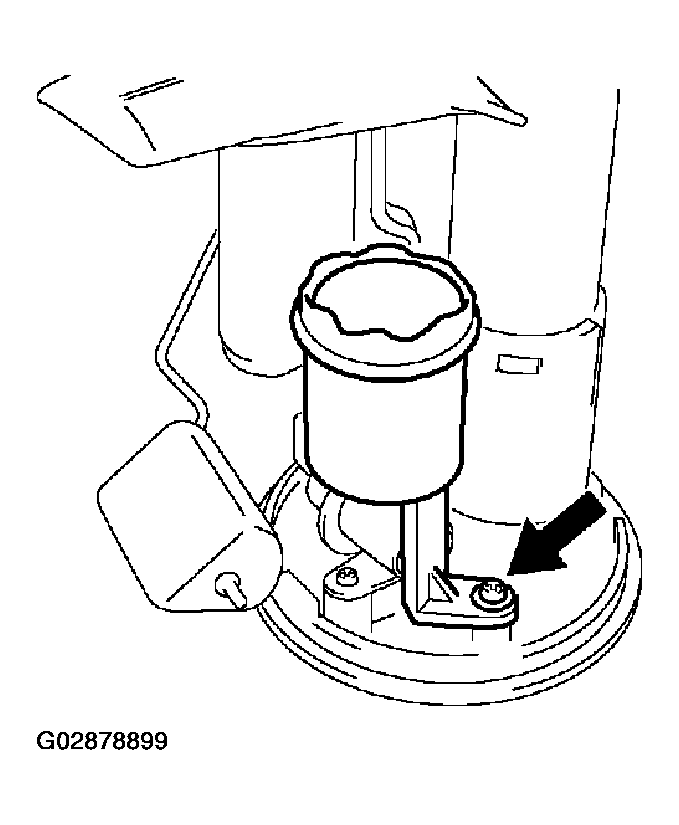

REMOVE FUEL FILTER
1. Remove the screw, and pull out the fuel filter.
2. Remove the O-ring from the fuel filter.
HINT:

At the time of installation, please refer to the following items. Install the pump filter with a new clip.

Fig 3: Removing Fuel Filter
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

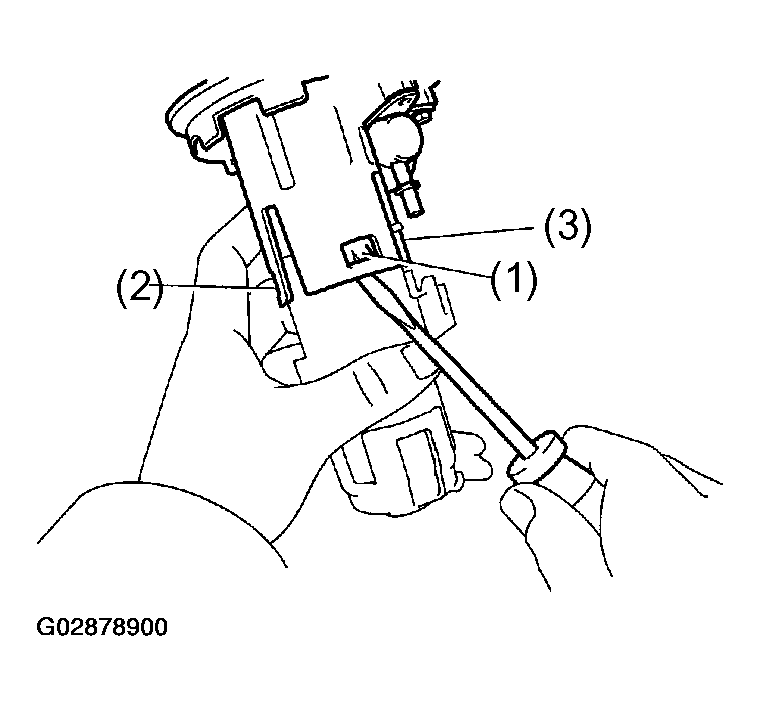

REMOVE FUEL PUMP FLANGE
Using a screwdriver, remove the snap fit portion in the order of 1, 2 and 3 as shown in Fig 4 .

HINT:

At the time of installation, please refer to the following items. Apply a light coat of gasoline to a new O-ring, and install it to the fuel filter.

Fig 4: Removing Fuel Pump Flange
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

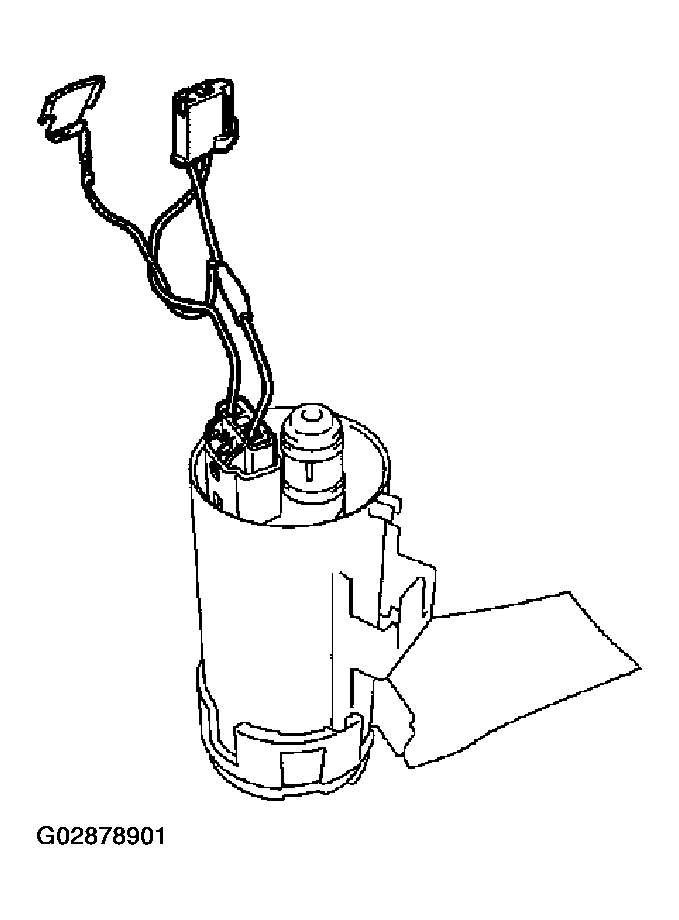

REMOVE FUEL PUMP LEAD WIRE

Fig 5: Removing Fuel Pump Lead Wire
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

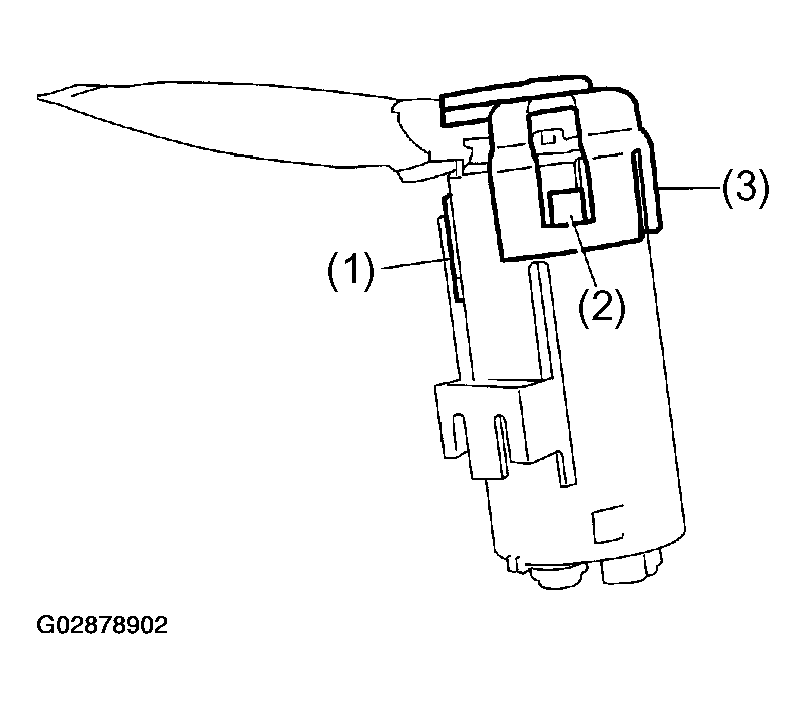

REMOVE "C" BRACKET, RUBBER CUSHION AND FUEL PUMP
Using a screwdriver, remove the snap fit portion in the order of 1, 2 and 3 as shown in Fig 6 .

Fig 6: Removing Bracket, Rubber Cushion And Fuel Pump
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

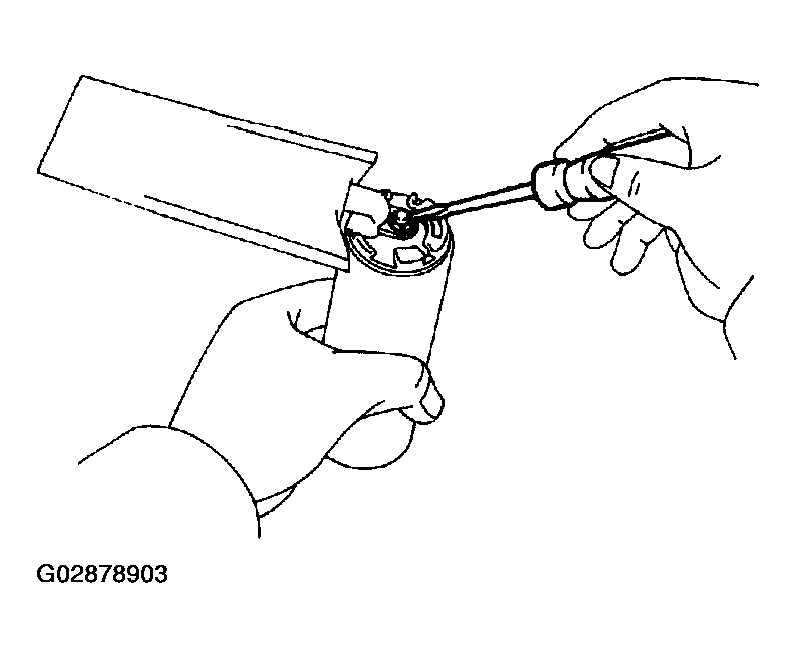

REMOVE FUEL PUMP FILTER FROM FUEL PUMP
1. Using a small screwdriver, remove the clip.
2. Pull out the pump filter.
HINT:

At the time of installation, please refer to the following items. Install the pump filter with a new clip.

Fig 7: Removing Clip
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
