SFI System: Injector: Removal

REMOVE V-BANK COVER
1. Using a 5 mm hexagon wrench, remove the 3 cap nuts.
2. Loosen the V-bank cover fastener counterclockwise.
3. Remove the V-bank cover.
REMOVE AIR CLEANER HOSE WITH RESONATOR
REMOVE AIR INTAKE CHAMBER ASSEMBLY (See REMOVAL )

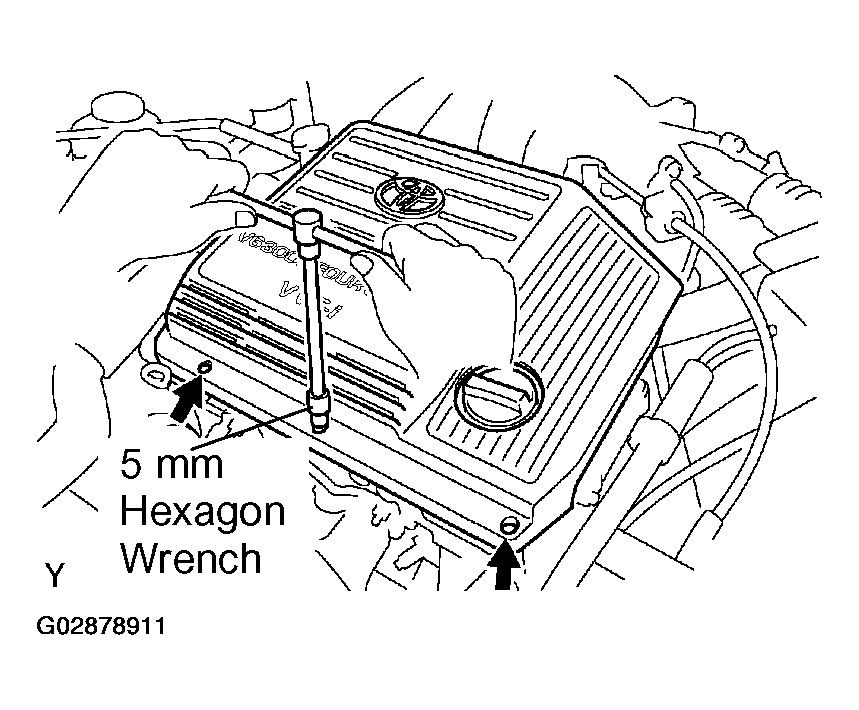

Fig 1: Removing V-Bank Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT INJECTOR CONNECTORS

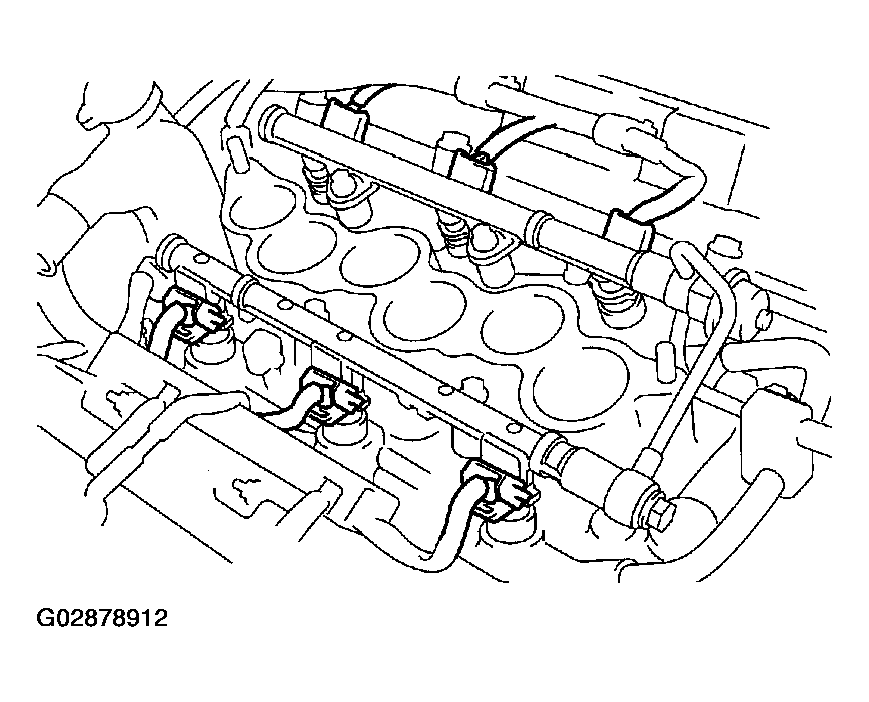

Fig 2: Disconnecting Injector Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AIR ASSIST HOSES AND PIPE

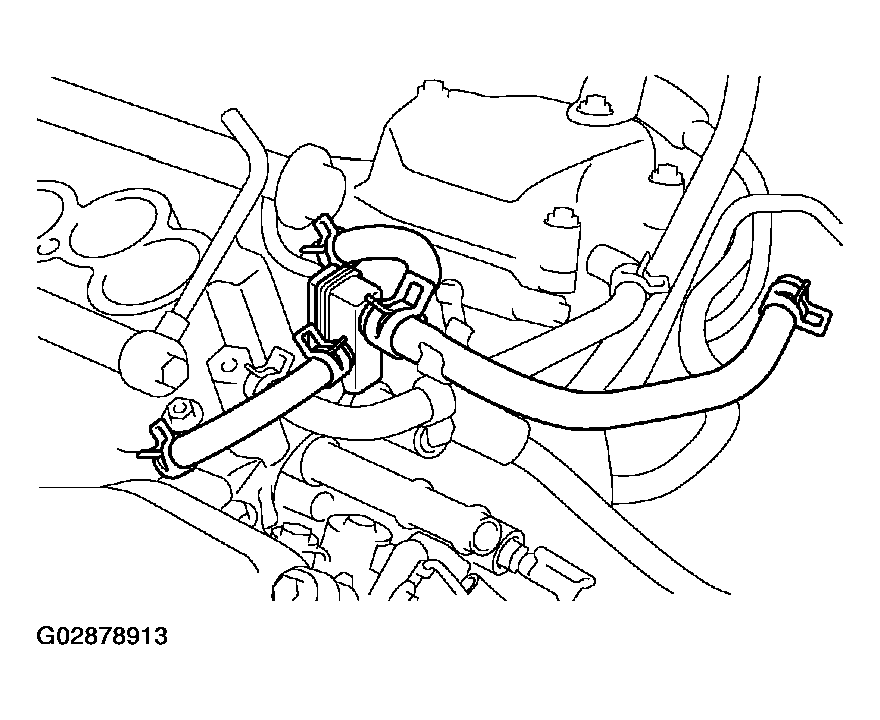

Fig 3: Removing Air Assist Hoses And Pipe
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT NO.1 FUEL PIPE
1. Remove the fuel hose clamp.

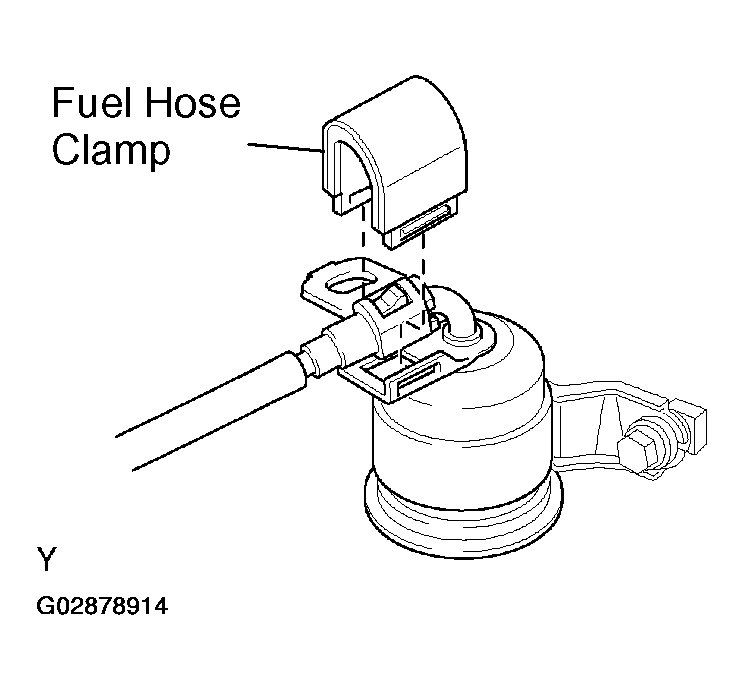

  Fig 4: Removing Fuel Hose Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the No.1 fuel pipe (fuel tube connector) from the fuel filter outlet.
CAUTION:
- Perform disconnecting operations of the fuel tube connector (quick type) after observing the precautions (See PRECAUTION ).
- As there is retained pressure in the fuel pipe line, prevent it from splashing inside the engine compartment.

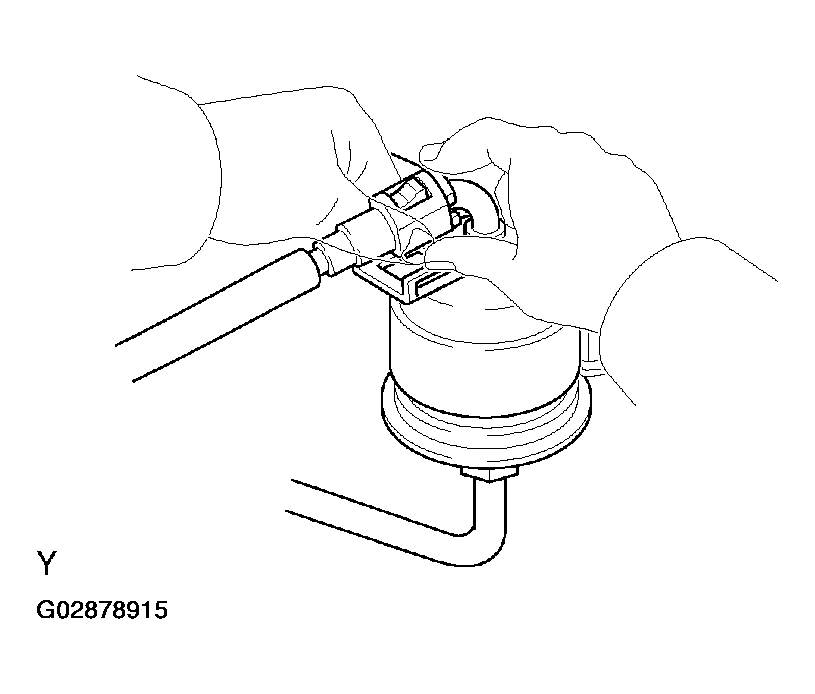

Fig 5: Disconnecting No.1 Fuel Pipe
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DELIVERY PIPES AND INJECTORS
NOTE:
- Be careful not to drop the injectors when removing the delivery pipes.
- Pay attention to put any hung load on the injector to and from the side direction.
1. Remove the 5 bolts and delivery pipes together with the 6 injectors and No.1 fuel pipe.
2. Remove the 4 spacers from the intake manifold.
3. Pull out the 6 injectors from the delivery pipes.
4. Remove the 2 O-rings and 2 grommets from each injector.

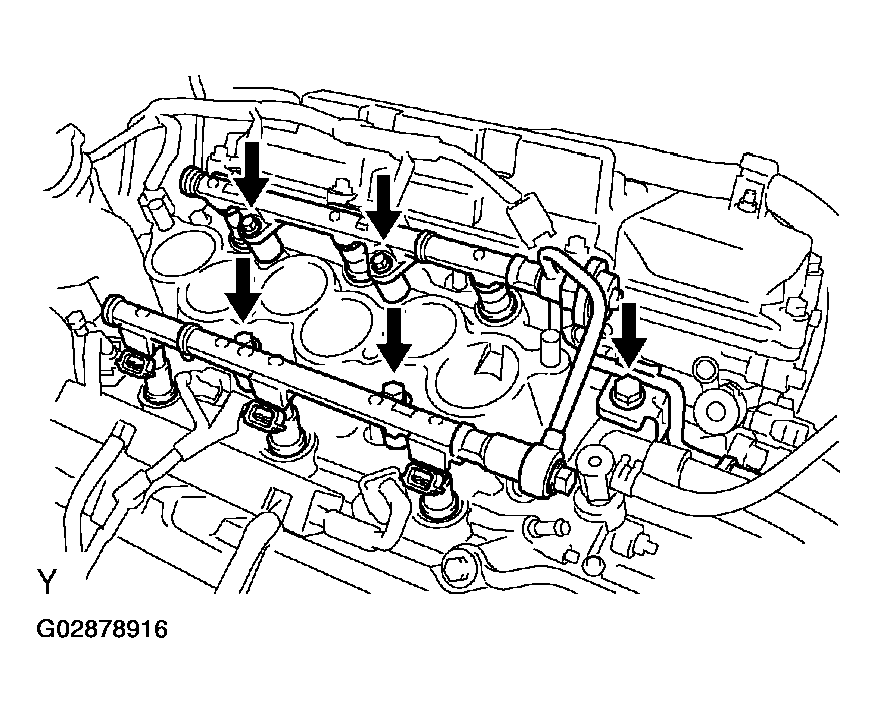

Fig 6: Removing Delivery Pipes And Injectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
