VSV For Acoustic Control Induction System (ACIS): Inspection

1. Disconnect the 2 vacuum hoses from the VSV.
2. Remove the screw and VSV.

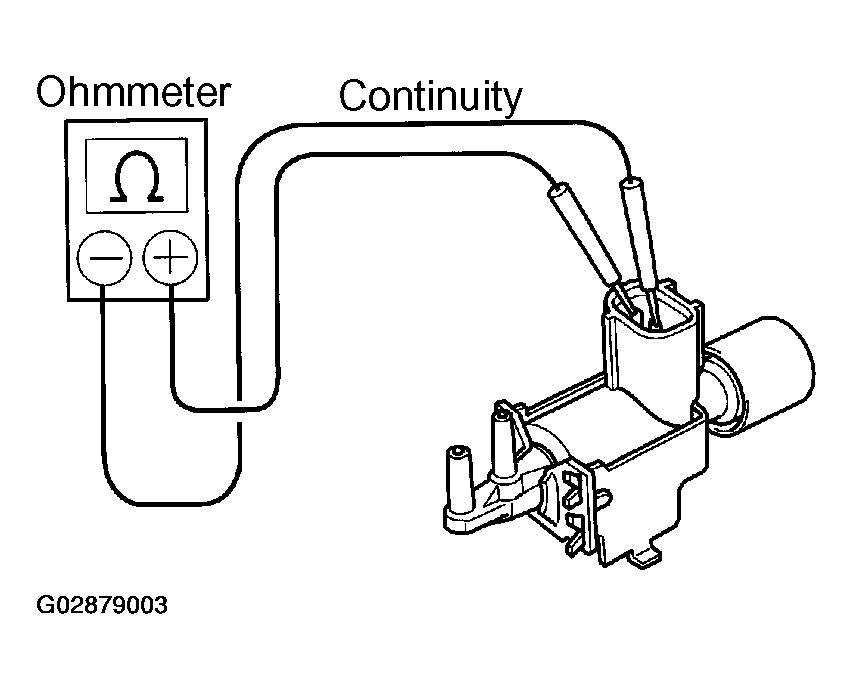

Using an ohmmeter, check that there is continuity between each terminals.

Resistance: 33 - 39 Ω at 20°C (68°F)

If there is no continuity, replace the VSV.

Fig 1: Inspecting VSV For Open Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

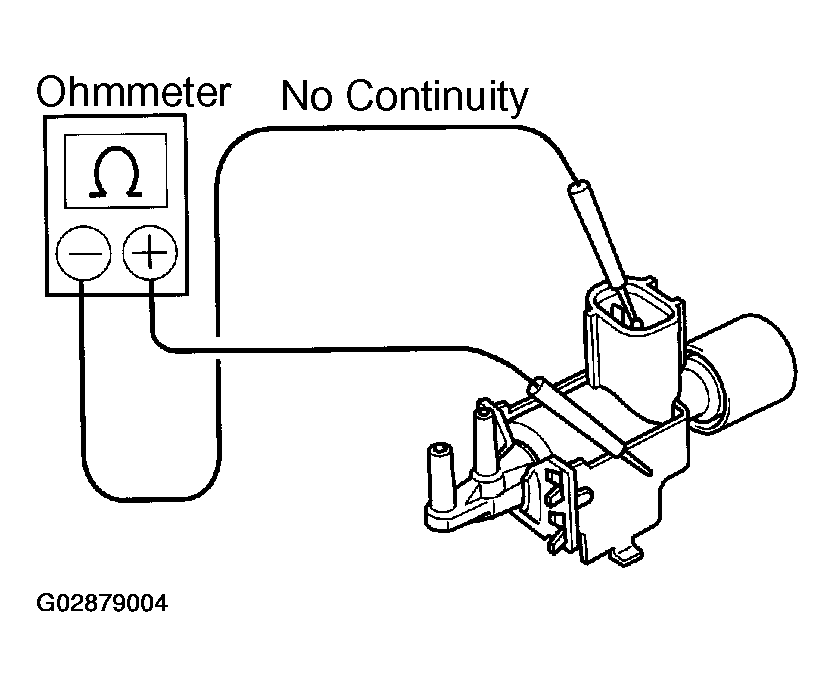

Using an ohmmeter, check that there is no continuity between each terminal and the body.

If there is continuity, replace the VSV.

Fig 2: Inspecting VSV For Ground

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

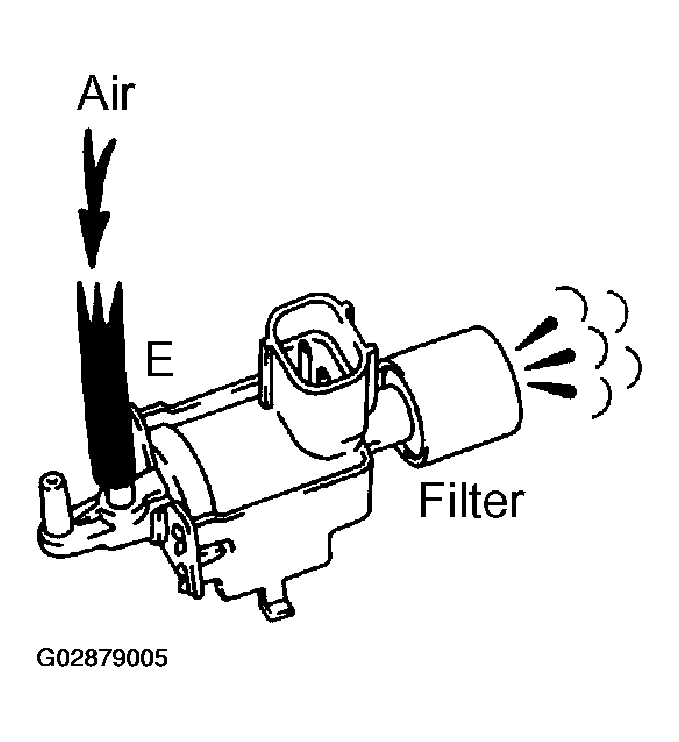

1. Check that air flows from port E to the filter.
   Fig 3: Inspecting VSV Operation

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

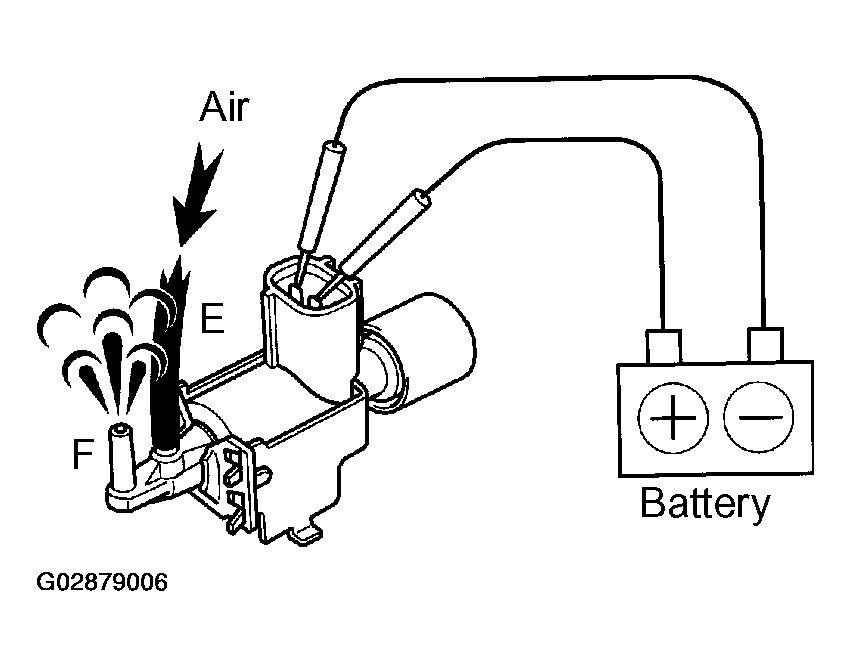

2. Apply battery voltage across the terminals.
3. Check that air flows from port E to port F.

If operation is not as specified, replace the VSV.

1. Install the VSV with the screw.
2. Connect the 2 vacuum to the VSV.

Fig 4: Checking That Air Flows From Port E To Port F

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
