Crankshaft Position Sensor: Replacement

  1. REMOVE RH FENDER APRON SEAL
  2. REMOVE CRANKSHAFT POSITION SENSOR
    1. Disconnect the crankshaft position sensor connector.
    2. Remove the bolt and crankshaft position sensor.
  3. REINSTALL NEW CRANKSHAFT POSITION SENSOR
    1. Install a new crankshaft position sensor with the bolt.

      Torque: 8 N.m (80 kgf.cm, 69 in.lbf)

    2. Connect the crankshaft position sensor connector.
  4. REINSTALL RH FENDER APRON SEAL

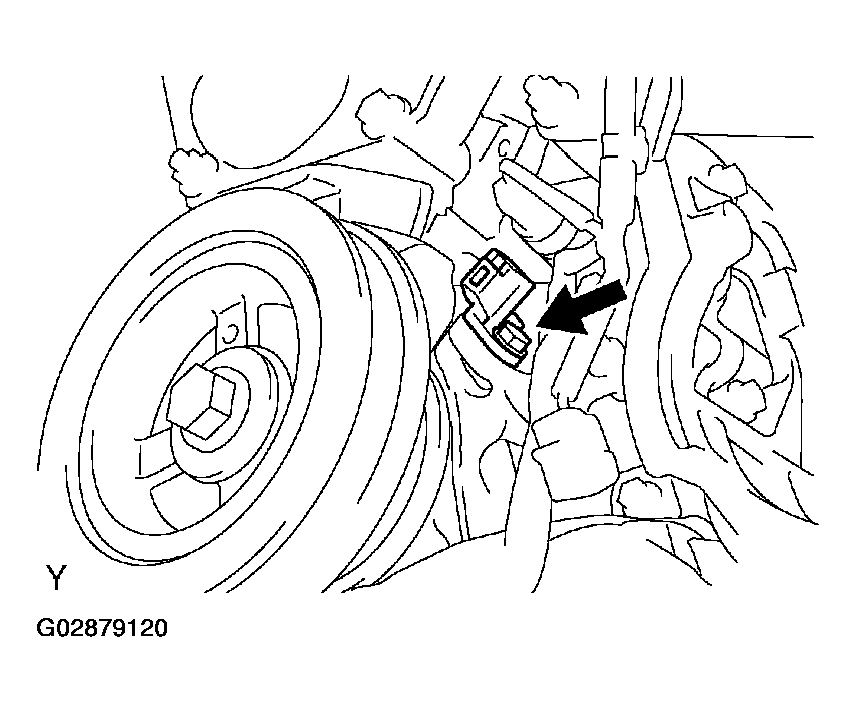

    Fig 1: Replacing Crankshaft Position Sensor
    G02879120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
