DTC P0335: Crankshaft Position Sensor "A" Circuit
>>
Monitor Strategy
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Monitor Strategy

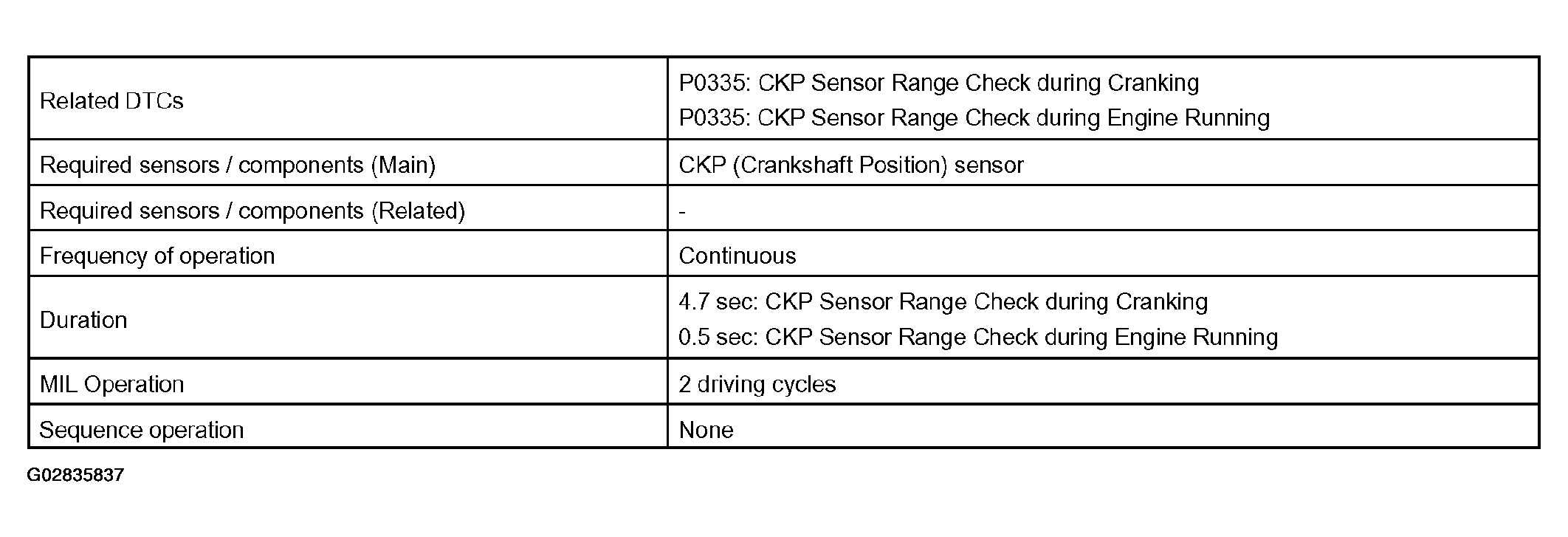

Fig 1: Monitor Strategy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
