How To Proceed With Troubleshooting

Troubleshoot in accordance with the following procedures.

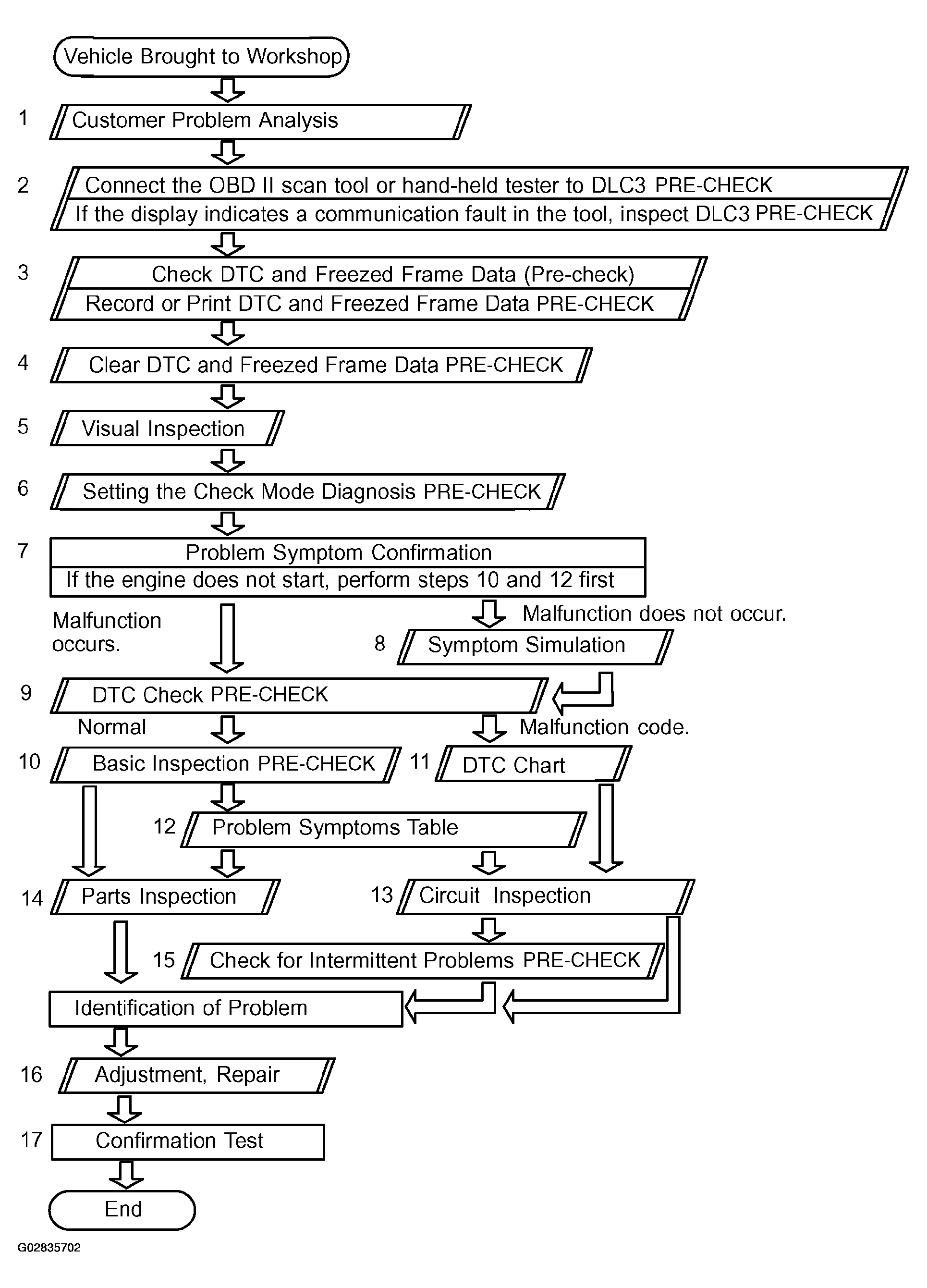

Fig 1: Troubleshooting Flow Chart
G02835702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
