Terminals Of ECM

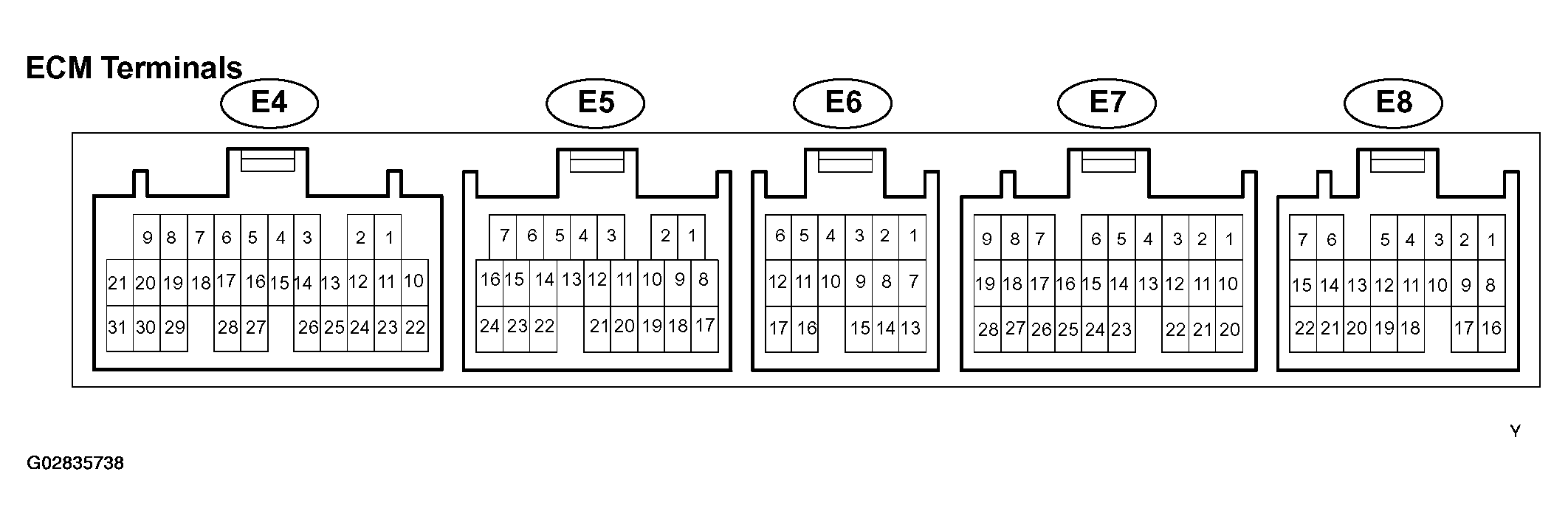

Fig 1: Identifying Terminals Of ECM

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Each ECM terminal's standard normal voltage is shown in the table below.

In the table, first follow the information under "Condition". Look under "Symbol (Terminal No.)" for the terminals to be inspected. The standard normal voltage between the terminals is shown under "Specific Condition".

Use the illustration above as a reference for the ECM terminals.

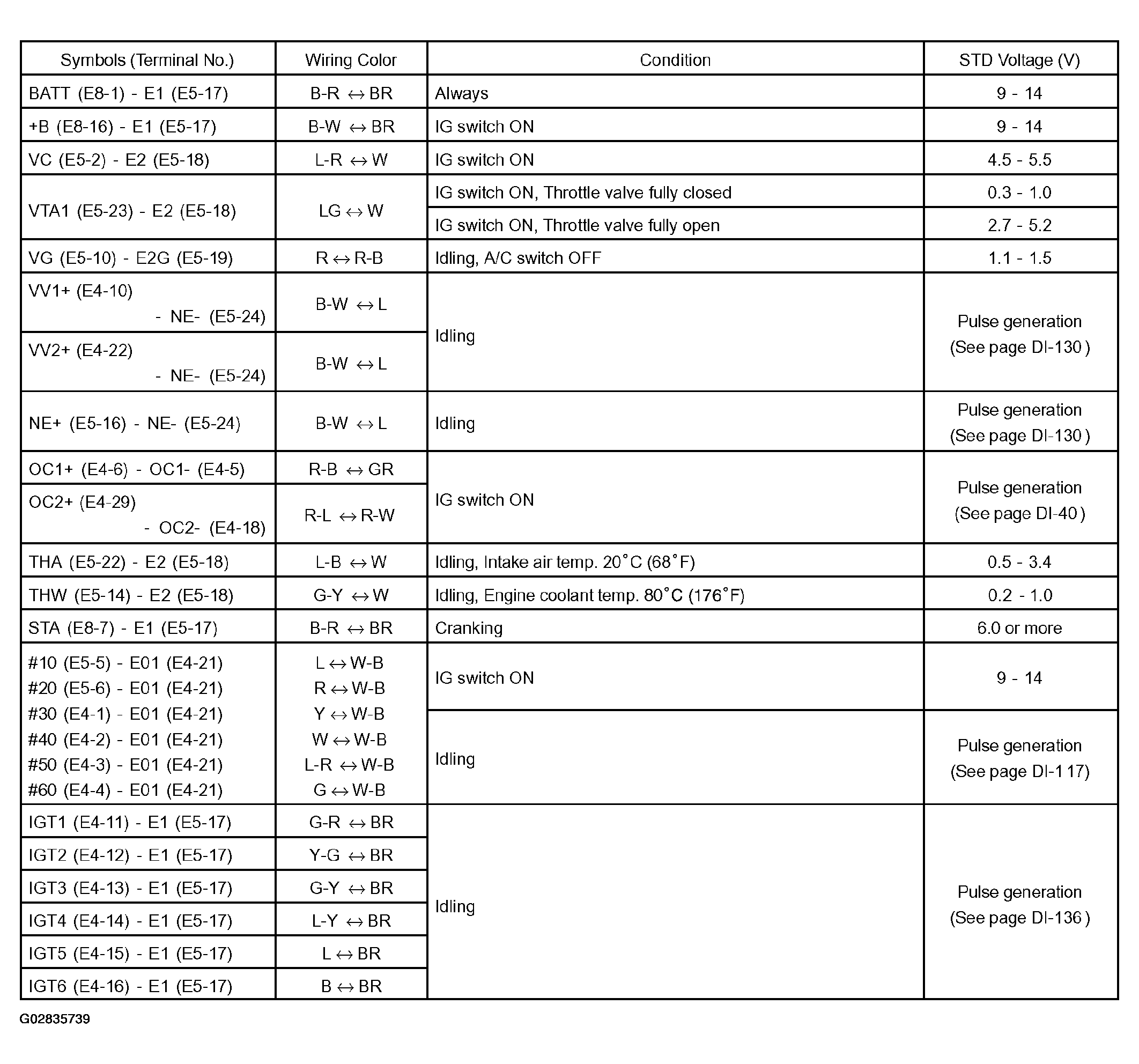

Fig 2: Wiring Color Chart (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

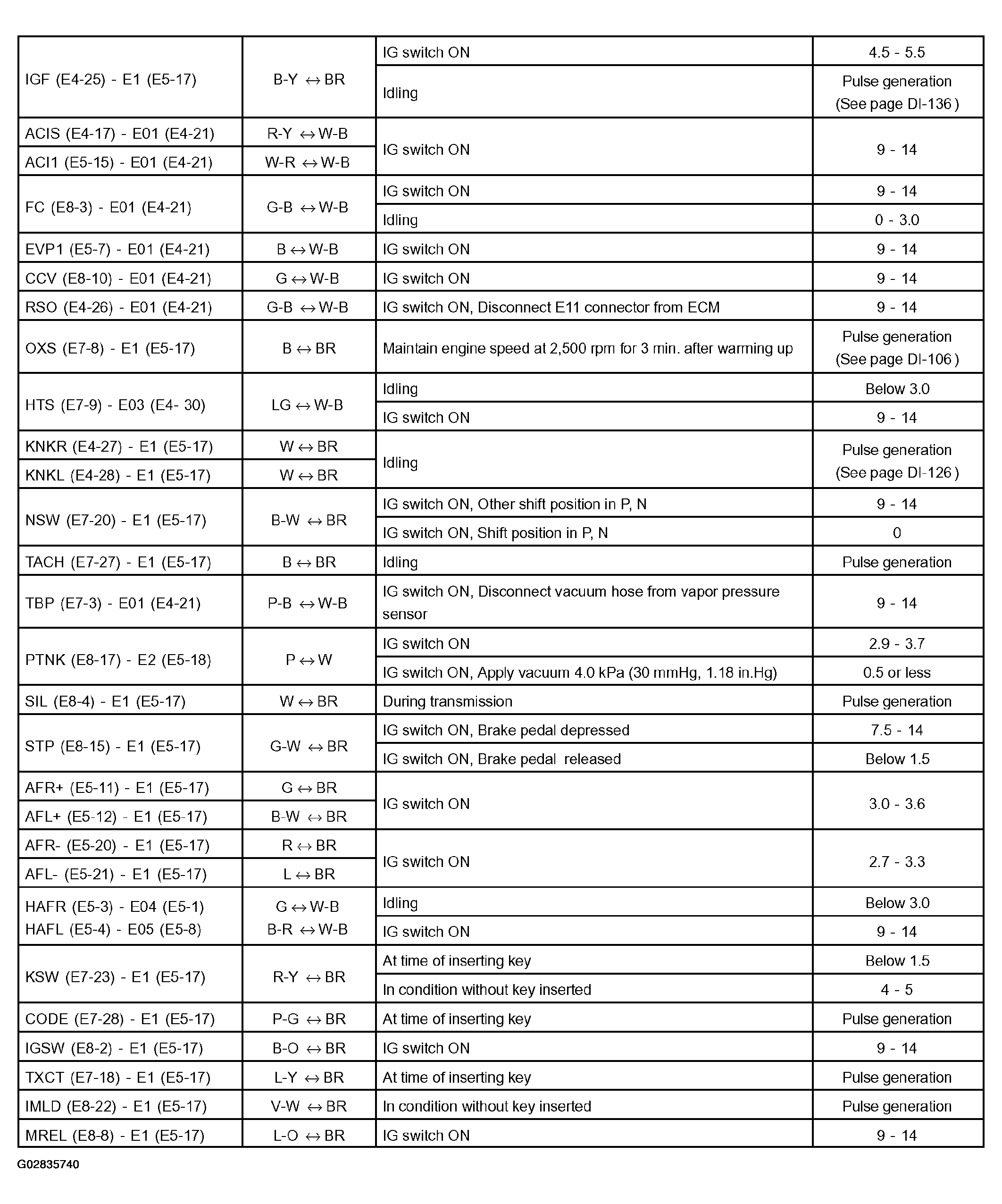

Fig 3: Wiring Color Chart (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
