Vehicle Lift And Support Locations

WARNING: This page is about a different car, the 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Notice about vehicle condition when jacking up:
    1. As a rule, the vehicle must be unloaded when jacking up. Never jack up or lift up the vehicle loaded with heavy weight.
    2. When removing any parts of heavy weight like the engine and transmission, the center of gravity of the vehicle moves. Place a balance weight so as to keep it from rolling, or hold the jacking support location using the mission jack.
  2. Notice for using 4 post lift:
    1. Follow the instruction manual for safe operation.
    2. Do not damage tires or wheels with a free wheel beam.
    3. Using a wheel stopper, fix the vehicle.
  3. Notice for using jack and safety stand:
    1. Work in the flat place using a wheel stopper at all times.
    2. Use a safety stand with a rubber attachment, as shown in the illustration. See Fig 1.

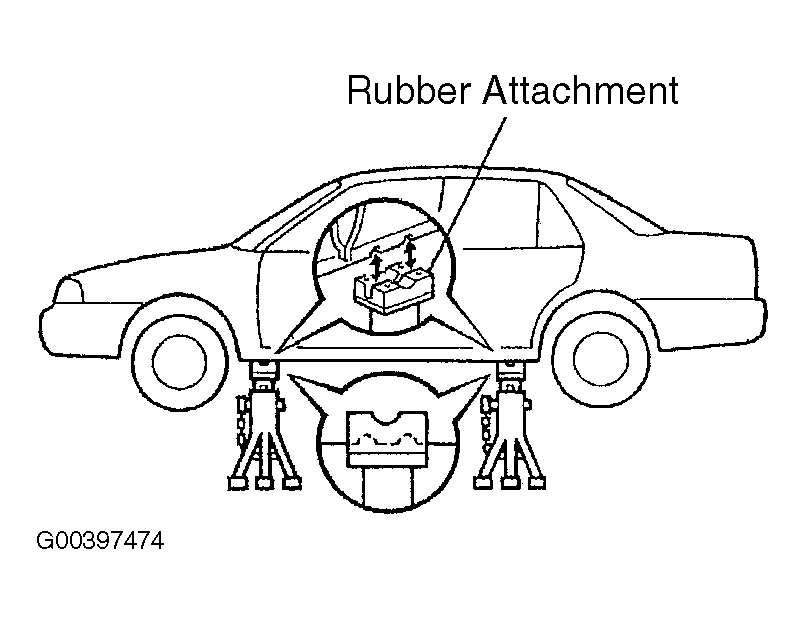

      Fig 1: Using Jack Stands Safely
      G00397474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Support the specified location with the jack and safety stand accurately.
    4. When jacking up the front wheels, release the parking brake and place wheel stoppers only behind the rear wheels. When jacking up the rear wheels, place wheel stoppers only in front of the front wheels.
    5. Do not work or leave the vehicle supported only by a jack. Be sure to support the vehicle with the safety stand
    6. When jacking up only the front wheels or only the rear wheels, place wheel stoppers to both sides of the wheels.
    7. When jacking down the vehicle with its front wheels jacked up, release the parking brake and place wheels stoppers only in front of the rear wheels. When jacking down the vehicle with its rear wheels jacked up, place wheel stoppers only behind the front wheels.

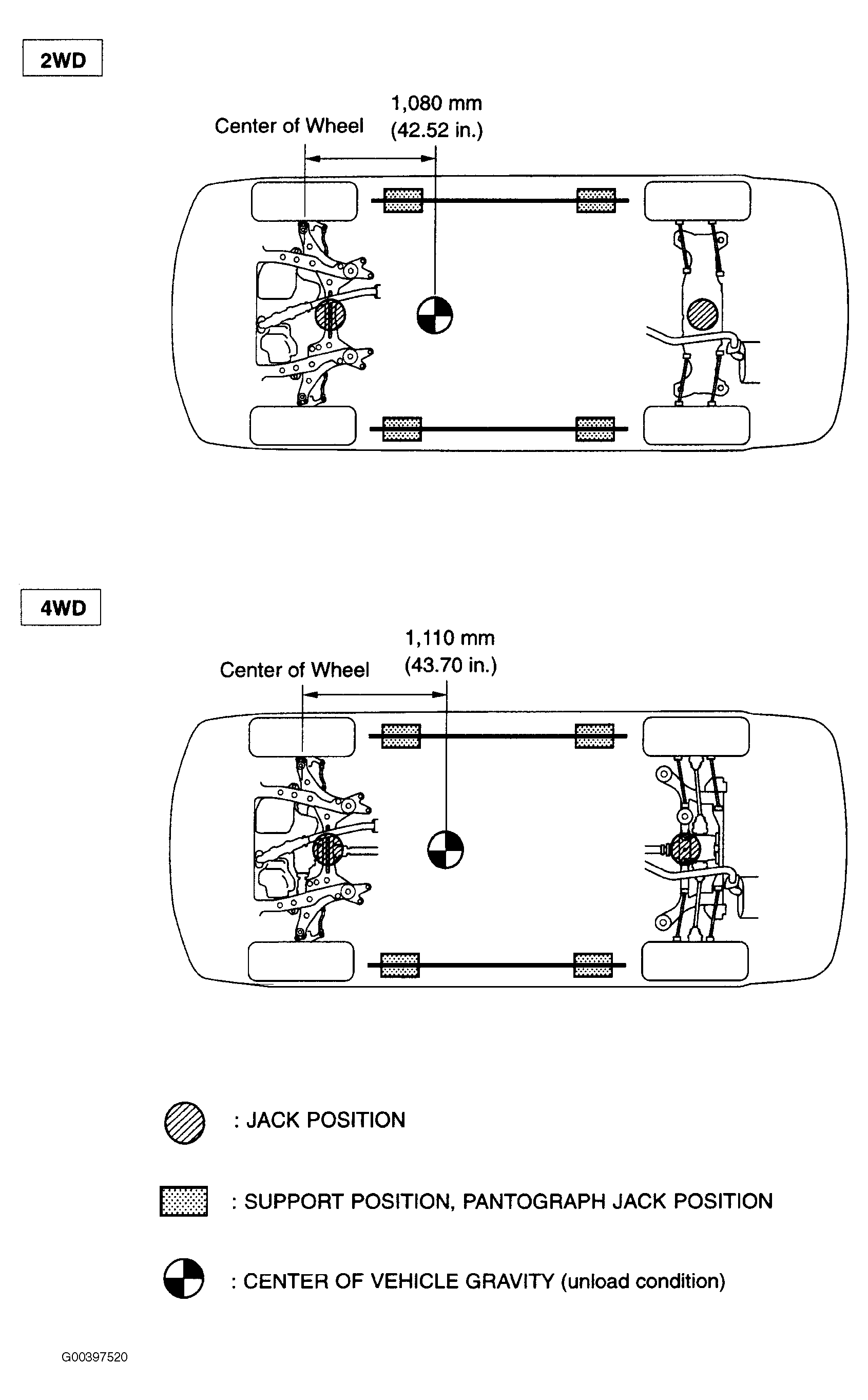

      Fig 2: Locating Proper Jack Stand Placement
      G00397520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Notice for using swing arm type lift:
    1. Follow the instruction manual of the lift for a safety operation.
    2. Use a cradle with a rubber attachment, as shown in the illustration. See Fig 3.

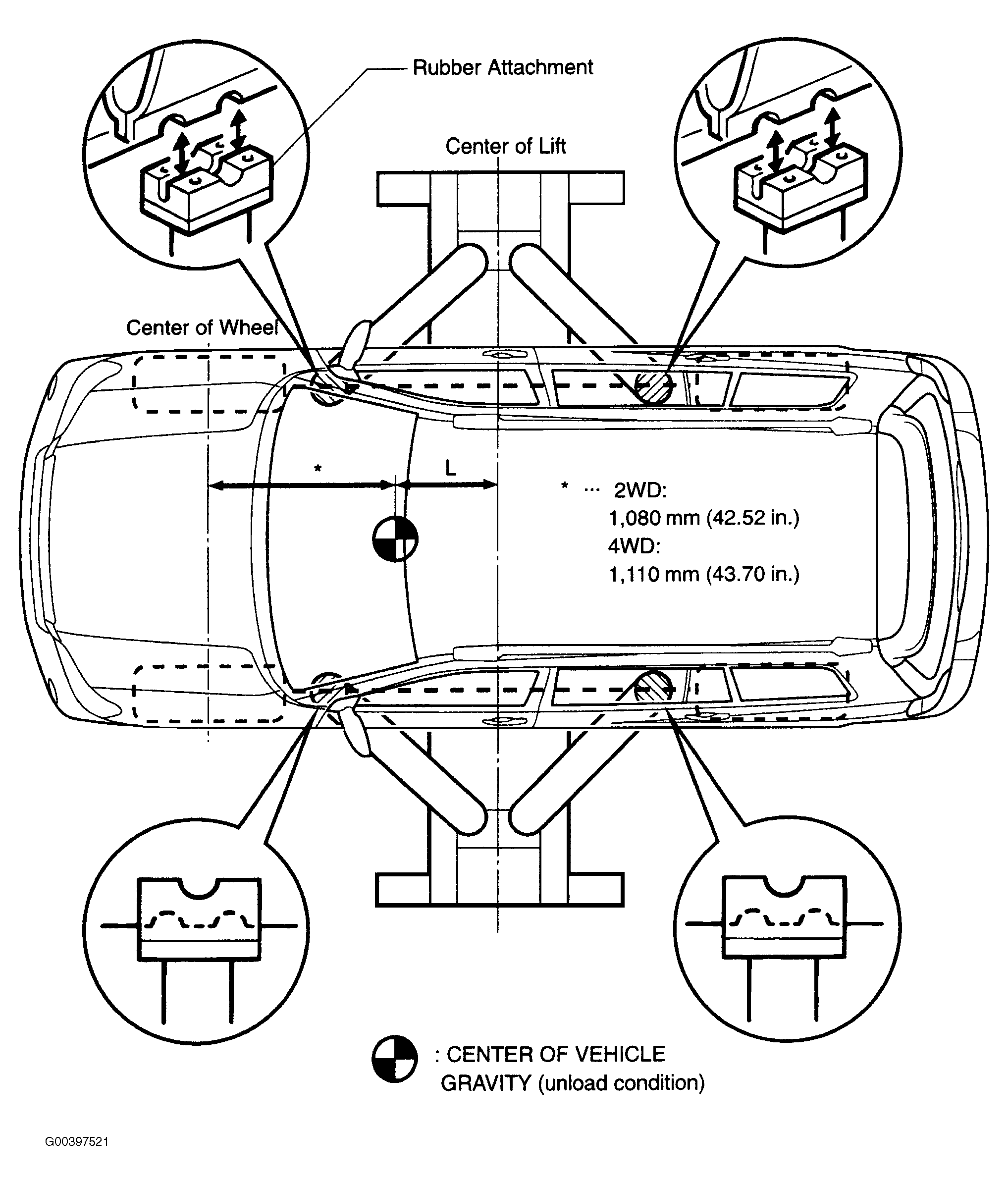

      Fig 3: Using Swing Arm Type Lifts
      G00397521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Set in the vehicle so as to make its center of gravity as closer as the center of the lift. ("L" becomes short).
    4. Make the vehicle horizontal by adjusting the height of the cradle, and match the groove of the cradle and the safety stand support location accurately.
    5. Be sure to lock the swing arm during the operation.
    6. Lift the vehicle up until the tires float and shake the vehicle to make sure that the vehicle is stable.
  5. Notice for using plate type lift:
    1. Follow the instruction manual of the lift for a safety operation.
    2. Use a plate lift attachment.
    3. Be sure to set the vehicle to the specified position.
    4. Lift the vehicle up until the tires float a bit and shake the vehicle to make sure that the vehicle is stable.

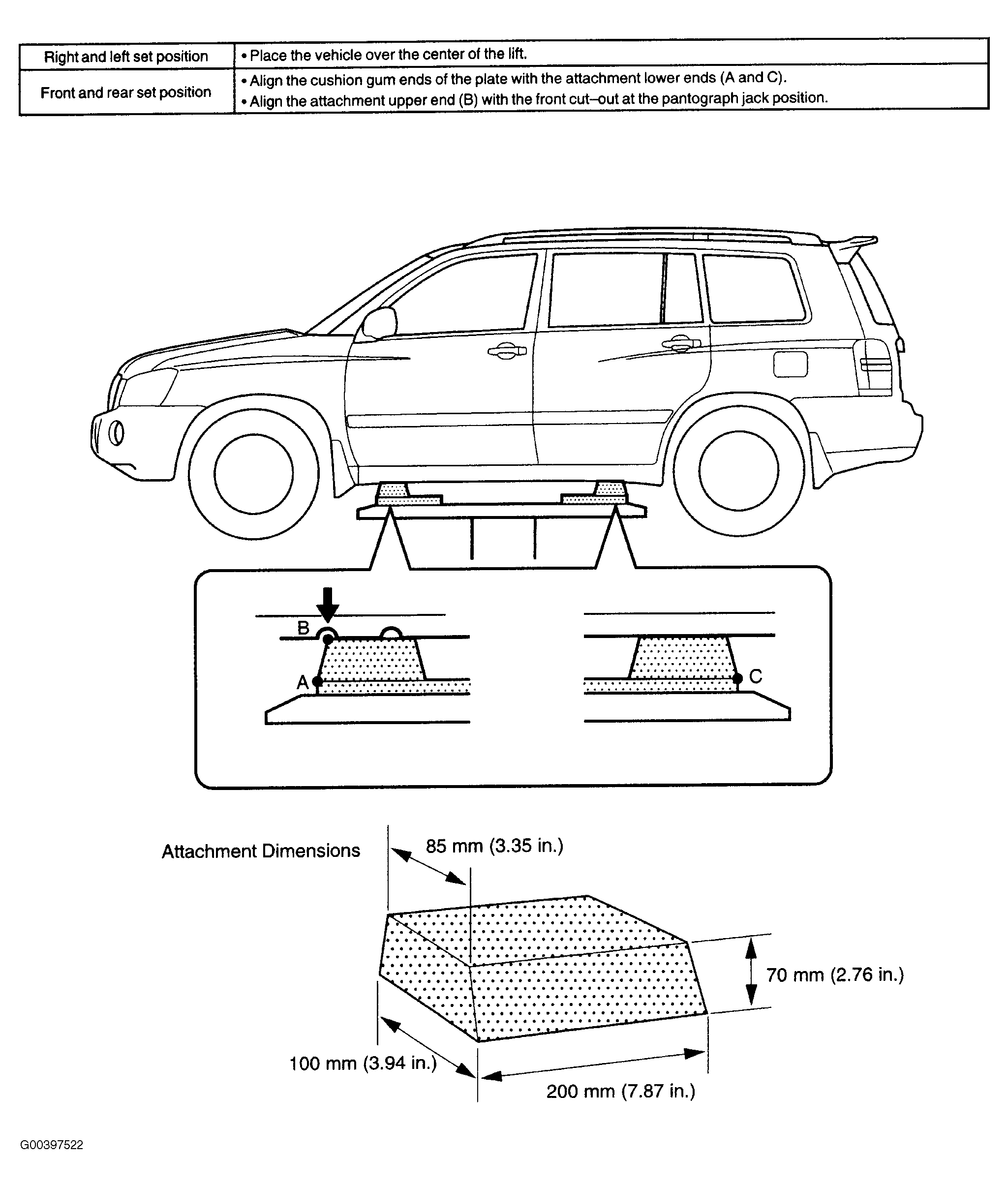

      Fig 4: Using Plate Type Lifts
      G00397522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
