How To Troubleshoot Ecu Controlled Systems: Procedure

• For troubleshooting, diagnostic trouble code (DTC) charts or problem symptom table are provided for each circuit with detailed inspection procedures in this information.
  Fig 1: Checking Wire Harness And Connector (1 Of 2)

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
• When component parts, wire harnesses and connectors of each circuit are found to be normal in troubleshooting, the problem is most likely in the ECU. Accordingly, if diagnosis is performed without the problem symptoms occurring, refer to Step  8 to replace the ECU. Always confirm that the problem symptoms are occurring, or proceed with inspection while using the symptom simulation method.
• The instructions "Check wire harness and connector" and "Check and replace ECU" which appear in the inspection procedure are common and applicable to all DTCs. Follow the procedure outlined below whenever these instructions appear.
  Fig 2: Checking Wire Harness And Connector (2 Of 2)

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OPEN CIRCUIT:

An open circuit the result of a disconnected wire harness, a faulty contact in the connector, a connector terminal pulled out, etc.

Fig 3: Disconnecting Wire Harness Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

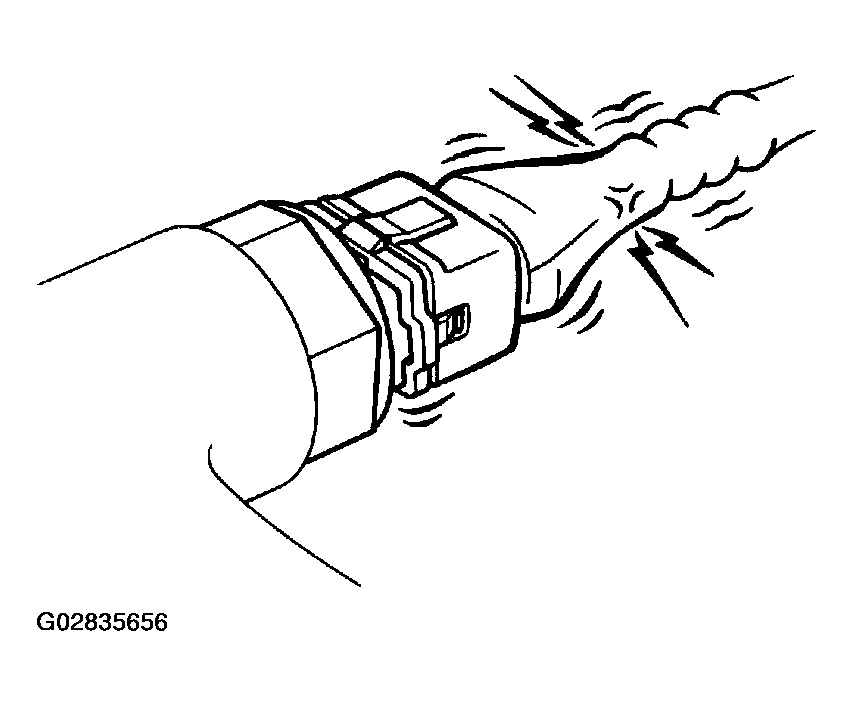

• A wire is rarely broken in its middle. Most problem occur at the wire ends. Carefully check the connectors of sensors and actuators.

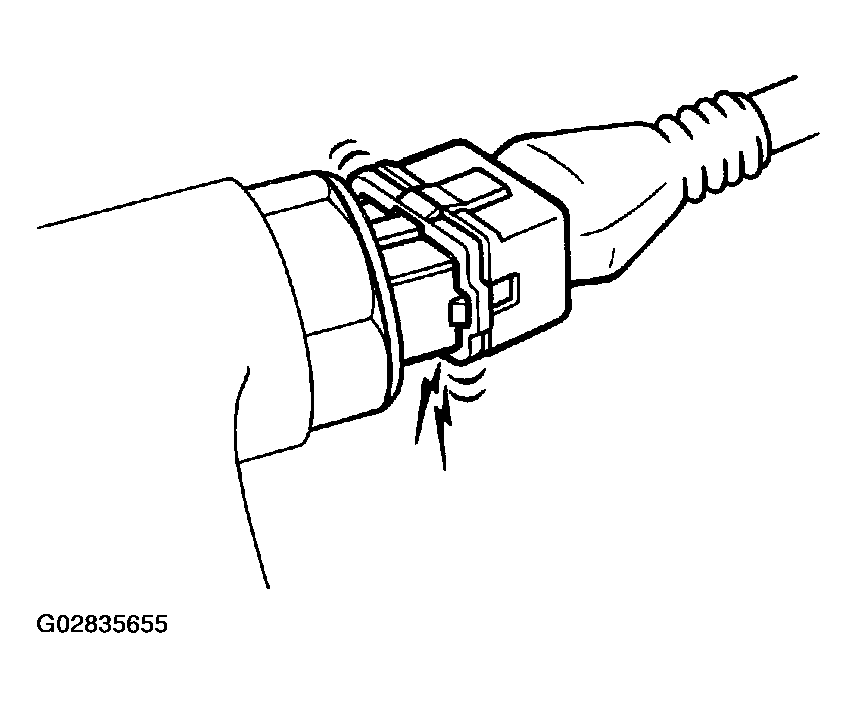

• Faulty contacts could be due to the rusting, contamination, and/or deformation of connector terminals. In some cases: 1) simply disconnecting and reconnecting the connectors will fix the problem, or 2) even though no abnormality is found in the wire harness or connector, the problem disappears after the check (meaning the cause was most likely in the wire harness or connectors).

SHORT CIRCUIT:

A short circuit could be the result of contact between the wire harness and the body ground or a short circuiting switch.

HINT:

When there is a short circuit between the wire harness and body ground, check thoroughly if wire harness is caught in the body or is clamped properly.

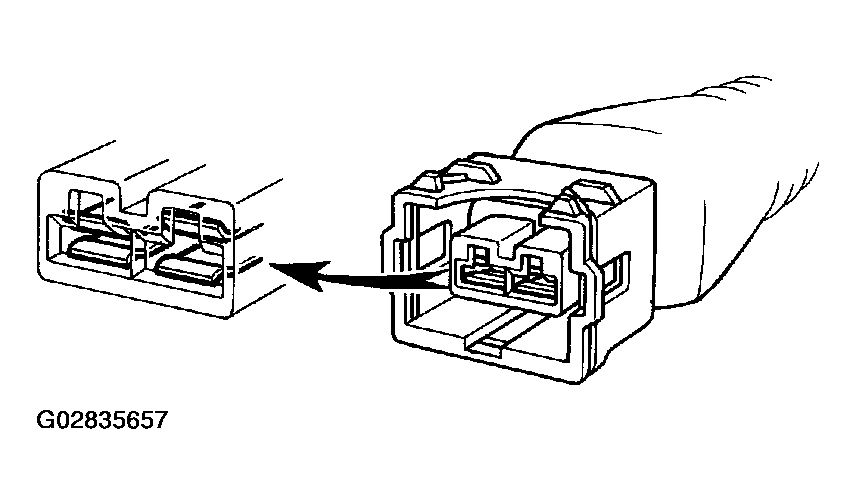

When inserting tester probes into a connector, insert them from the rear of the connector. When necessary, use mini test leads. For water resistant connectors which cannot be accessed from behind, take good care not to deform the connector terminals.

Fig 4: Identifying Correct Way Of Handling Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

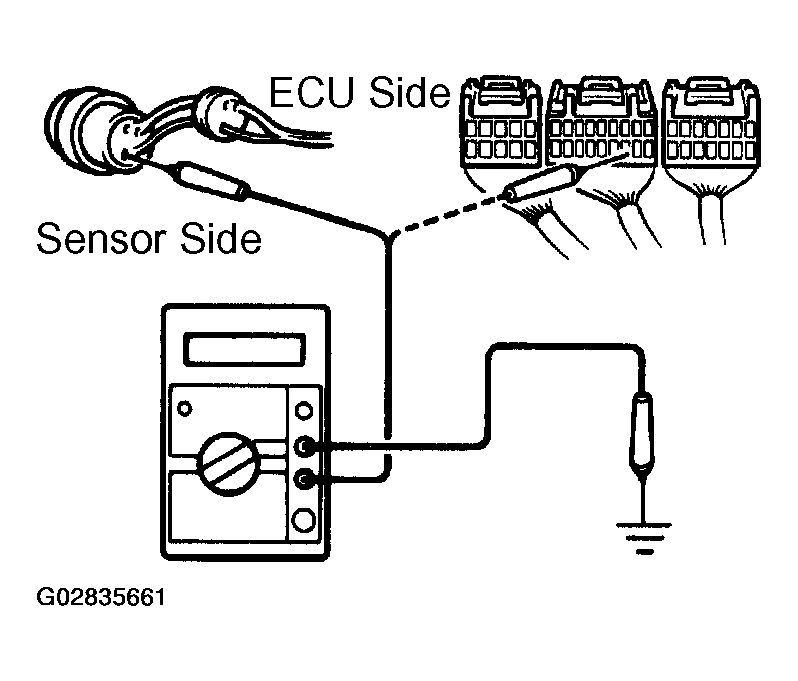

1. Disconnect the connectors at both ECU and sensor sides.
2. Measure the resistance between the applicable terminals of the connectors.

   Resistance: Below 1 Ω

HINT:

Measure the resistance while lightly shaking the wire harness vertically and horizontally.

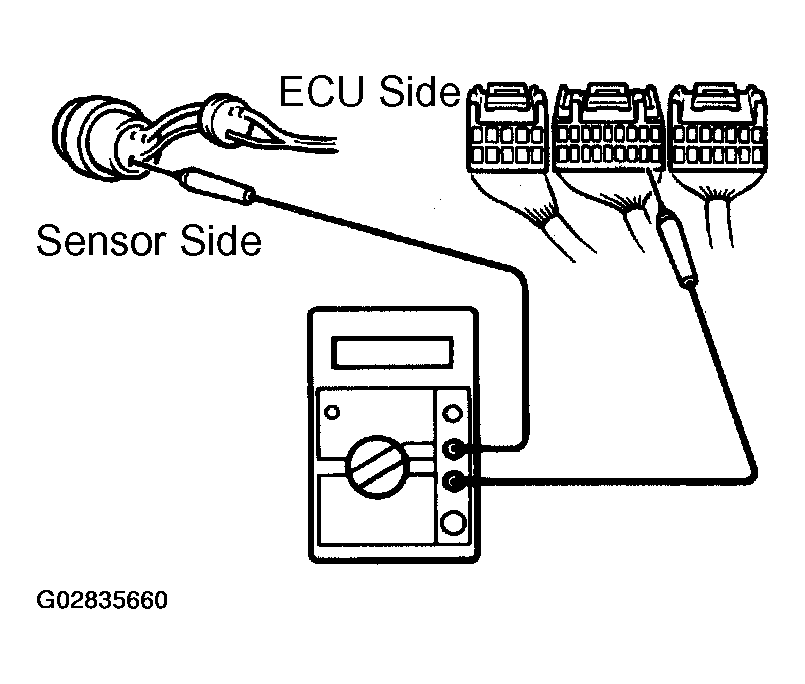

Fig 5: Checking Continuity (Open Circuit Check) (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Checking Continuity (Open Circuit Check) (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

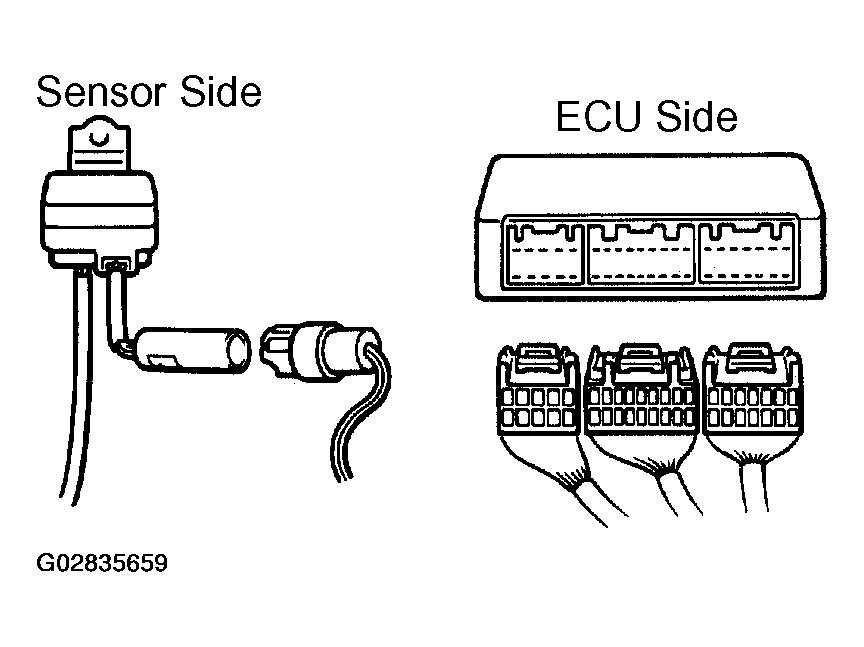

1. Disconnect the connectors on both ends.
2. Measure the resistance between the applicable terminals of the connectors and body ground. Be sure to carry out this check on the connectors on both ends.

   Resistance: 10 kΩ or higher

HINT:

Measure the resistance while lightly shaking the wire harness vertically and horizontally.

Fig 7: Checking Resistance (Short Circuit Check)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the connectors at both ends.
2. Check for rust or foreign material, etc. in the terminals of the connectors.

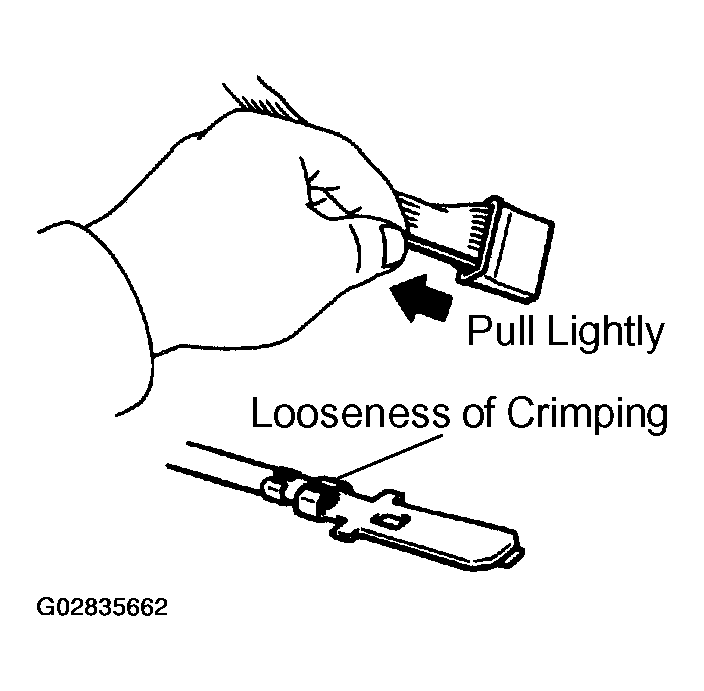

3. Check crimped portions for looseness or damage and check that the terminals are secured in the lock portion.

   HINT:

   The terminals should not come out when pulled lightly from the back.

   Fig 8: Checking Contact Pressure

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

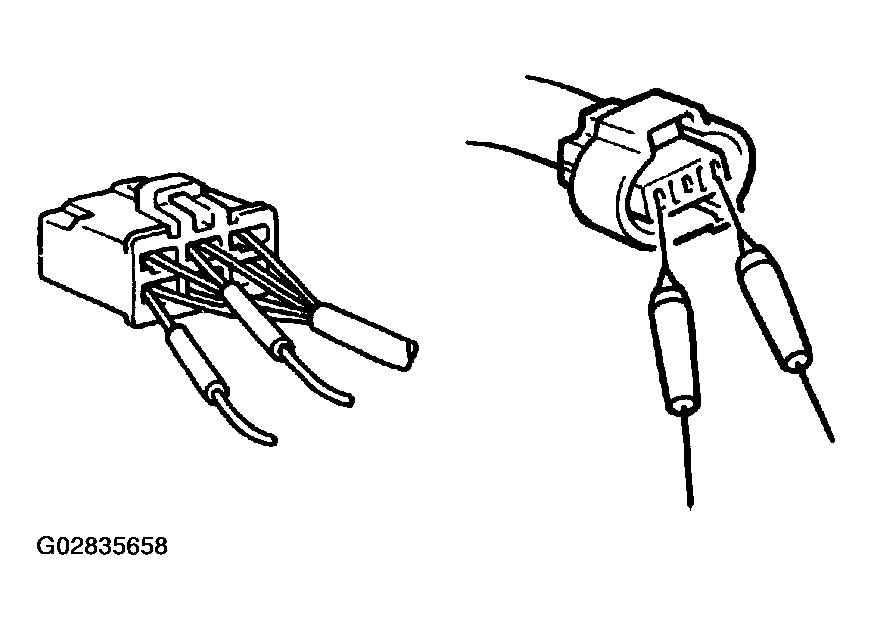

4. Prepare a test male terminal and insert it in the female terminal, then pull it out.

HINT:

If a test terminal is easier to pull out than others, there may be poor contact in that section.

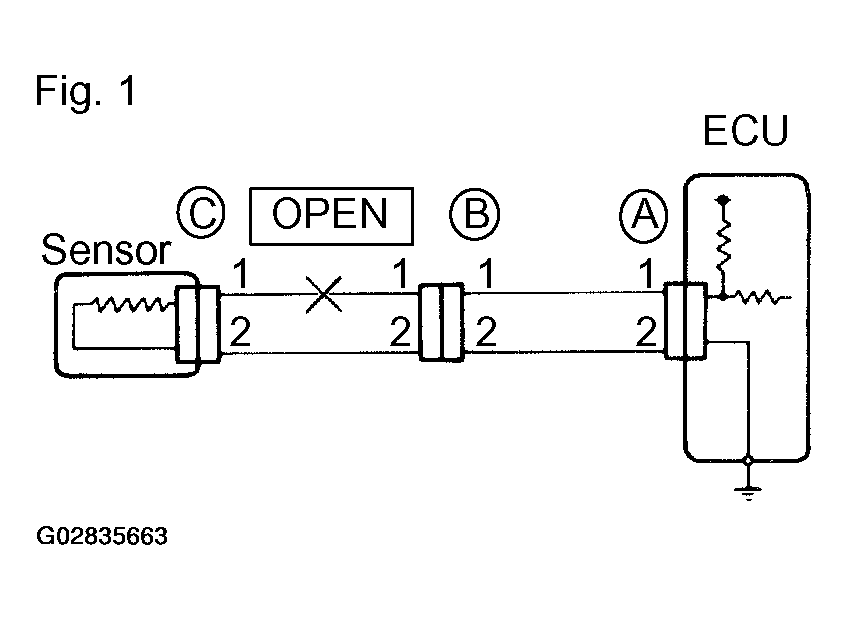

For the open circuit in the wire harness in Fig. 1Fig 9 , perform a continuity check (step (a) below) or a voltage check (step (b) below).

Fig 9: Checking Open Circuit (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check the continuity.
   1. Disconnect connectors A and C and measure the resistance between them.

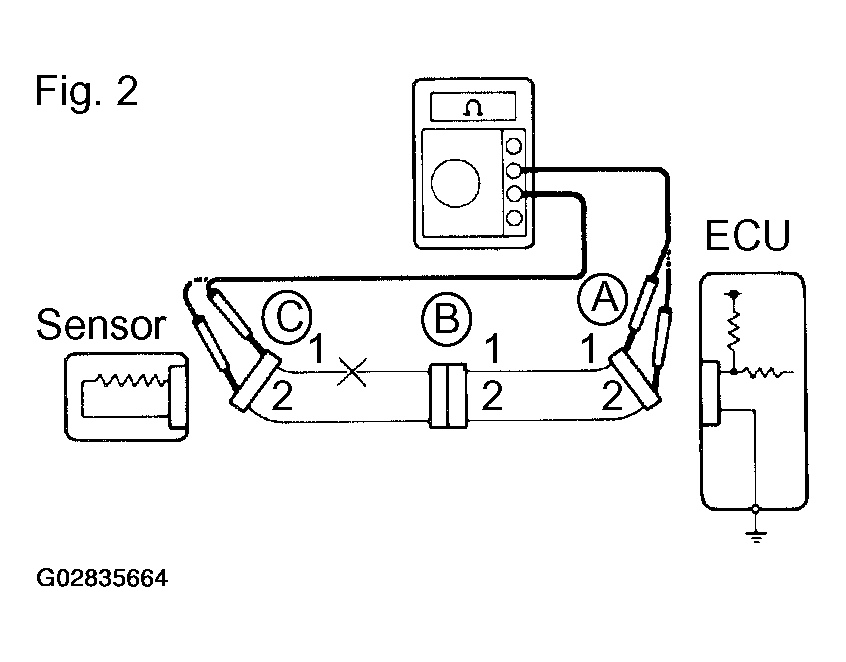

      In the case of Fig. 2Fig 10:

      Between terminal 1 of connector A and terminal 1 of connector C --> 10 kΩ or higher (open)

      Between terminal 2 of connector A and terminal 2 of connector C --> Below 1 Ω

      An open circuit exists in the wire harness between terminal 1 of A and terminal 1 of C.

      Fig 10: Checking Open Circuit (2 Of 4)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Disconnect connector B and measure the resistance between the connectors.

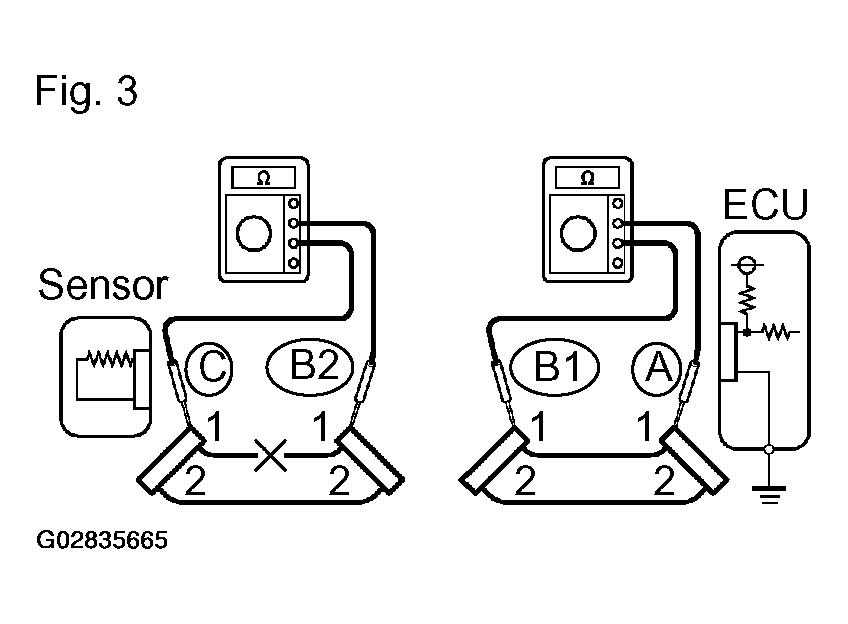

      In the case of Fig. 3Fig 11:

      Between terminal 1 of connector A and terminal 1 of connector B1 --> Below 1 Ω

      Between terminal 1 of connector B2 and terminal 1 of connector C --> 10 kΩ or higher (open)

      An open circuit exists in the wire harness between terminal 1 of B2 and terminal 1 of C.

      Fig 11: Checking Open Circuit (3 Of 4)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the voltage.

   In a circuit in which voltage is applied to the ECU connector terminal, an open circuit can be checked for by conducting a voltage check.

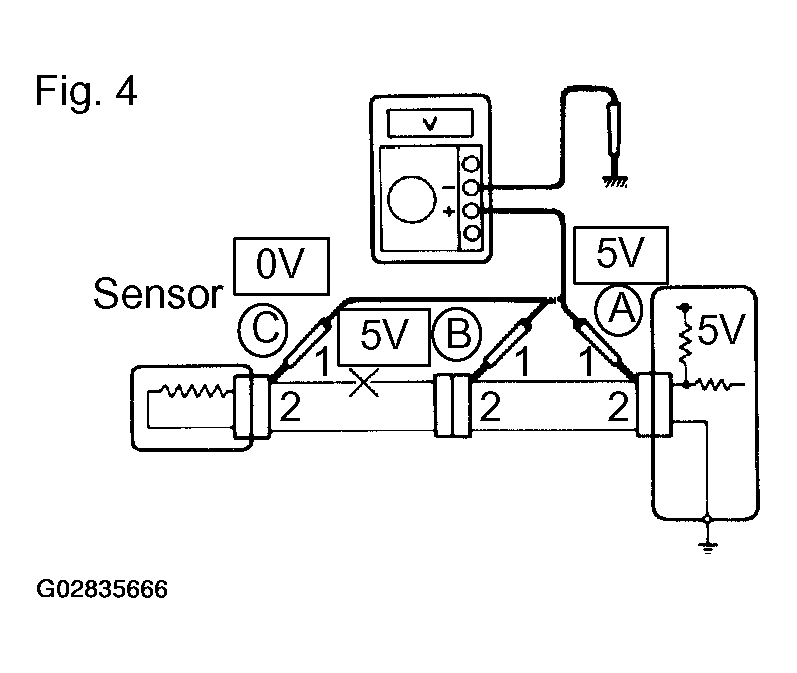

   As shown in Fig. 4Fig 12, with each connector still connected, measure the voltage between body ground and terminal 1 of connector A at the ECU 5V output terminal, terminal 1 of connector B, and terminal 1 of connector C (in that order).

   Example results:

   5V: Between Terminal 1 of connector A and Body Ground

   5V: Between Terminal 1 of connector B and Body Ground

   0V: Between Terminal 1 of connector C and Body Ground

   In the above example, an open circuit is in the wire harness between terminal 1 of B and terminal 1 of C.

   Fig 12: Checking Open Circuit (4 Of 4)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

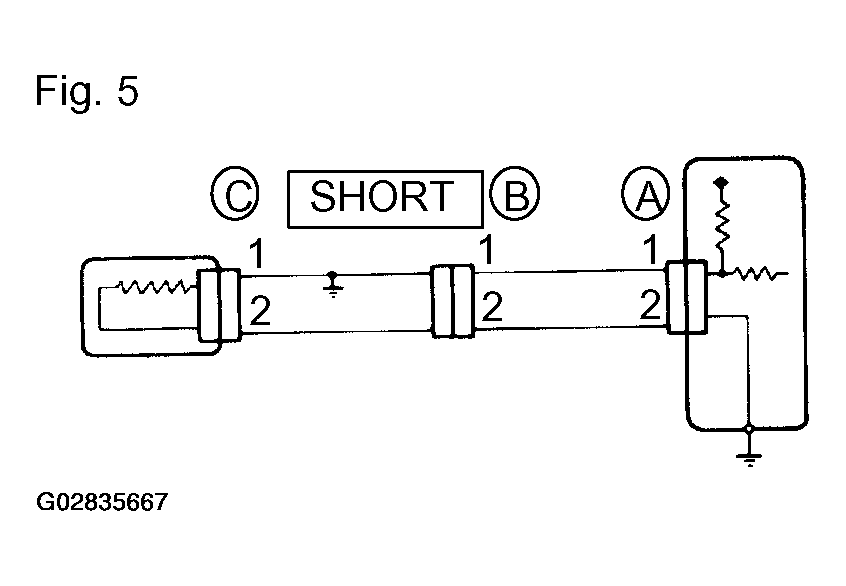

If the wire harness is ground shorted Fig. 5 (Fig 13), locate the section by conducting a resistance check with ground below.

Fig 13: Checking Short Circuit (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check the resistance with ground.

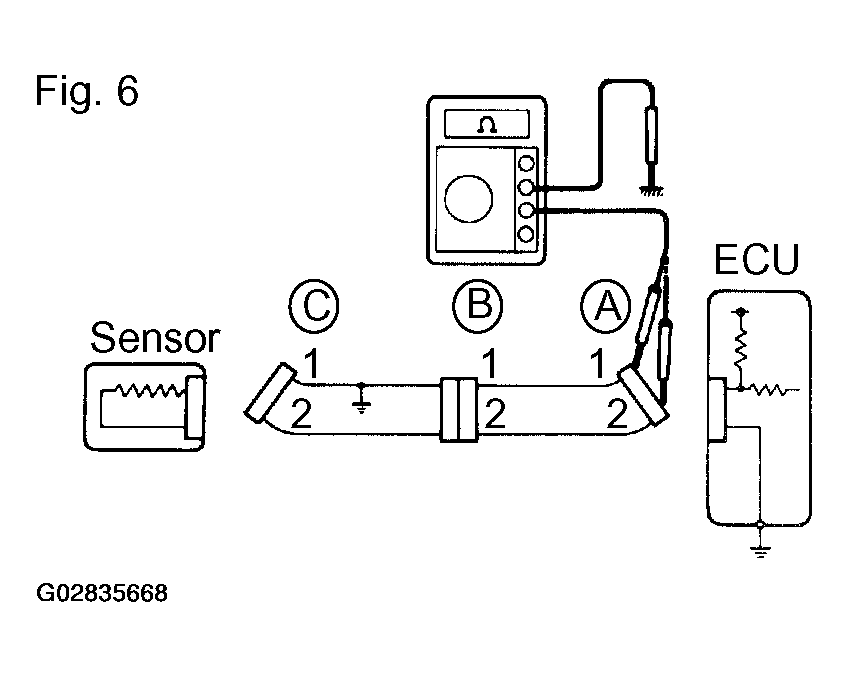

1. Disconnect connectors A and C and measure the resistance between terminal 1 and 2 of connector A and body ground.

   In the case of Fig. 6 Fig 14

   Between terminal 1 of connector A and body ground --> Below 1 Ω (short)

   Between terminal 2 of connector A and body ground --> 10 kΩ or higher

   A short circuit is between terminal 1 of connector A and terminal 1 of connector C.

   Fig 14: Checking Short Circuit (2 Of 3)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect connector B and measure the resistance between terminal 1 of connector A and body ground, and terminal 1 of connector B2 and body ground.

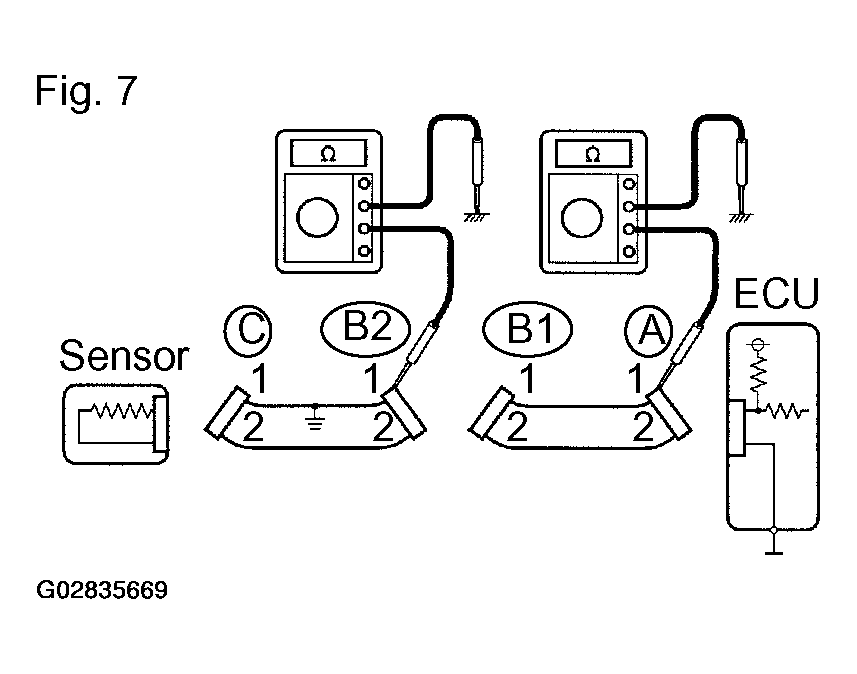

   In the case of Fig. 7Fig 15:

   Between terminal 1 of connector A and body ground --> 10 kΩ or higher

   Between terminal 1 of connector B2 and body ground --> Below 1 Ω (short)

   A short circuit is between terminal 1 of connector B2 and terminal 1 of connector C.

   Fig 15: Checking Short Circuit (3 Of 3)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

First check the ECU ground circuit. If it is faulty, repair it. If it is normal, the ECU could be faulty. Replace the ECU with a functioning one and check if the symptoms occur If the trouble symptoms stop, replace the ECU.

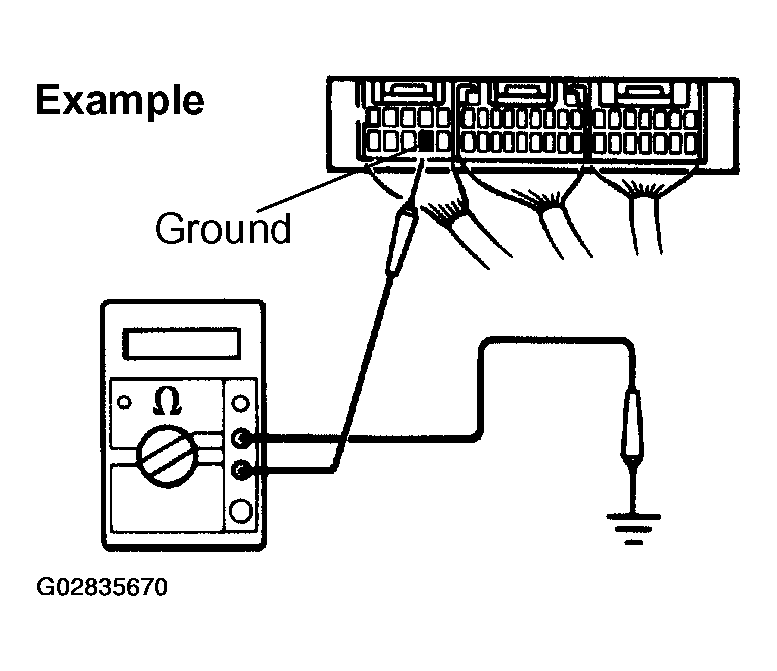

1. Measure the resistance between the ECU ground terminal and the body ground.

   Resistance: Below 1 Ω

   Fig 16: Checking ECU (1 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

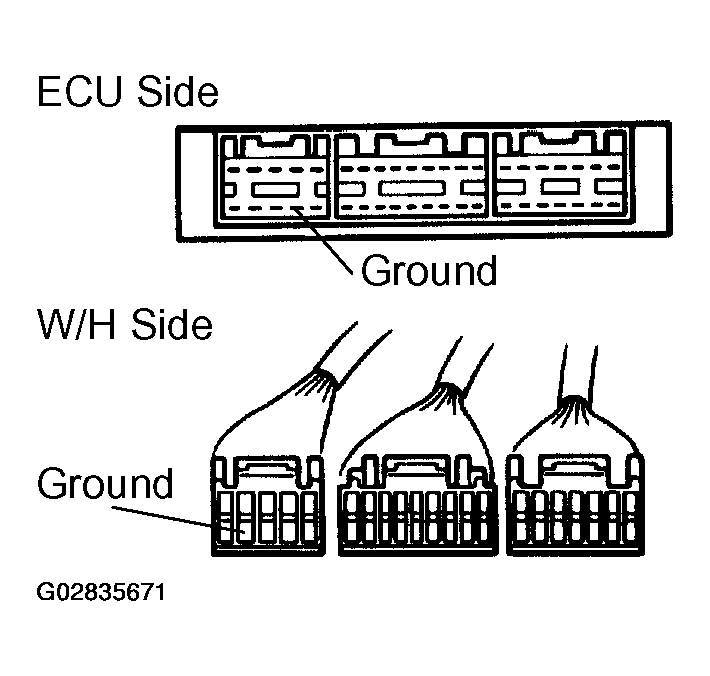

2. Disconnect the ECU connector. Check for bent ground terminals (on the ECU side and the wire harness side). Lastly, check the contact pressure.
