Inspection Procedure

HINT:

Troubleshoot each trouble symptom in accordance with the chart below.

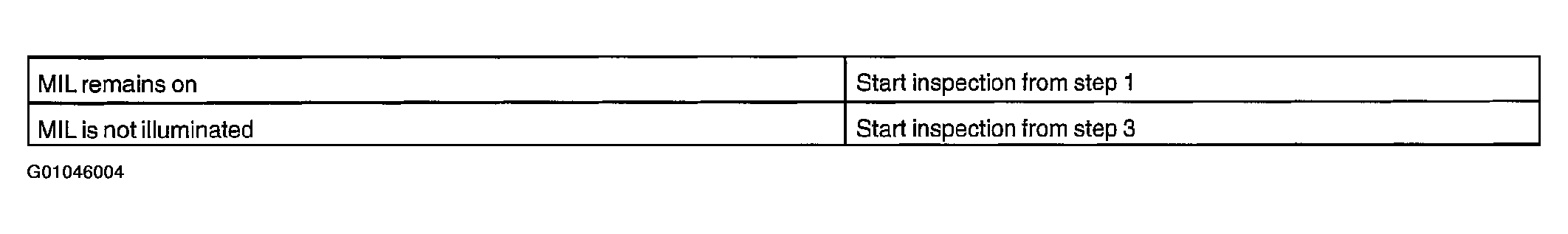

Fig 1: Inspection Procedure Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. CLEAR DTC
   1. Connect the hand-held tester or the OBD II scan tool to the DLC 3.
   2. Turn the ignition switch ON and push the hand-held tester or the OBD II scan tool main switch ON.
   3. Read the DTC (See DTC CHECK/CLEAR ).
   4. Clear the DTC (See DTC CHECK/CLEAR ).
   5. Check that MIL is not illuminated.

      Standard: MIL is not illuminated

   • OK: REPAIR CIRCUIT INDICATED BY OUTPUT CODE (See  DIAGNOSTIC TROUBLE CODE CHART  )
   • NG
2. CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT IN WIRE HARNESS)
   1. Disconnect the E6 ECM connector.

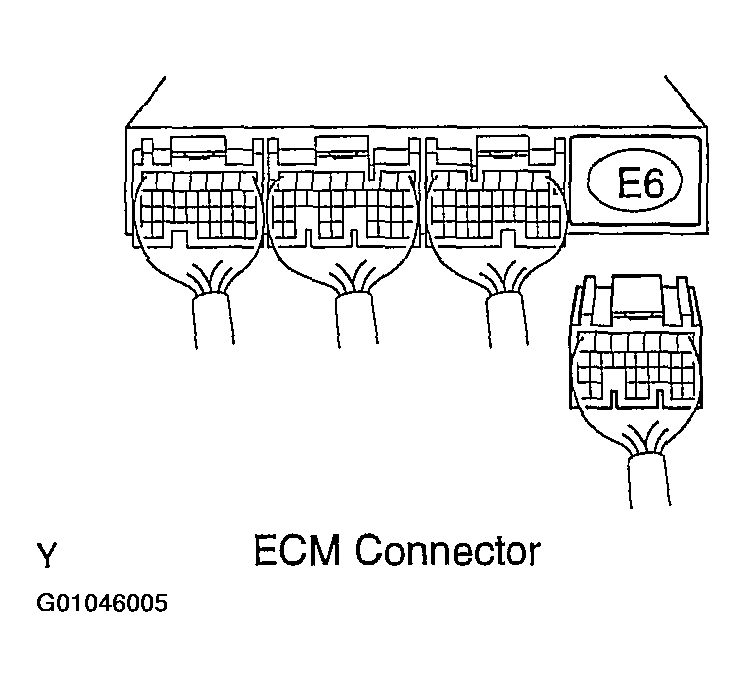

      Fig 2: Identifying E6 ECM Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Turn the ignition switch ON.
   3. Check that MIL is not illuminated.

      Standard: MIL is not illuminated

   4. Reconnect the ECM connector.
   • OK: REPLACE ECM (See  REPLACEMENT  )
   • NG

   CHECK AND REPAIR HARNESS AND CONNECTOR (COMBINATION METER - ECM)

3. CHECK THAT MIL IS ILLUMINATED
   1. Check that MIL is illuminated when turning the ignition switch ON.

      Standard: MIL is illuminated

   • OK: SYSTEM OK
   • NG
4. INSPECT COMBINATION METER ASSY (MIL CIRCUIT)
   1. See the combination meter troubleshooting (See COMBINATION METER - DIAGNOSTICS ).
   • NG: REPAIR OR REPLACE BULB OR COMBINATION METER ASSEMBLY
   • OK

   CHECK AND REPAIR HARNESS AND CONNECTOR (COMBINATION METER - ECM)
