Fuel Injector ASSY: Components

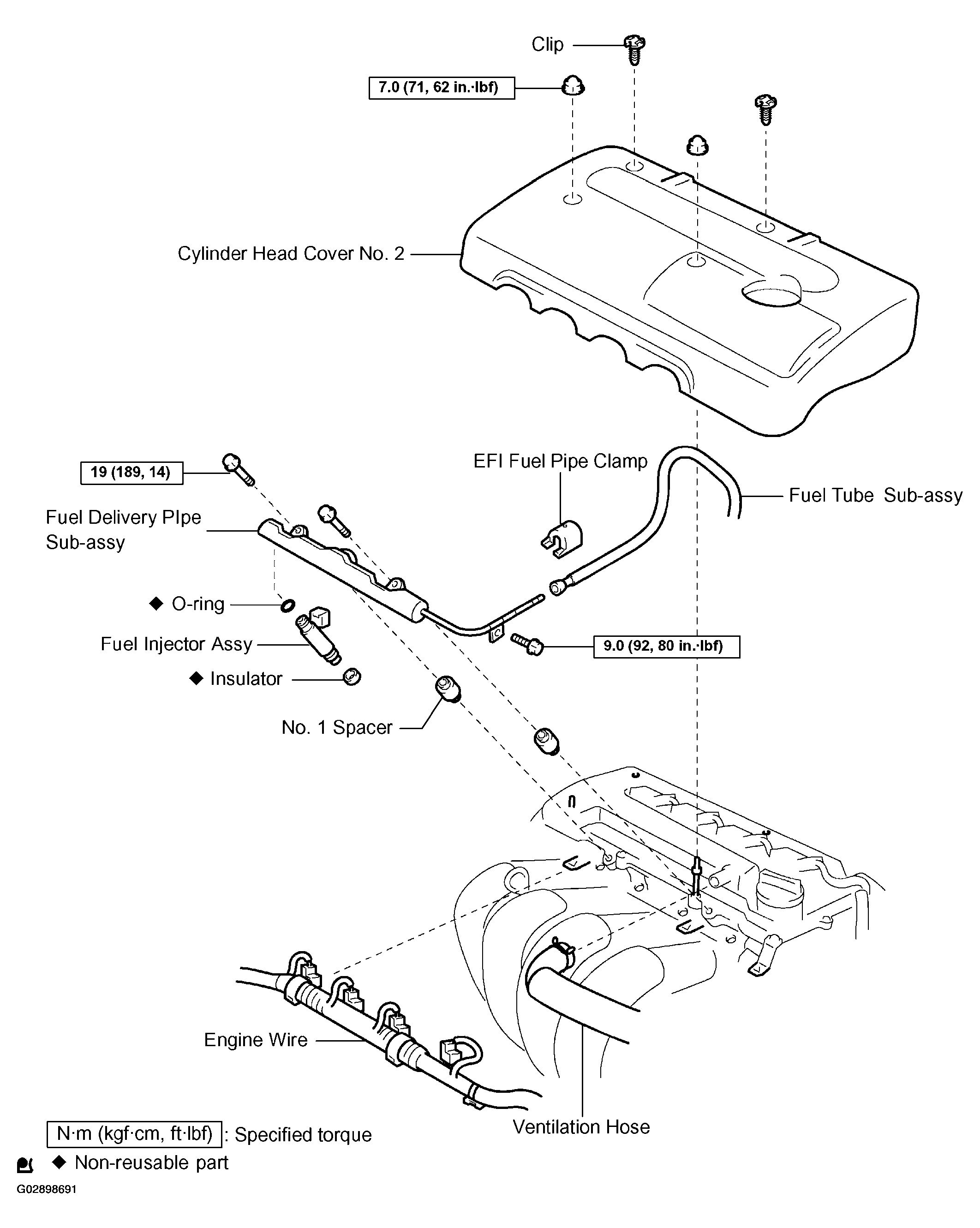

Fig 1: Identifying Fuel Injector Assy Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
