Corolla LE, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Engine Fuel System
>>
Fuel Pump ASSY
>>
Components
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Fuel Pump ASSY: Components

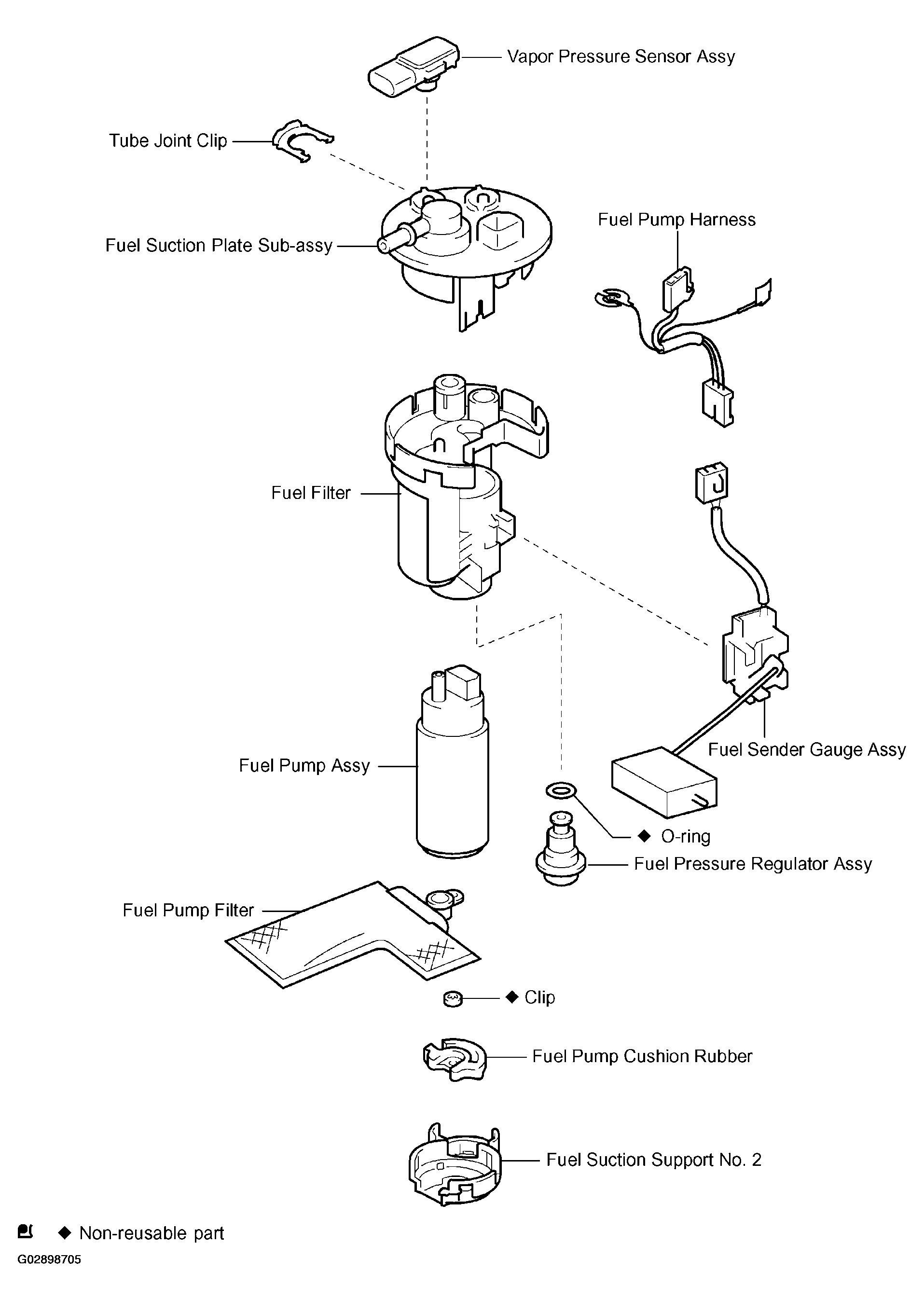

Fig 1: Identifying Fuel Pump Assy Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

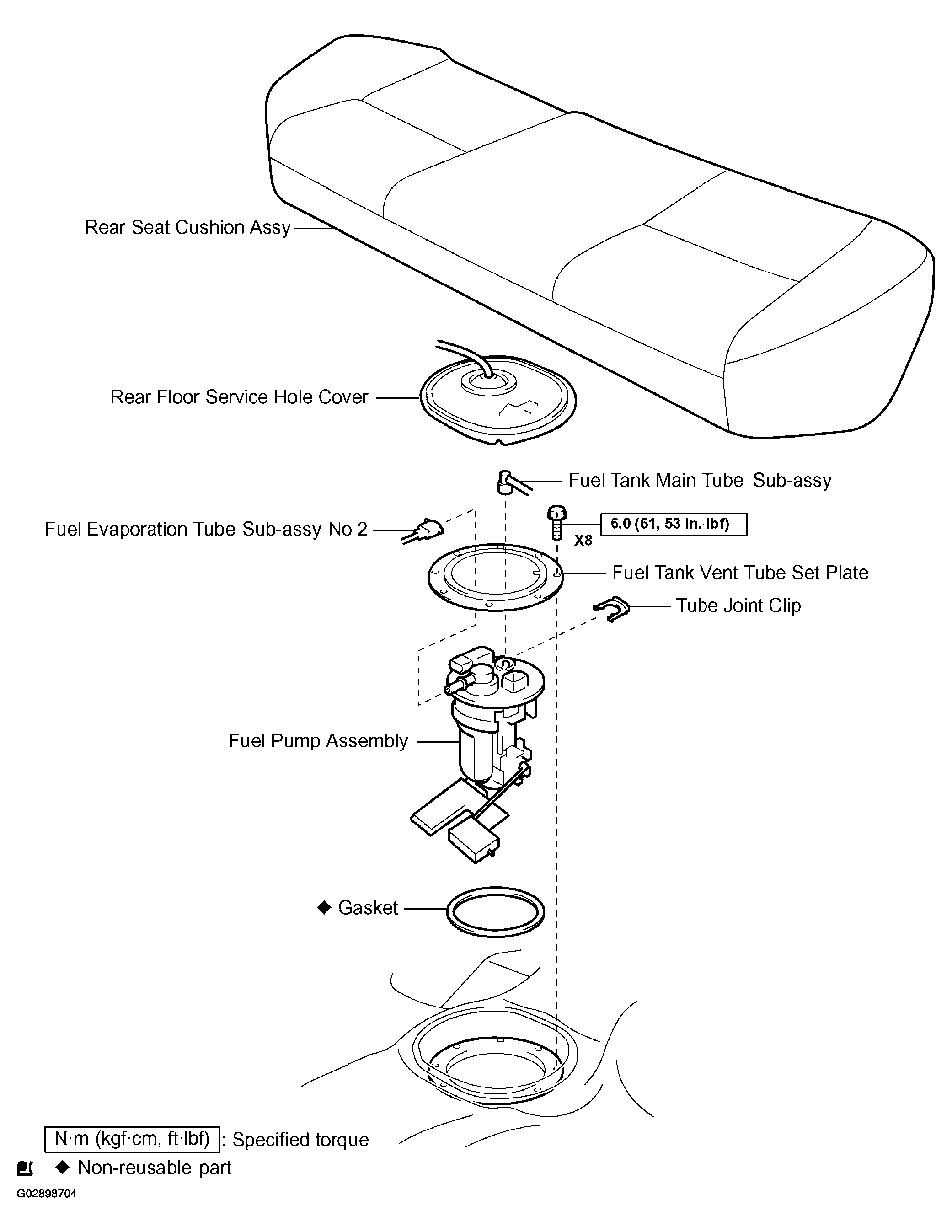

Fig 2: Identifying Fuel Pump Assy Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
