2. Procedure

1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch ON.
3. Clear the DTCs.
4. Run the vehicle in accordance with the applicable drive pattern described in READINESS MONITOR DRIVE PATTERN (see READINESS MONITOR DRIVE PATTERN ).
5. Select from the tester menus: DIAGNOSIS, ENHANCED OBD II, MONITOR INFO and MONITOR RESULT. The monitor result appears after the component name.

   INCMP: The component has not been monitored yet.

   PASS: The component is functioning normally.

   FAIL: The component is malfunctioning.

6. Confirm that the component is set to either PASS or FAIL.

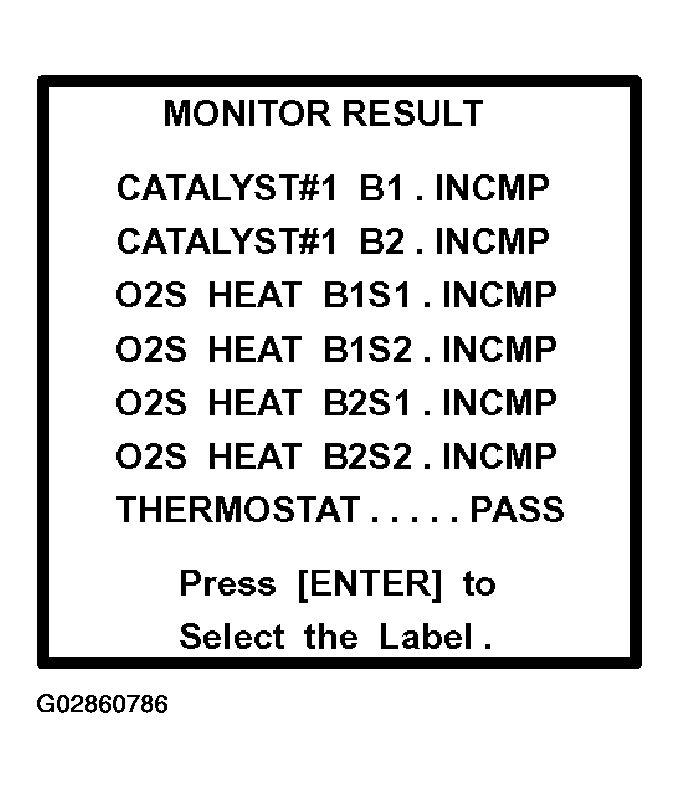

   Fig 1: Displaying MONITOR RESULT

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Select the component (Label) and press ENTER. The accuracy test value appears when the monitor result is either PASS or FAIL.

   VAL The test value

   LMT: The test limit

   TLT: The test limit type. Either 0 or 1 is displayed.

8. If TLT is 0, the component is malfunctioning when the test value is higher than the test limit. If TLT is 1, the component is malfunctioning when the test value is lower than the test limit.

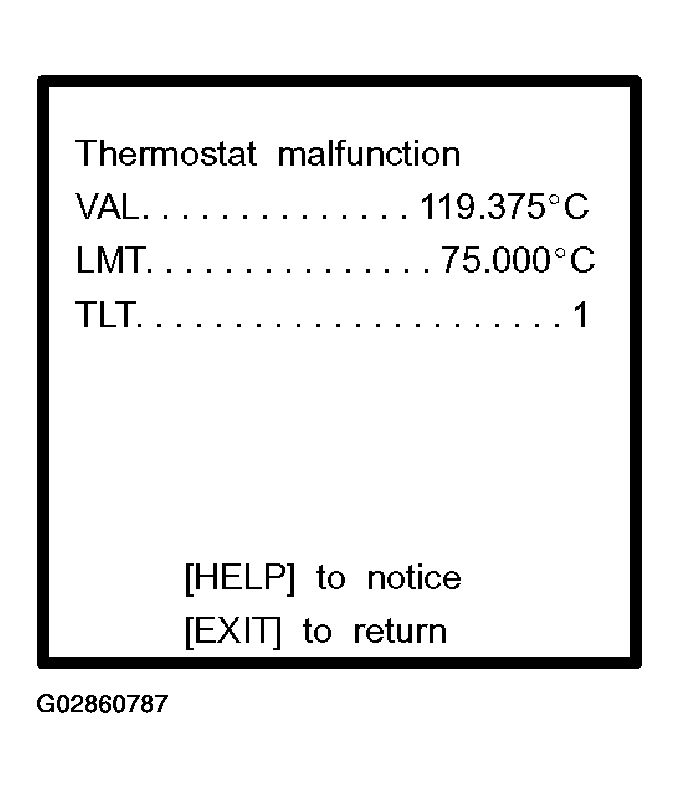

   Fig 2: Displaying Accuracy Test Value

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Compare the test value with the test limit. The test value is usually significantly higher or lower than the test limit. If the test value is on the borderline of the test limit, there is a potential malfunction in the component.

HINT:

The monitor result might on rare occasions be PASS even if the MIL is illuminated. This indicates the system malfunctioned on a previous driving cycle. This might be caused by an intermittent problem.
