Inspection Procedure

Hand-held tester:

1. CHECK OPERATION OF STOP LIGHT
   1. Check if the stop lights go on and off normally when the brake pedal is depressed and released.
   • NG: REPAIR OR REPLACE STOP LIGHT SWITCH ASSY
   • OK
2. INSPECT STOP LIGHT SWITCH ASSY
   1. Check the resistance between the terminals when the switch is turned ON and OFF.

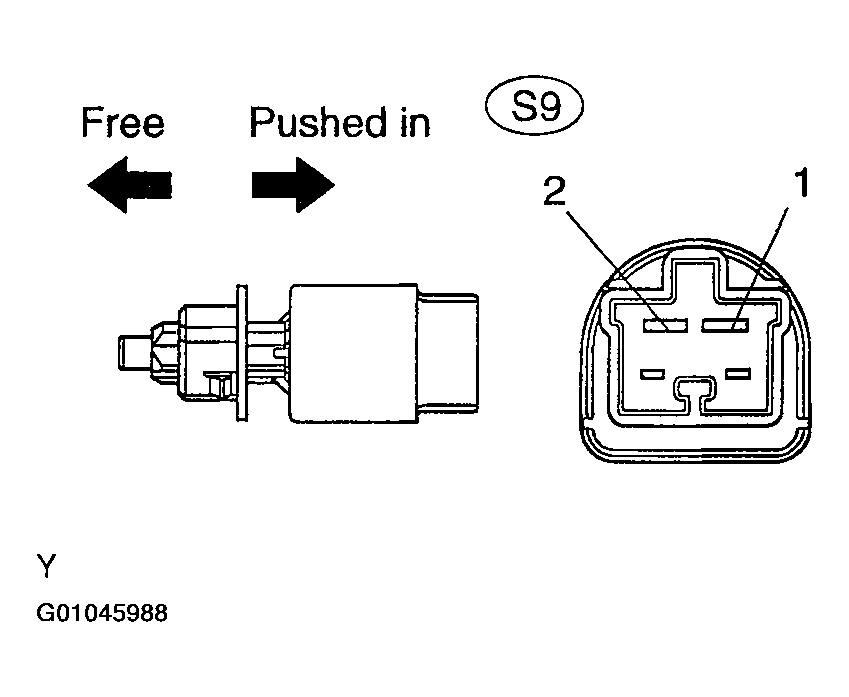

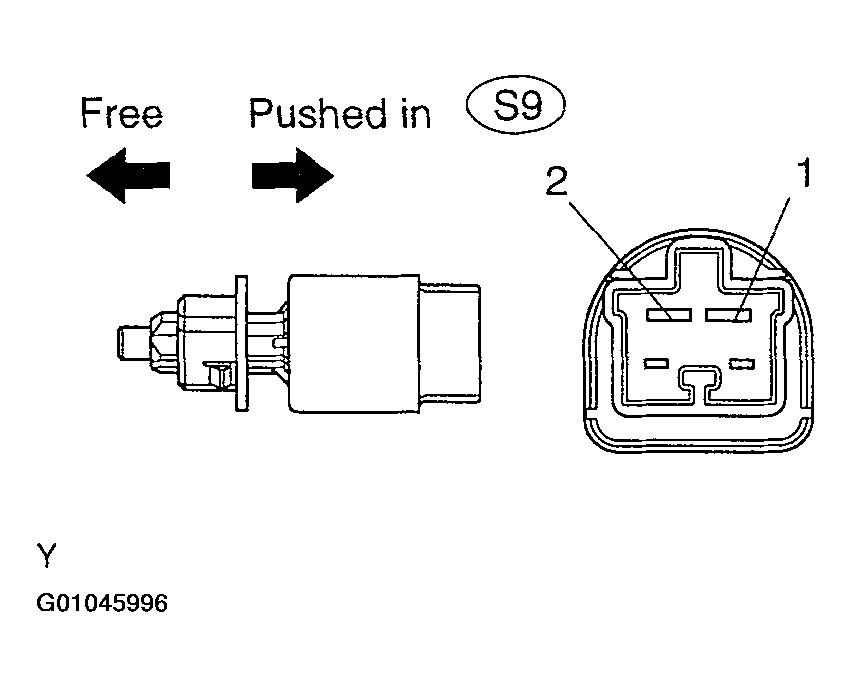

      Fig 1: Inspecting Stop Light Switch Assembly

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

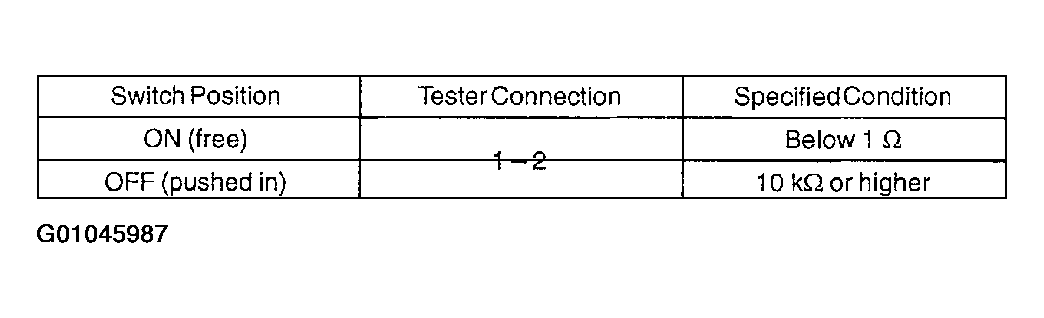

      Standard:

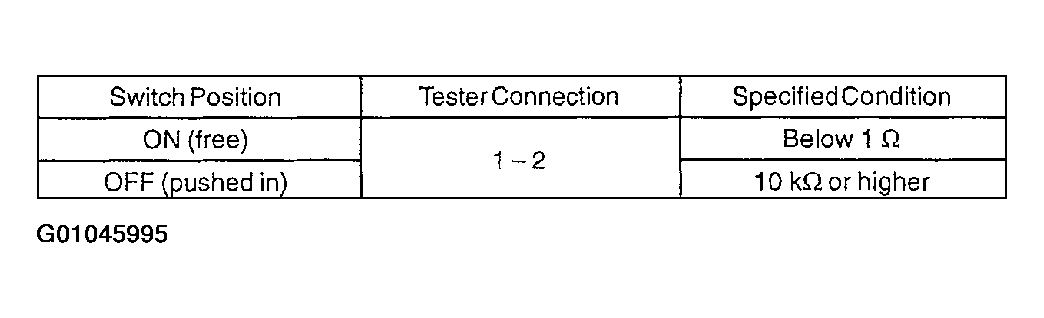

      Fig 2: Stop Light Switch Assembly Condition Chart

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   • NG: REPLACE STOP LIGHT SWITCH ASSY
   • OK
3. READ VALUE OF HAND-HELD TESTER (STP SIGNAL)
   1. Turn the ignition switch ON.
   2. Select the item "DIAGNOSIS/ENHANCED OBD II/DATA LIST/ALL/STOP LIGHT SW" and read its value displayed on the hand-held tester.

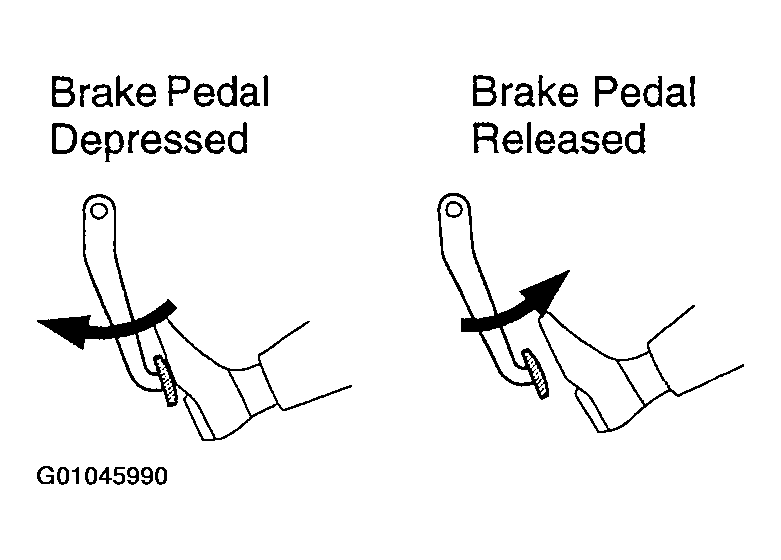

      Fig 3: Identifying Depressed/Released Brake Pedal

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

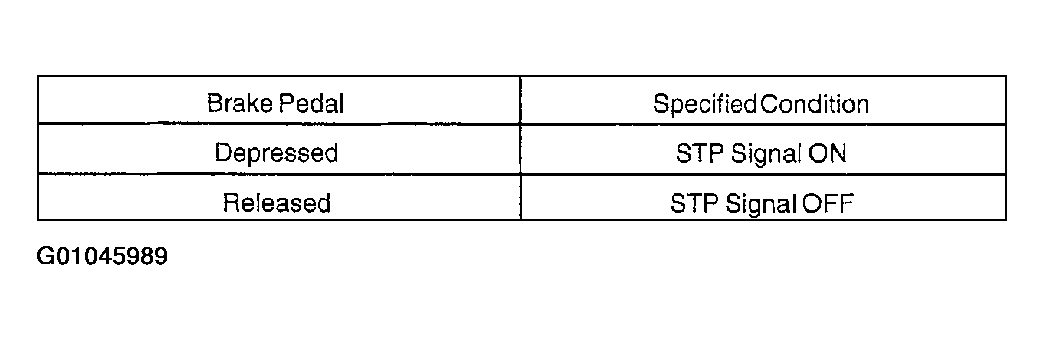

      Fig 4: Identifying Specified Condition

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   • OK: CHECK FOR INTERMITTENT PROBLEMS (See  CHECK FOR INTERMITTENT PROBLEMS  )
   • NG
4. CHECK HARNESS AND CONNECTOR (STOP LIGHT SWITCH - ECM)
   1. Disconnect the S9 stop light switch connector.
   2. Disconnect the E5 ECM connector.
   3. Check the resistance between the wire harness side connectors.

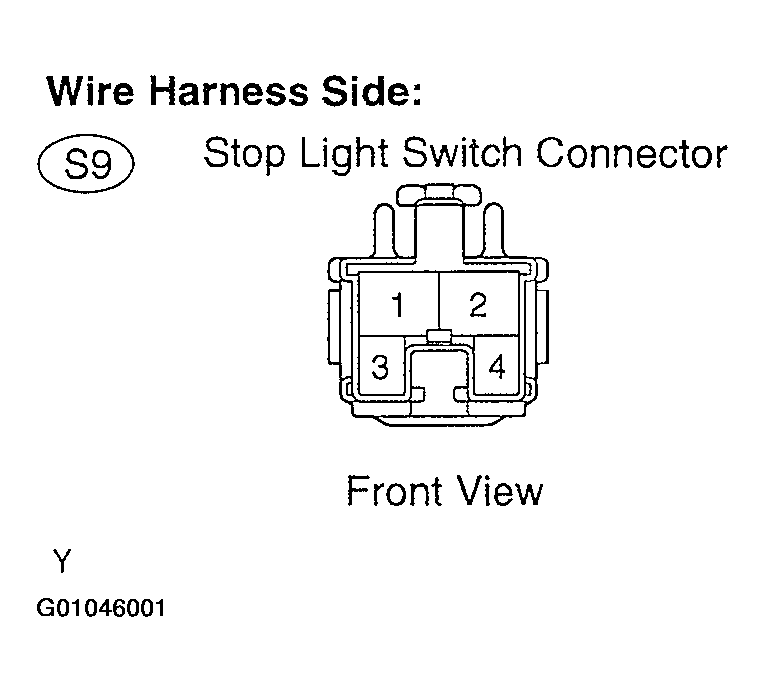

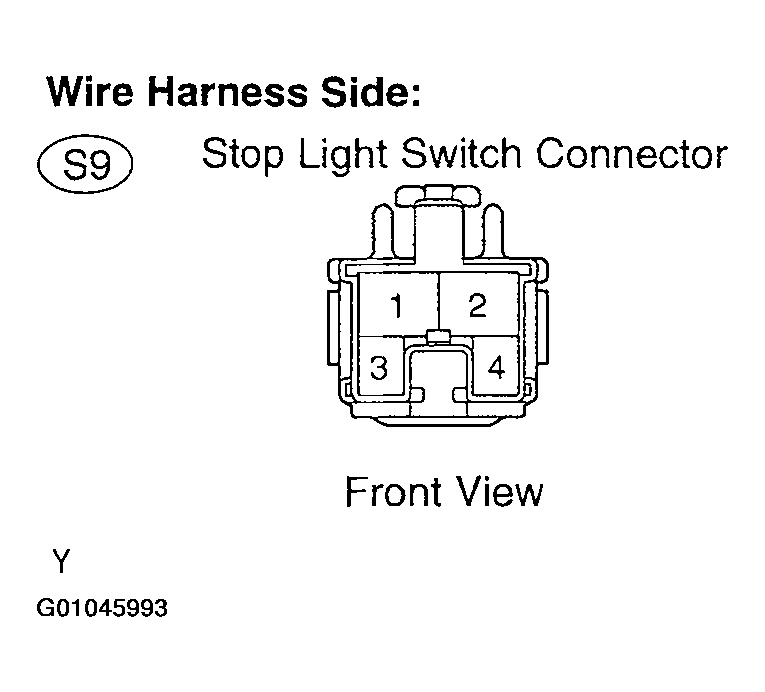

      Fig 5: Identifying Stop Light Switch Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

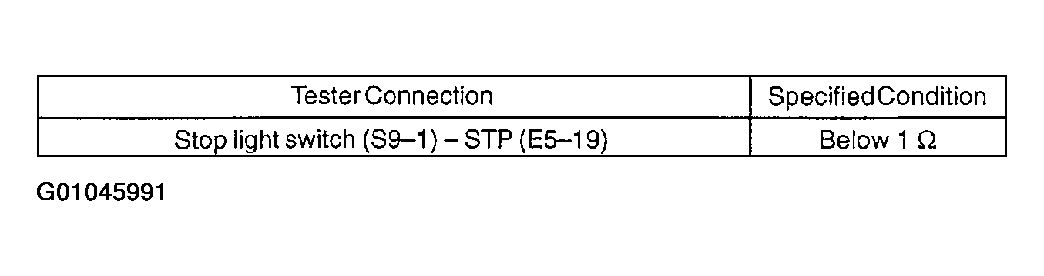

      Standard (Check for open):

      Fig 6: Checking Conditions (Open)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

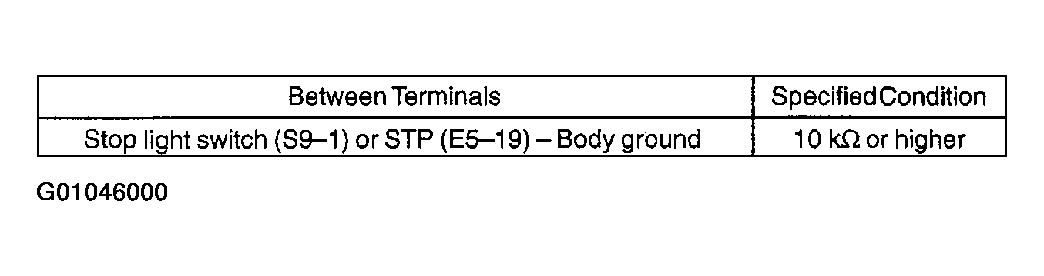

      Standard (Check for short):

      Fig 7: Checking Conditions (Short)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Reconnect the ECM connector.
   5. Reconnect the stop light switch connector.

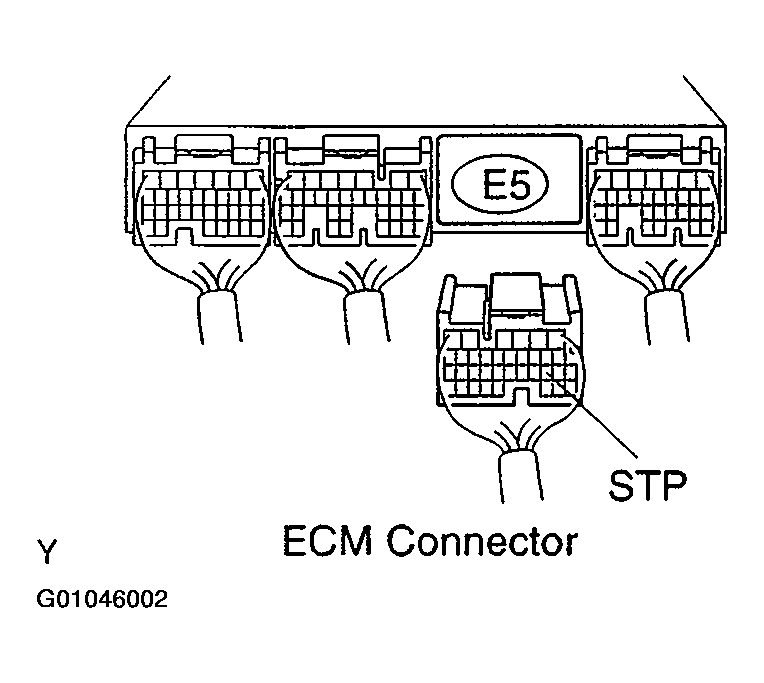

   Fig 8: Identifying ECM Connector
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   • NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
   • OK

   REPLACE ECM (See  REPLACEMENT  )

OBD II scan tool (excluding hand-held tester):

1. CHECK OPERATION OF STOP LIGHT
   1. Check if the stop lights go on and off normally when the brake pedal is depressed and released.
   • NG: REPAIR OR REPLACE STOP LIGHT SWITCH CIRCUIT
   • OK
2. INSPECT STOP LIGHT SWITCH ASSY
   1. Check the resistance between terminals when the switch ON and OFF.
      Fig 9: Inspecting Stop Light Switch Assembly

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

      Fig 10: Checking Resistance

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   • NG: REPLACE STOP LIGHT SWITCH ASSY
   • OK
3. INSPECT ECM (STP VOLTAGE)
   1. Turn the ignition switch ON.
   2. Measure the voltage between the terminals of the E4 and E5 ECM connectors.

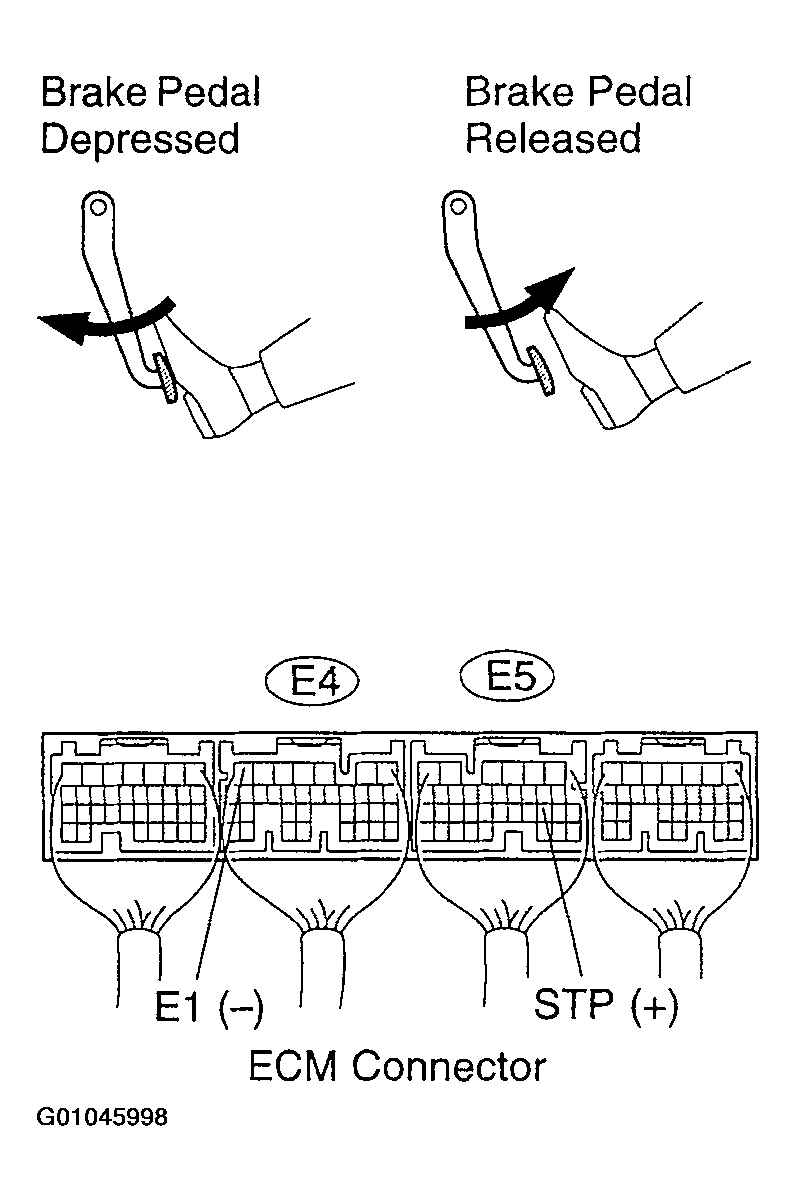

      Fig 11: Inspecting ECM (STP Voltage)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

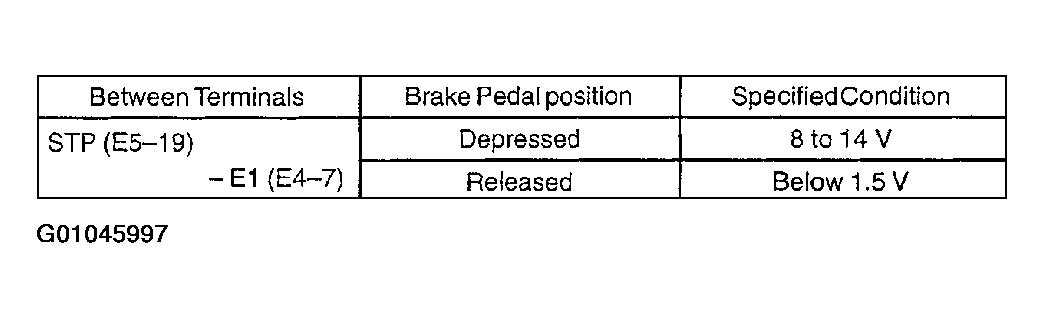

      Fig 12: Measuring Voltage

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   • OK: CHECK FOR INTERMITTENT PROBLEMS (See  CHECK FOR INTERMITTENT PROBLEMS  )
   • NG
4. CHECK HARNESS AND CONNECTOR (STOP LIGHT SWITCH - ECM)
   1. Disconnect the S9 stop light switch connector.
   2. Disconnect the E5 ECM connector.
   3. Check the resistance between the wire harness side connectors.
      Fig 13: Identifying Stop Light Switch Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

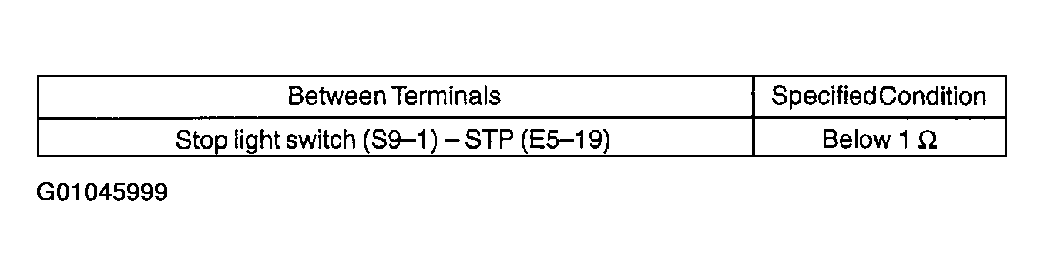

      Standard (Check for open):

      Fig 14: Checking Resistance (Open)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

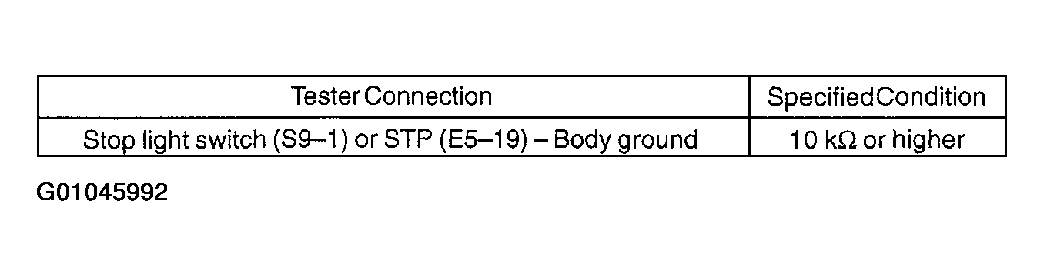

      Standard (Check for short):

      Fig 15: Checking Resistance (Short)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Reconnect the ECM connector.
   5. Reconnect the stop light switch connector.

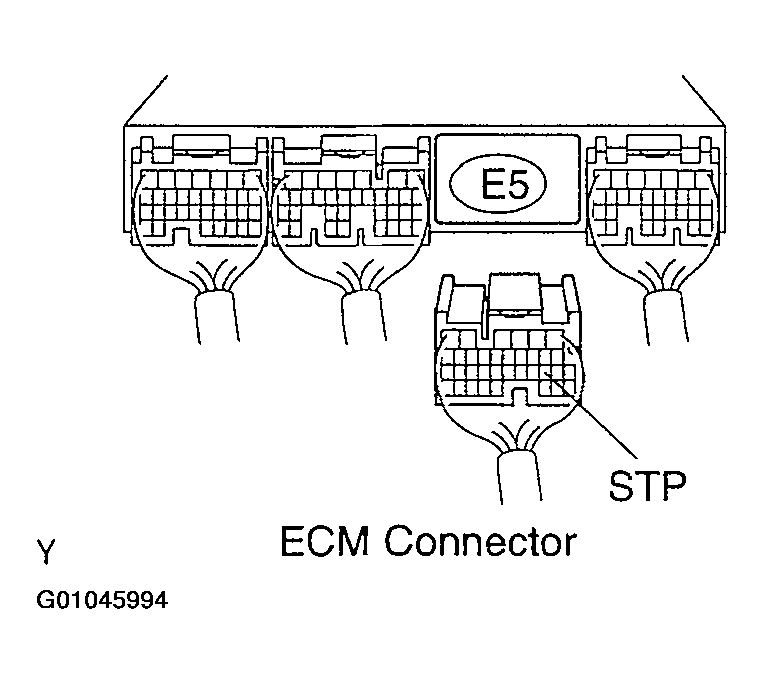

   Fig 16: Identifying ECM Connector
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   • NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
   • OK

   REPLACE ECM (See  REPLACEMENT  )
