Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION NUMBER

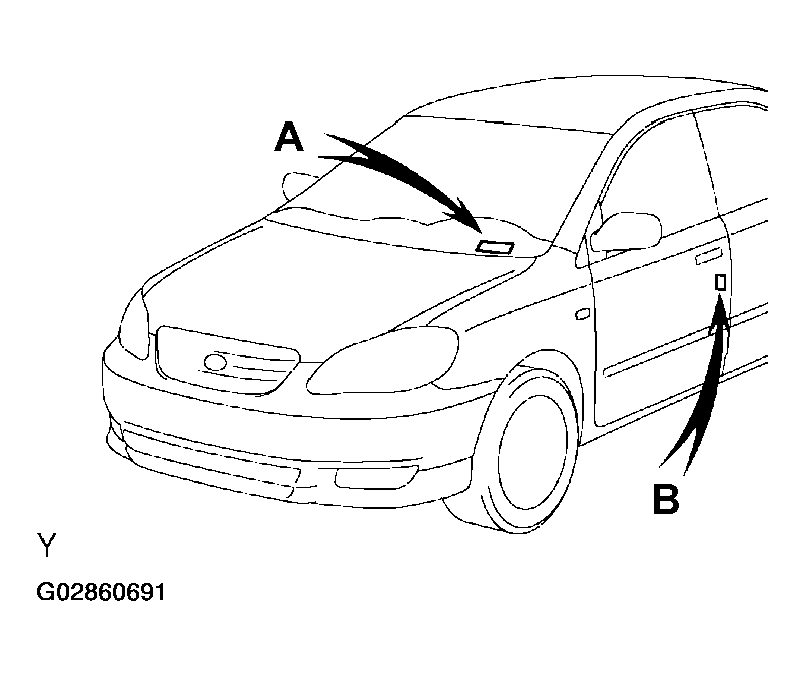

1. The vehicle identification number is stamped on the vehicle identification number plate and certification label, as shown in the illustration.
  1. A: Vehicle Identification Number Plate
  2. B: Certification Label

    Fig 1: Identifying Vehicle Identification Number
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER

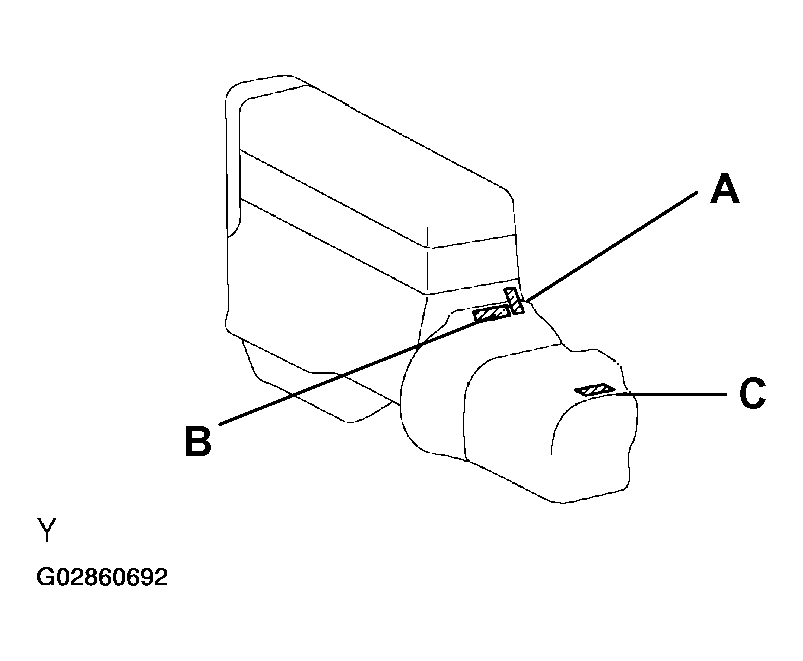

1. The engine serial number is stamped on the cylinder block of the engine, and the transaxle serial number is stamped on the housing, as shown in the illustration.
  1. A: 1ZZ-FE
  2. B: C59
  3. C: A245E

    Fig 2: Identifying Engine Serial Number And Transaxle Serial Number
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
