Customer Problem Analysis

HINT:

• In troubleshooting, the problem symptoms must be confirmed accurately. Preconceptions should be discarded in order to give an accurate judgement. To clearly understand what the problem symptoms are, it is extremely important to ask the customer about the problem and the conditions at the time it occurred.
• As much information as possible should be gathered for reference. Past problems that seem unrelated may also help in some cases. In the Diagnostic information, a customer problem analysis table is provided for each system.
• 5 items are important points in the problem analysis:

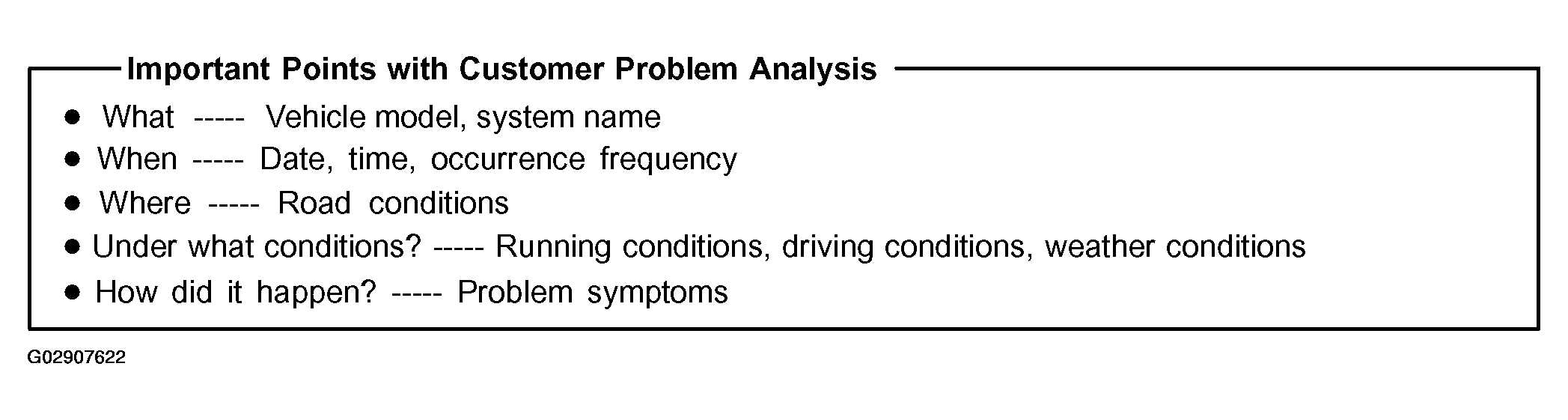

  Fig 1: Identifying Important Points With Customer Problem Analysis

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

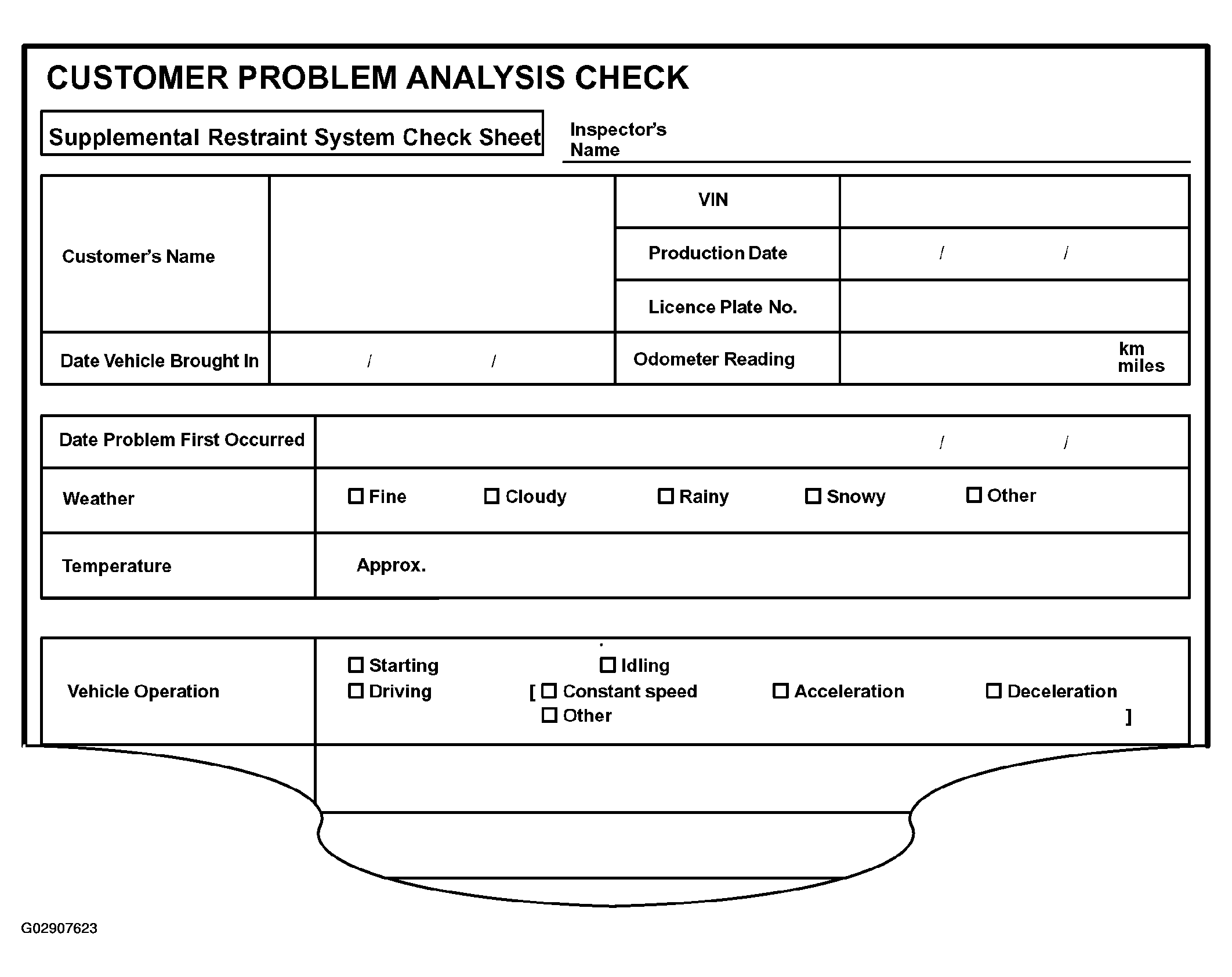

  (Sample) Supplemental Restraint System check sheet.

  Fig 2: Identifying Customer Problem Analysis Check Sheet

  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
