Automatic Transmission Control Cable Assembly: Replacement

REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY CENTER (See REPLACEMENT )
REMOVE FLOOR CARPET COVER CENTER RH (See REPLACEMENT )
REMOVE FLOOR CARPET COVER CENTER LH (See REPLACEMENT )
REMOVE BATTERY
REMOVE AIR CLEANER ASSY
REMOVE AIR CLEANER HOSE NO.1
REMOVE TRANSMISSION CONTROL CABLE ASSY

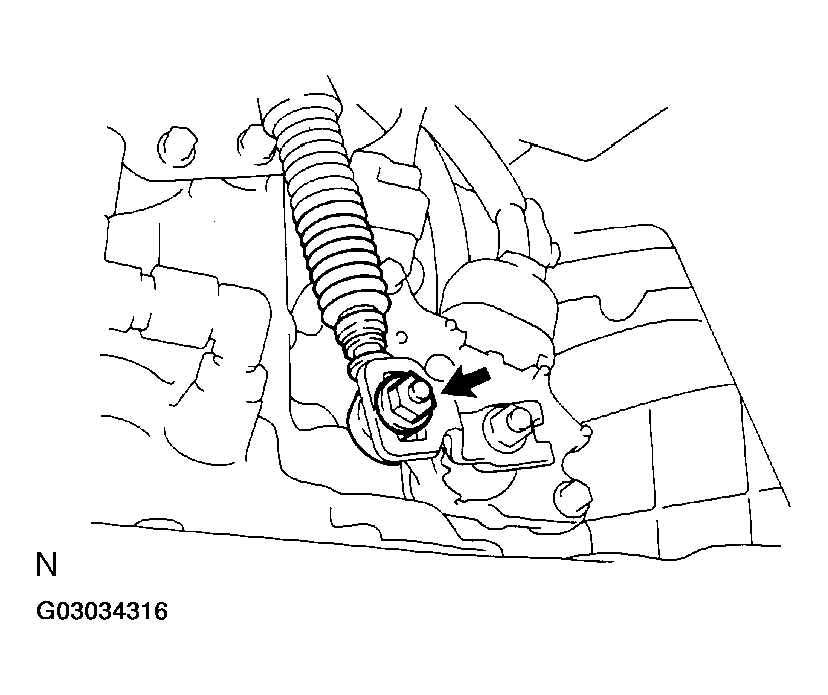

1. Remove the nut from the control shaft lever.
2. Disconnect the control cable from the control shaft lever.

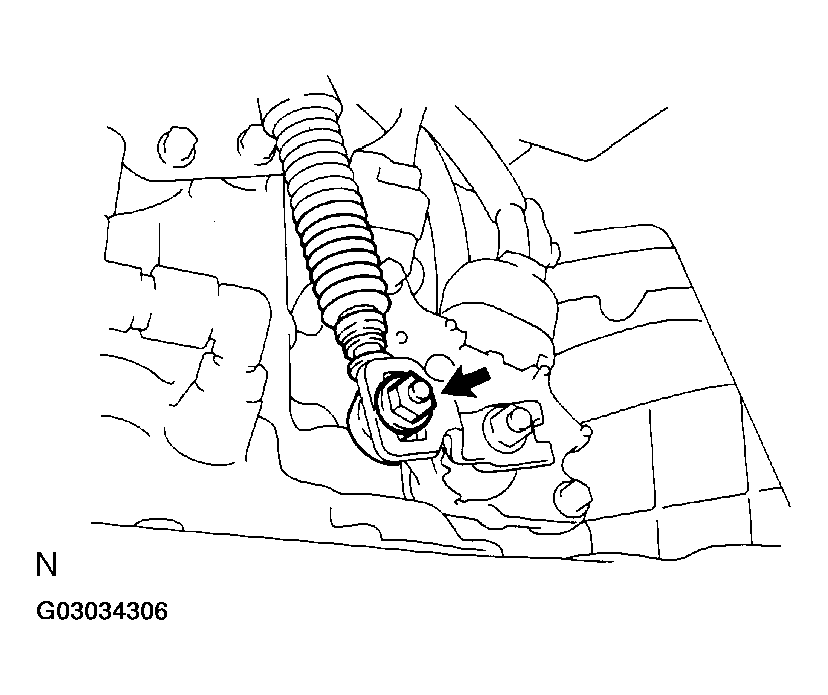

  Fig 1: Disconnecting Control Cable From Control Shaft Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

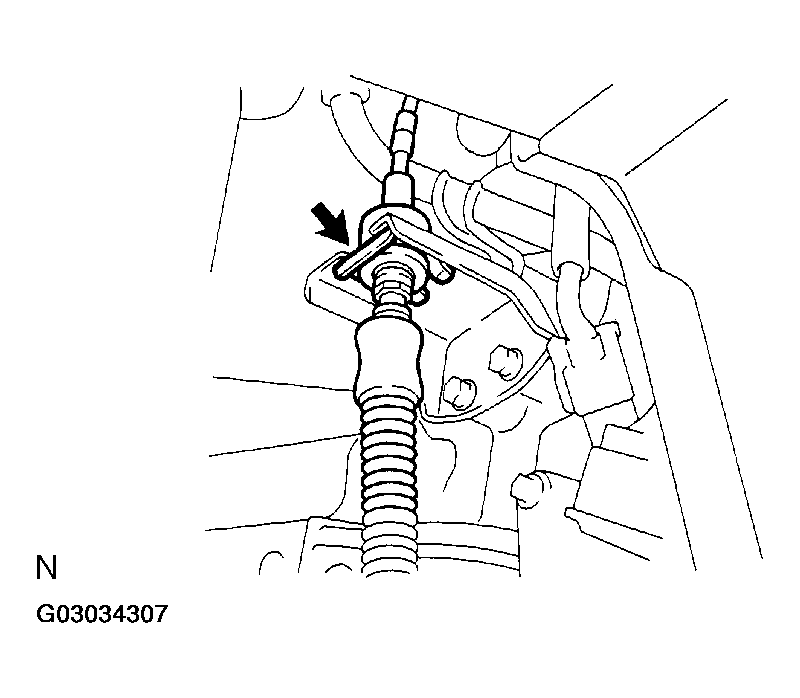

3. Remove the clip and disconnect the control cable from the control cable bracket.

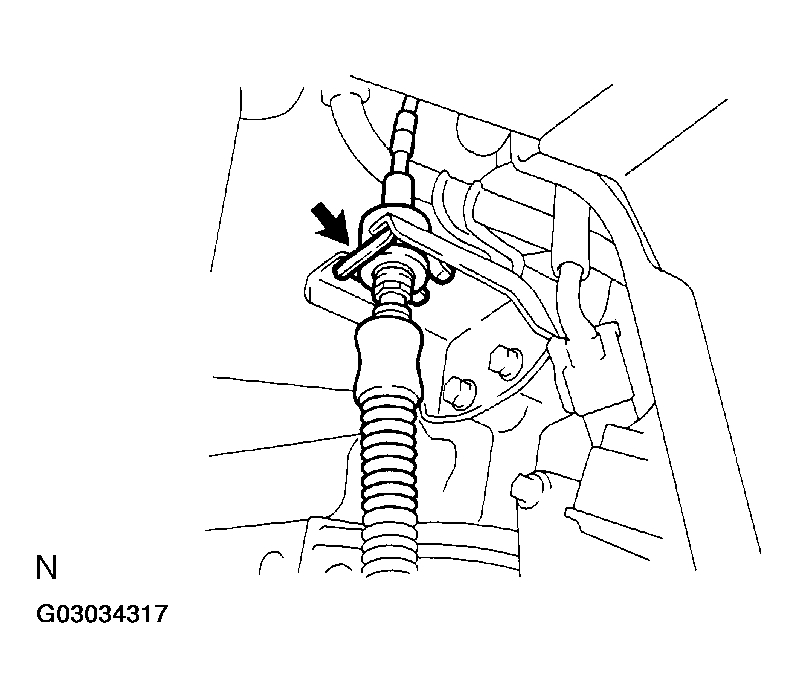

  Fig 2: Disconnecting Control Cable From Control Cable Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

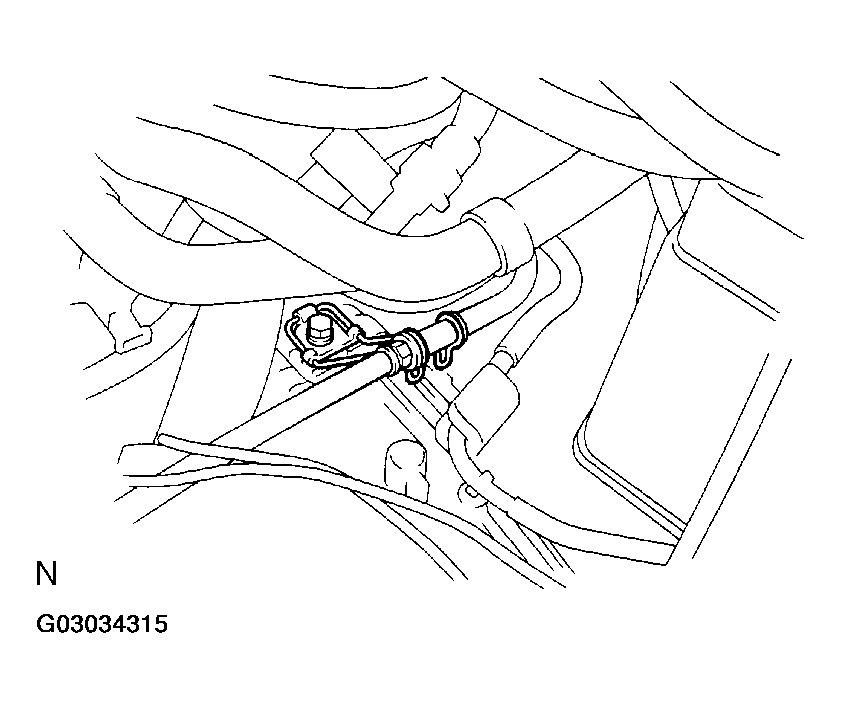

4. Disconnect the control cable from the control cable clamp.

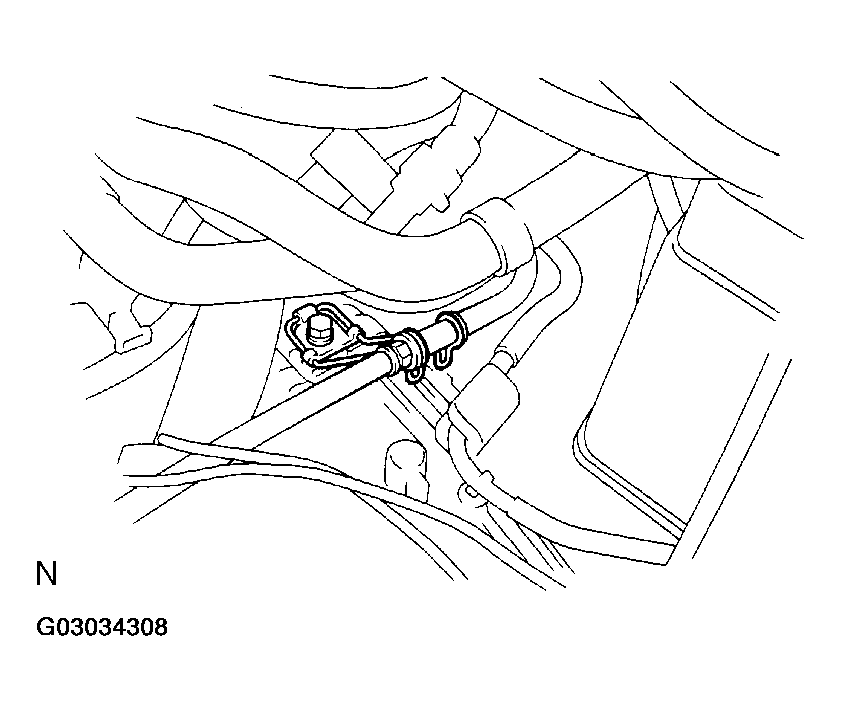

  Fig 3: Disconnecting Control Cable From Control Cable Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

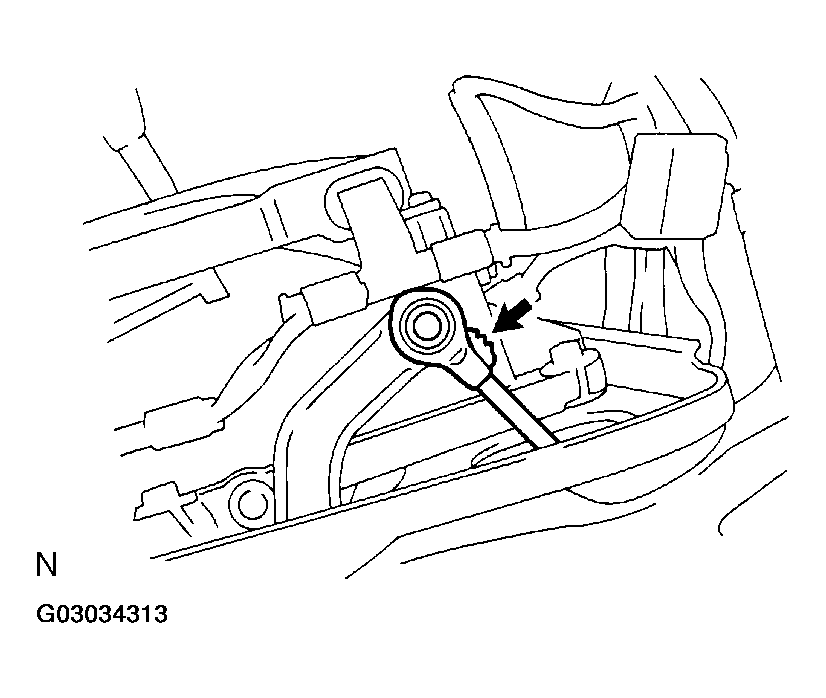

5. Disconnect the cable end from the rod of the floor shift assy.

  Fig 4: Disconnecting Cable End From Rod Of Floor Shift Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

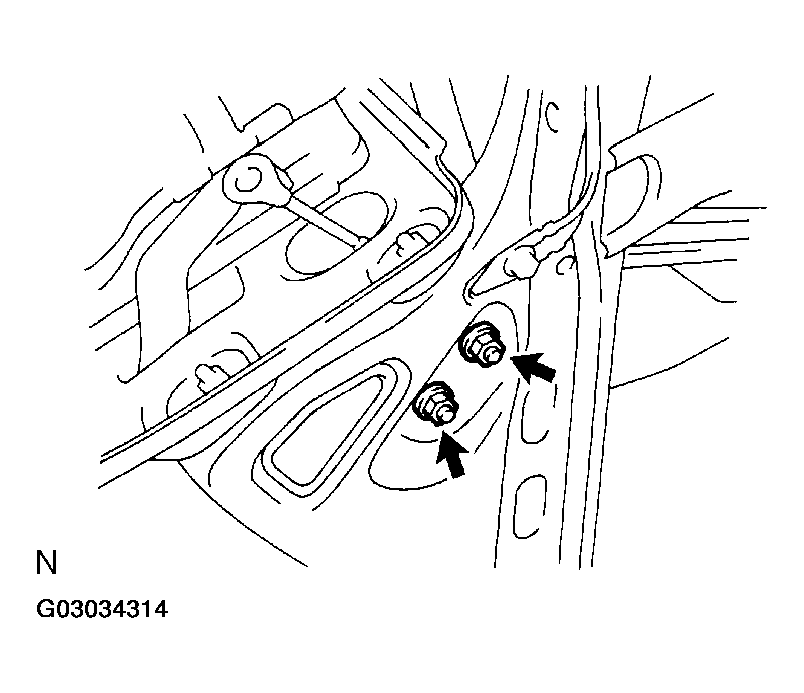

6. Remove the 2 nuts.

  Fig 5: Removing Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

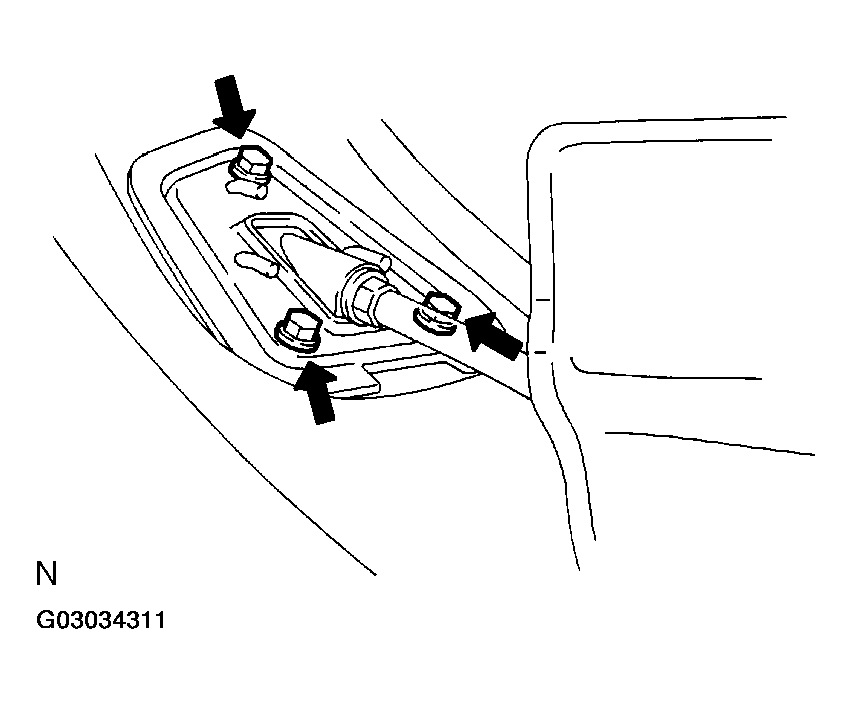

7. Remove the 3 bolts.
8. Pull out the control cable from the body.
Fig 6: Removing Control Cable From Body
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMISSION CONTROL CABLE ASSY
1. Pull in the control cable to the body.

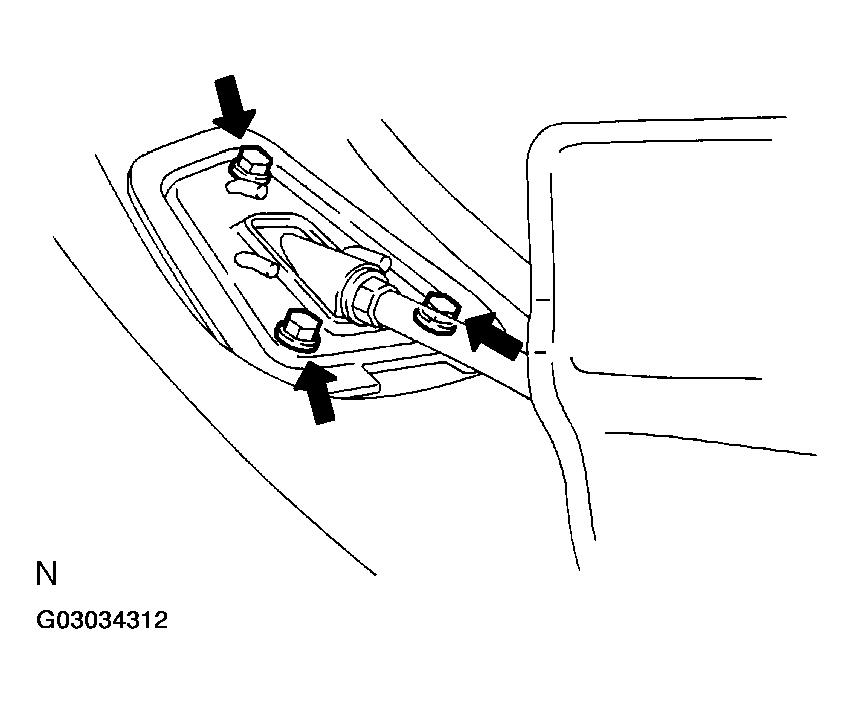

2. Install the 3 bolts.
  Torque: 4.9 N.m (50 kgf.cm, 43 in..lbf)

  Fig 7: Installing Control Cable To Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

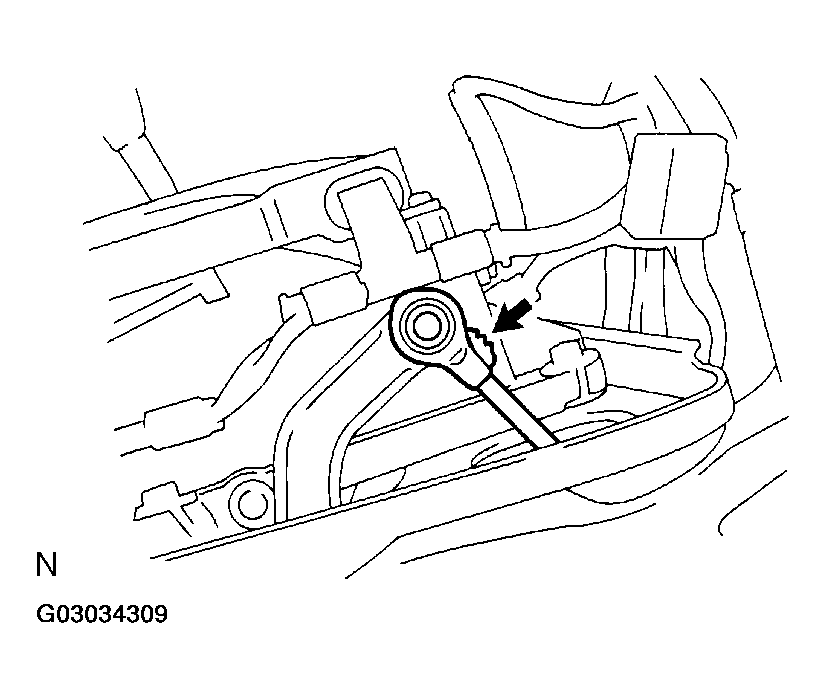

3. Install the cable end, as shown in the illustration.
  HINT:

  Install it with the uneven surface facing up.

  Fig 8: Connecting Cable End To Rod Of Floor Shift Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the control cable and 2 nuts.
  Torque: 11.8 N.m (122 kgf.cm, 9 ft.lbf)

  Fig 9: Installing Control Cable Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Connect the control cable to the control cable clamp.

  Fig 10: Connecting Control Cable To Control Cable Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Temporarily install the control cable to the control shaft lever with nuts.

  Fig 11: Installing Control Cable To Control Shaft Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Install the control cable and clip to the bracket.
Fig 12: Installing Control Cable And Clip To Bracket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CLEANER ASSY
ADJUST SHIFT LEVER POSITION (See ADJUSTMENT )
INSPECT SHIFT LEVER POSITION (See ADJUSTMENT )
