Power Window Control System: Location

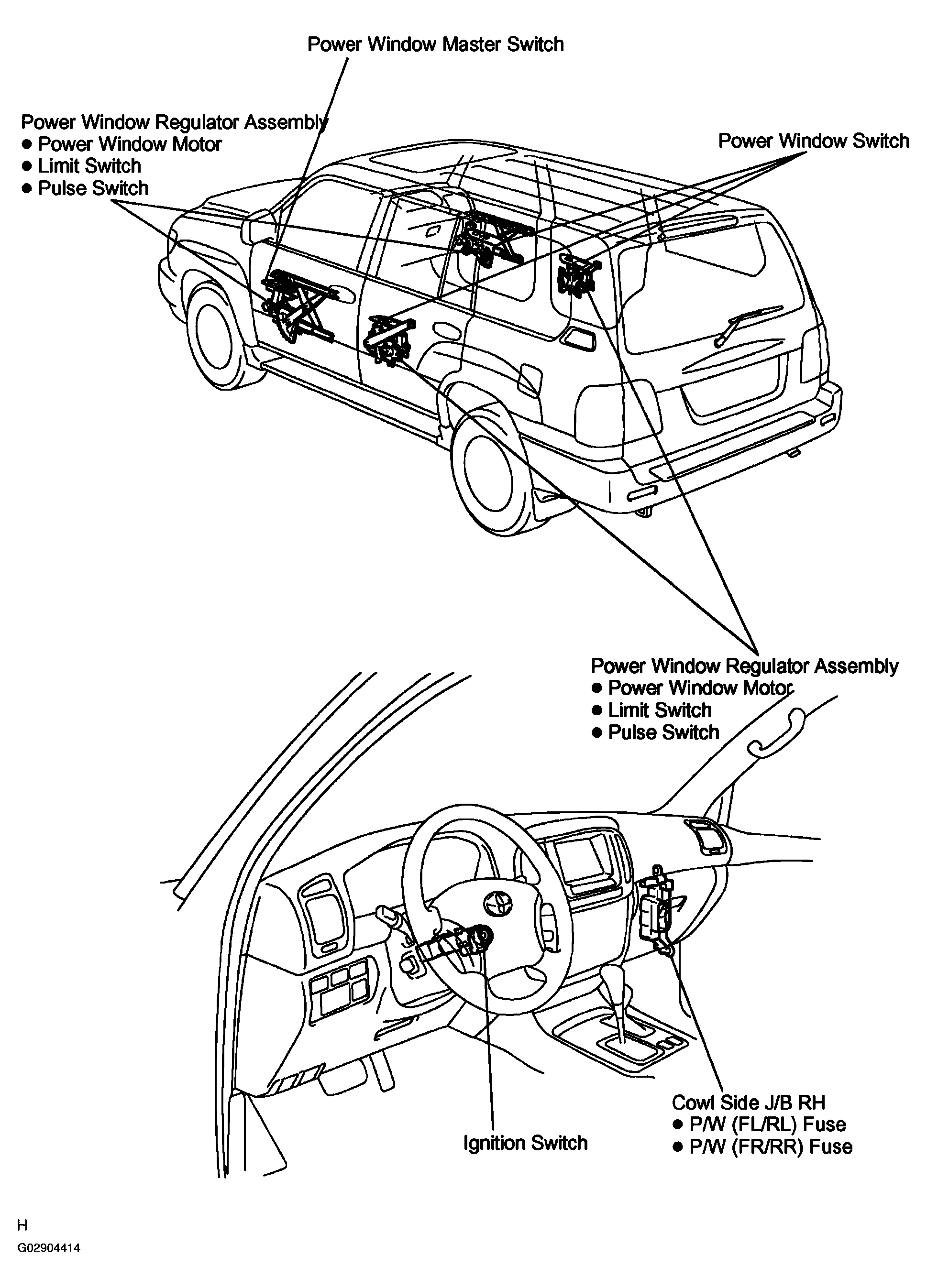

Fig 1: Identifying Power Window Control System Components
G02904414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

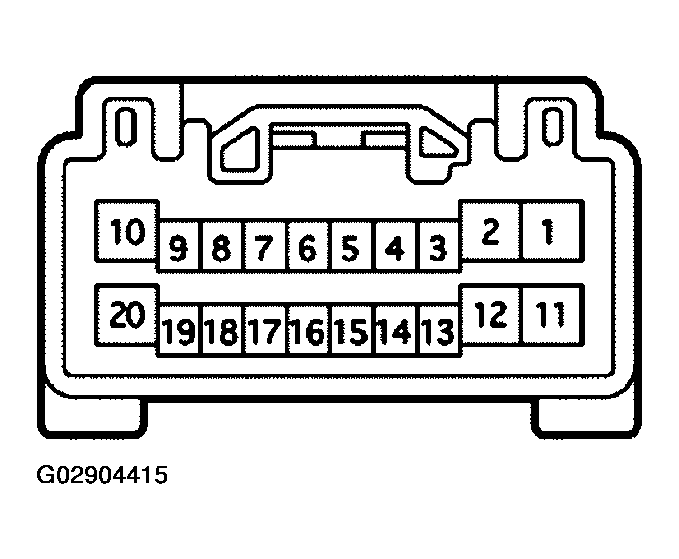

Fig 2: Power Window Master Switch Connector Terminal Identification
G02904415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

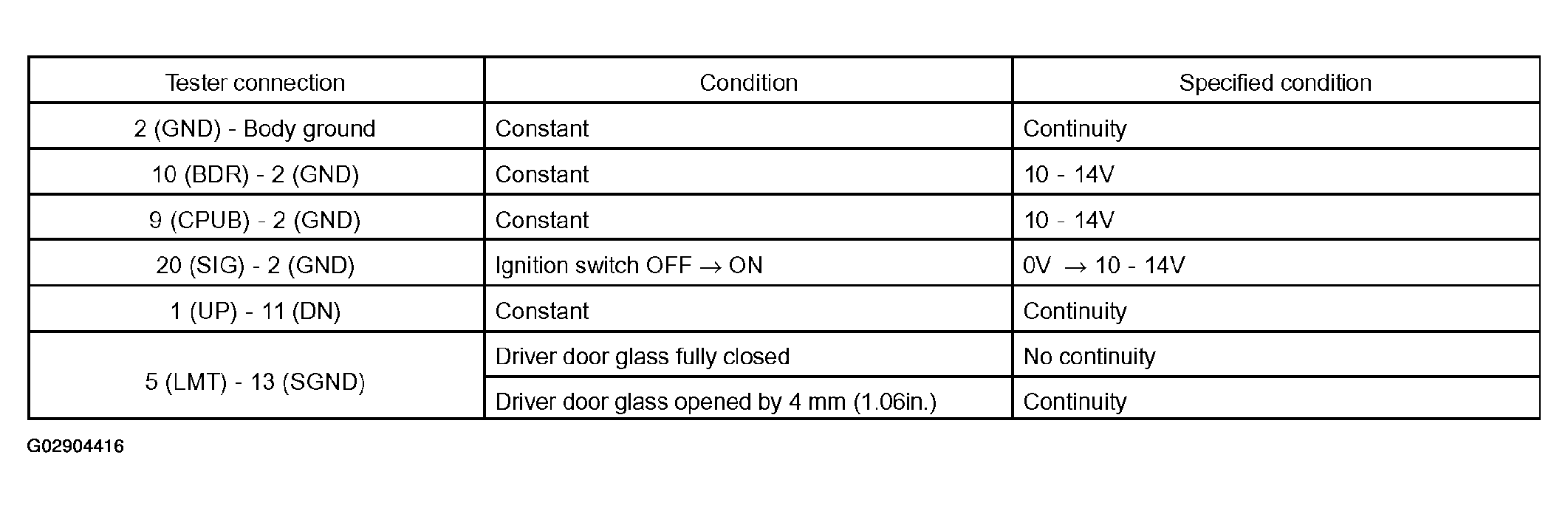

Fig 3: Tester Connection Specified Condition Table
G02904416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

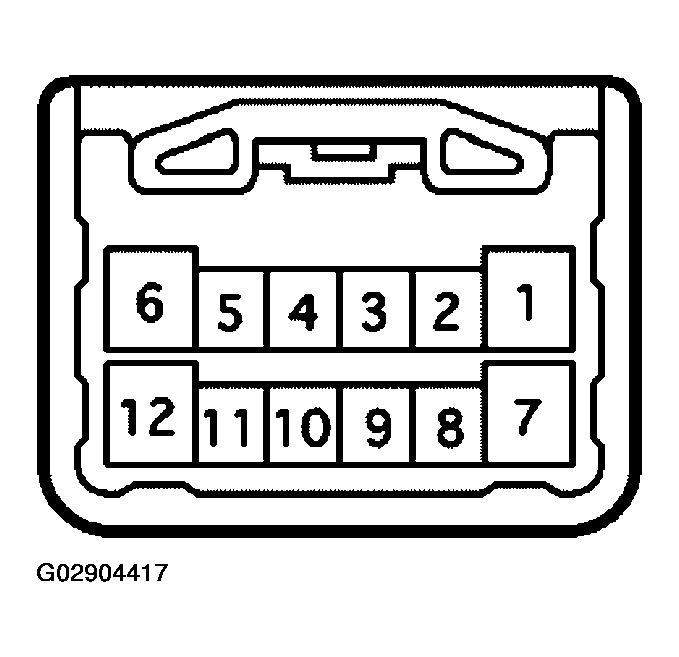

Fig 4: Power Window Switch Connector Terminal Identification
G02904417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

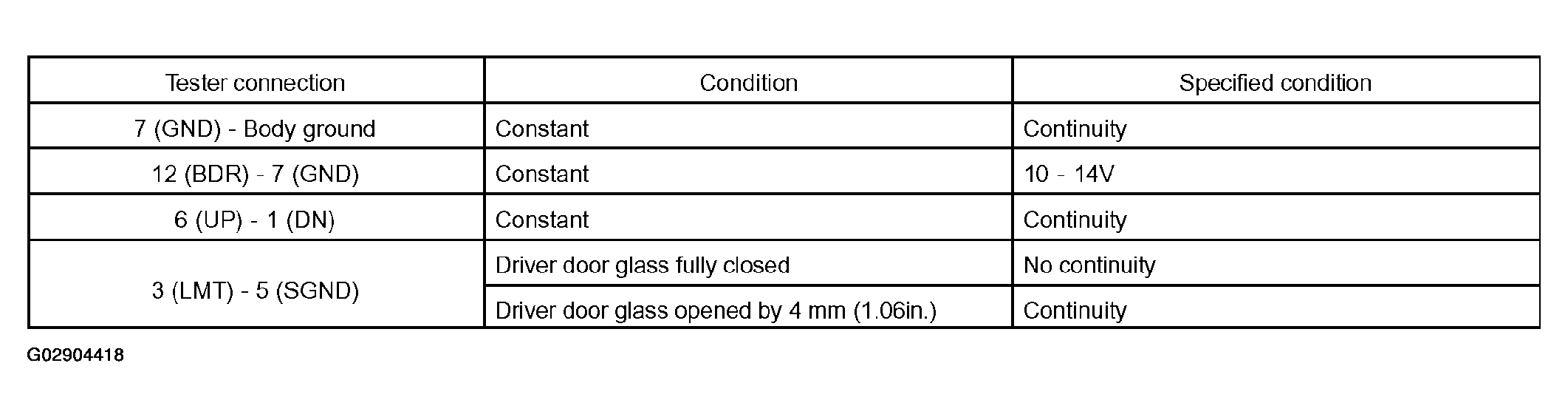

Fig 5: Tester Connection Specified Condition Table
G02904418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
