On-Vehicle Inspection

  1. REMOVE V-BANK COVER
  2. REMOVE INTAKE AIR CONNECTOR
  3. INSPECT INJECTOR RESISTANCE
    1. Disconnect the 8 injector connectors.
    2. Using an ohmmeter, measure the resistance between the terminals.

      Resistance: 13.4 - 14.2 Ω at 20°C (68°F)

      If the resistance is not as specified, replace the injector.

    3. Reconnect the 8 injector connectors.
  4. REINSTALL INTAKE AIR CONNECTOR
  5. REINSTALL V-BANK COVER

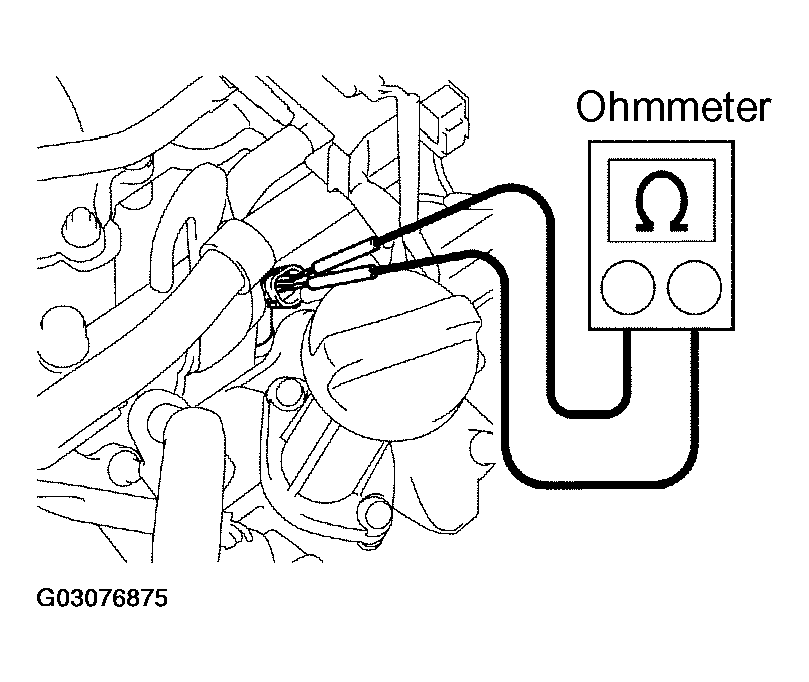

    Fig 1: Measuring Resistance Between Terminals Using An Ohmmeter
    G03076875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
