Knock Sensor: Inspection

REMOVE V-BANK COVER
REMOVE INTAKE AIR CONNECTOR
DISCONNECT THROTTLE BODY FROM INTAKE MANIFOLDS (See INSPECTION )
REMOVE UPPER AND LOWER INTAKE MANIFOLDS ASSEMBLY (See REMOVAL )
INSPECT KNOCK SENSOR 1, 2
1. Disconnect the knock sensor connectors.
2. Using an ohmmeter, check that there is no continuity between the terminal and body.

  Fig 1: Inspecting Knock Sensor 1, 2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If there is a continuity, replace the sensor with SST.

  SST 09816-30010

  Torque: 45 N.m (450 kgf.cm, 33 ft.lbf)
3. Reconnect the knock sensor connectors.
REINSTALL UPPER AND LOWER INTAKE MANIFOLDS ASSEMBLY (See INSTALLATION )
REINSTALL THROTTLE BODY TO INTAKE MANIFOLDS (See INSPECTION )
REINSTALL INTAKE AIR CONNECTOR
REINSTALL V-BANK COVER

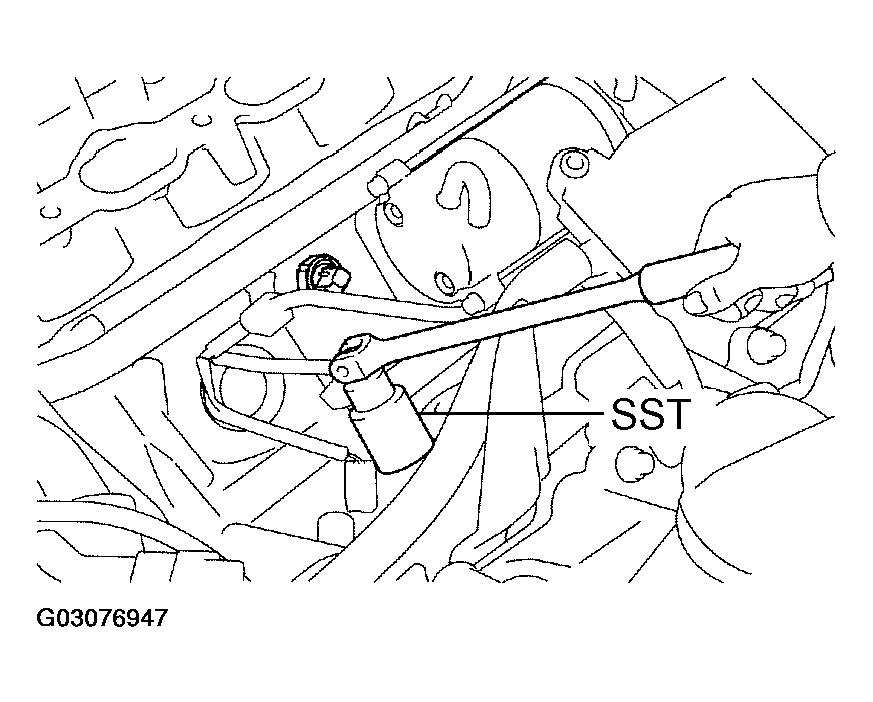

Fig 2: Replacing Sensor With SST
