VSV For Vapor Pressure Sensor: Inspection

REMOVE VSV
INSPECT VSV
1. Inspect VSV for open circuit.
  Using an ohmmeter, check that there is continuity between the terminals.

  Resistance: 30 - 36 Ω at 20°C (68°F)

  If there is no continuity, replace the VSV.

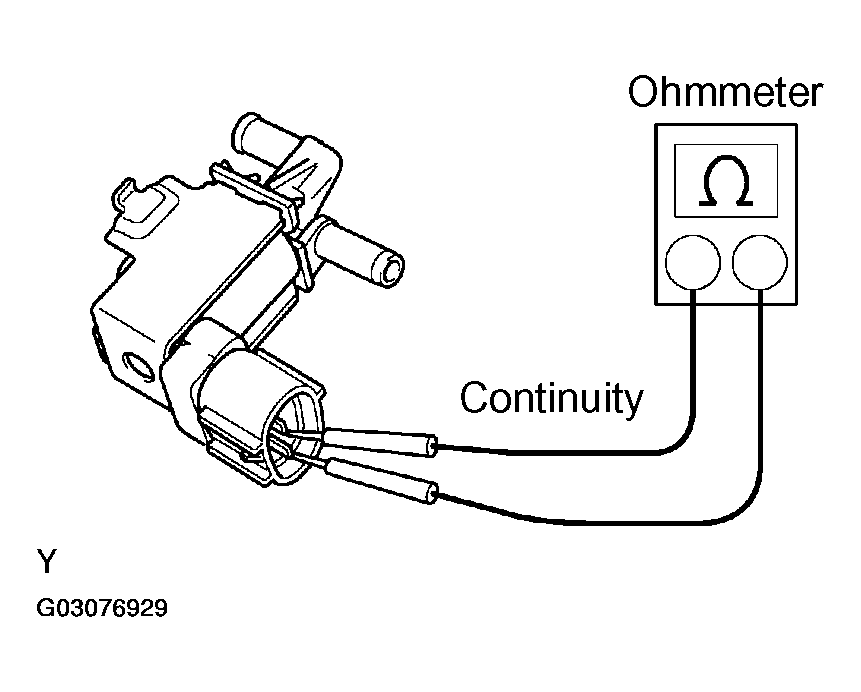

  Fig 1: Inspecting VSV For Open Circuit
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Inspect the VSV for ground.
  Using an ohmmeter, check that there is no continuity between each terminal and the body.

  If there is a continuity, replace the VSV.

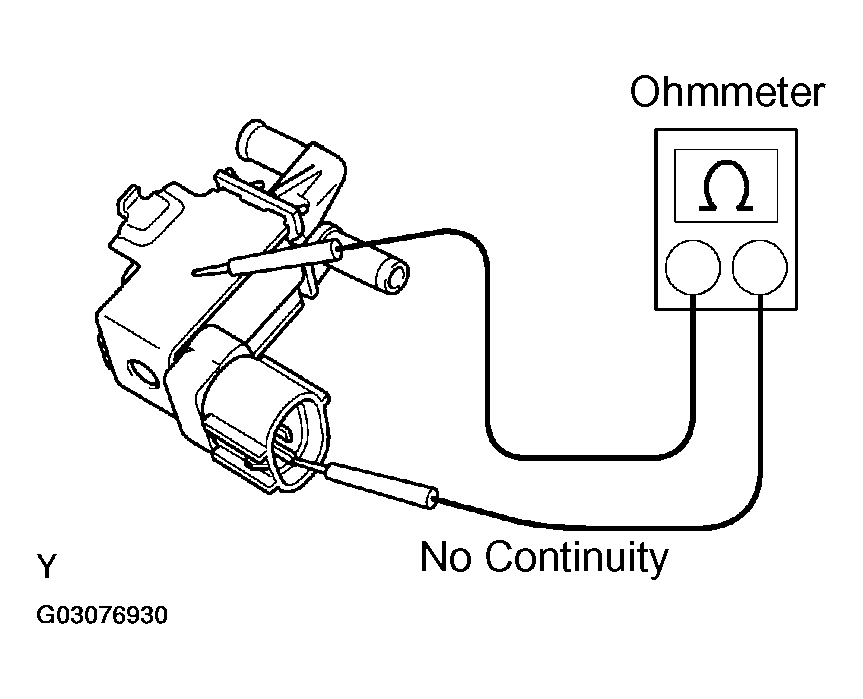

  Fig 2: Inspecting VSV For Ground
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Inspect the VSV operation.
  1. Check that air flows from the ports E to F.

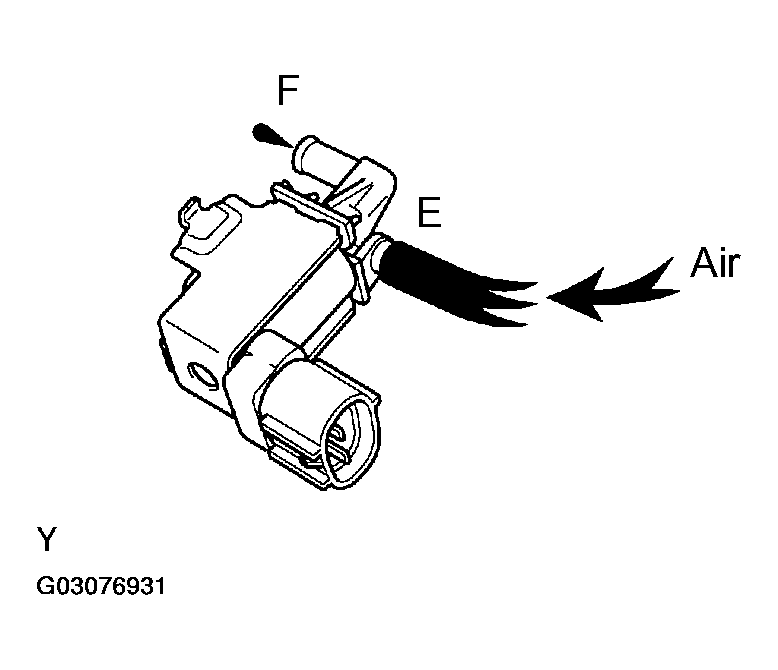

    Fig 3: Inspecting VSV Operation
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Apply the battery positive voltage across the terminals.
  3. Check that air flows from the ports E to F.
    If operation is not as specified, replace VSV.
REINSTALL VSV

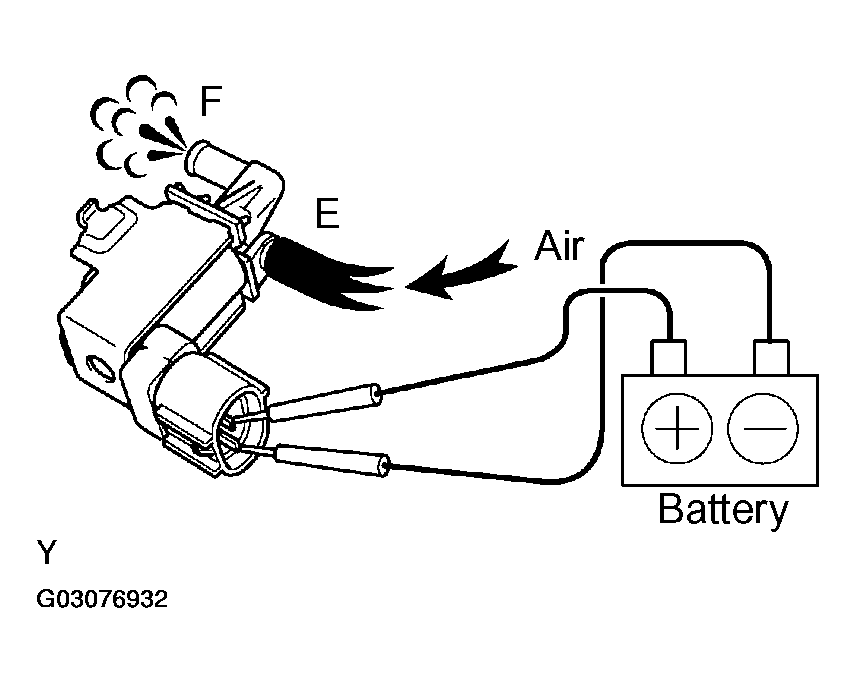

Fig 4: Applying Battery Positive Voltage Across Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
