Vapor Pressure Sensor: Components

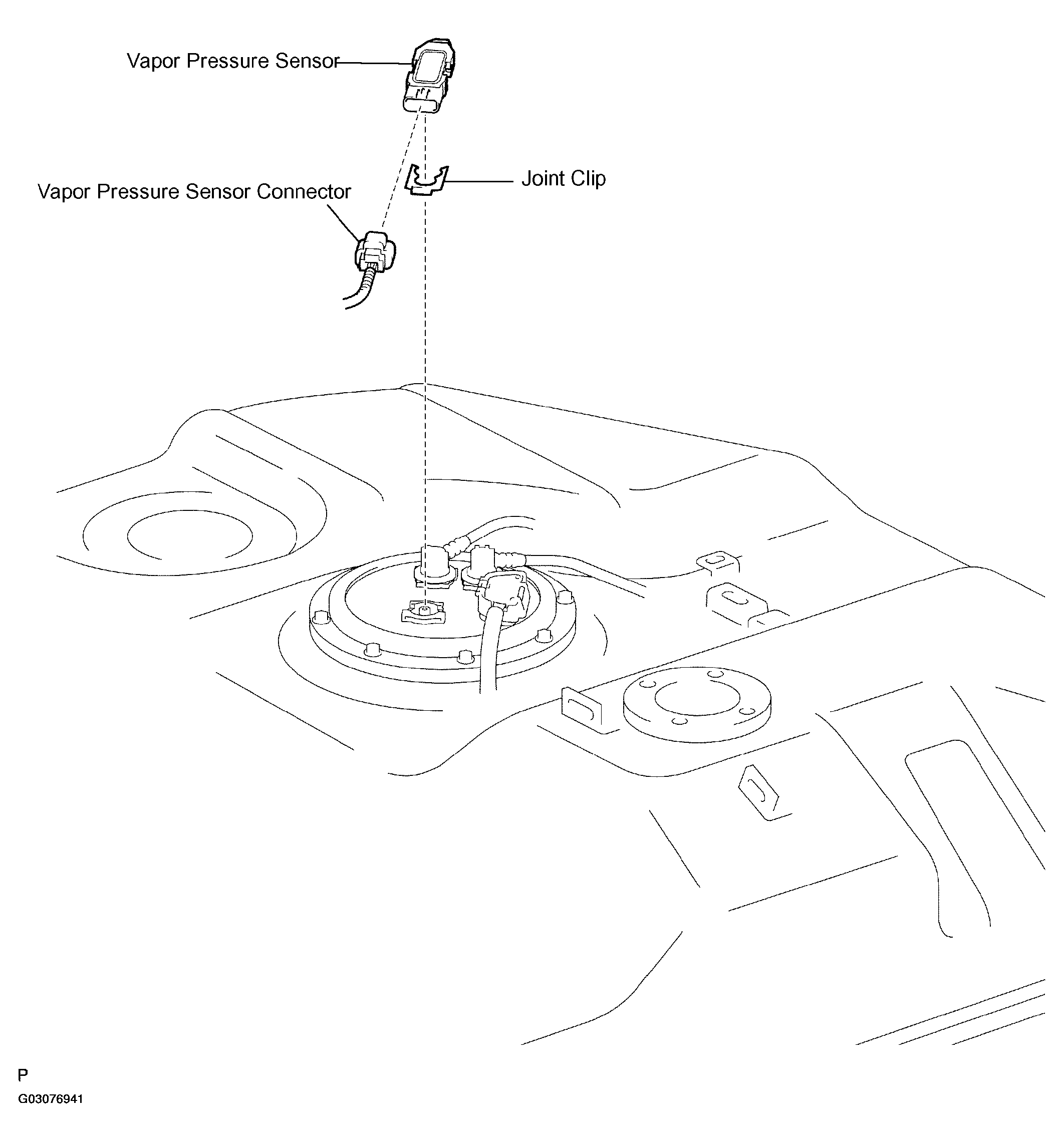

Fig 1: Identifying Vapor Pressure Sensor Components
G03076941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
