Ignition Coil: Removal

REMOVE V-BANK COVER
REMOVE INTAKE AIR CONNECTOR
DISCONNECT ENGINE WIRE FROM LH CYLINDER HEAD COVER
Disconnect the 2 wire clamps and engine wire.
DISCONNECT IGNITION COIL (WITH IGNITER) CONNECTORS
REMOVE IGNITION COILS (WITH IGNITER) FROM SPARK PLUGS
Remove the bolt, and pull out the ignition coil (with igniter). Remove the 8 ignition coils (with igniter).

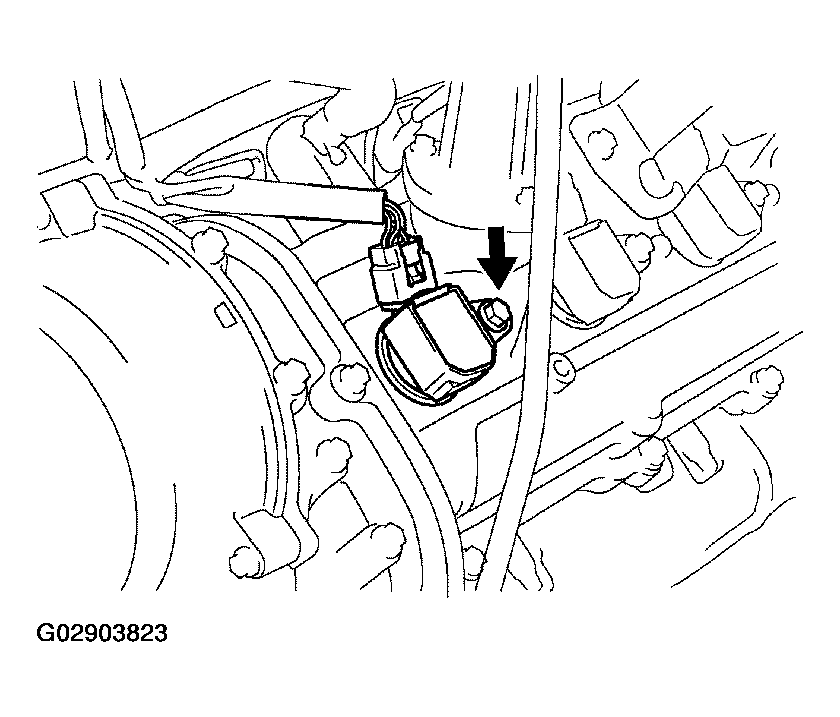

Fig 1: Removing Ignition Coil
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Torque: 7.5 N.m (80 kgf.cm, 66 in..lbf)
