Typical Malfunction Thresholds

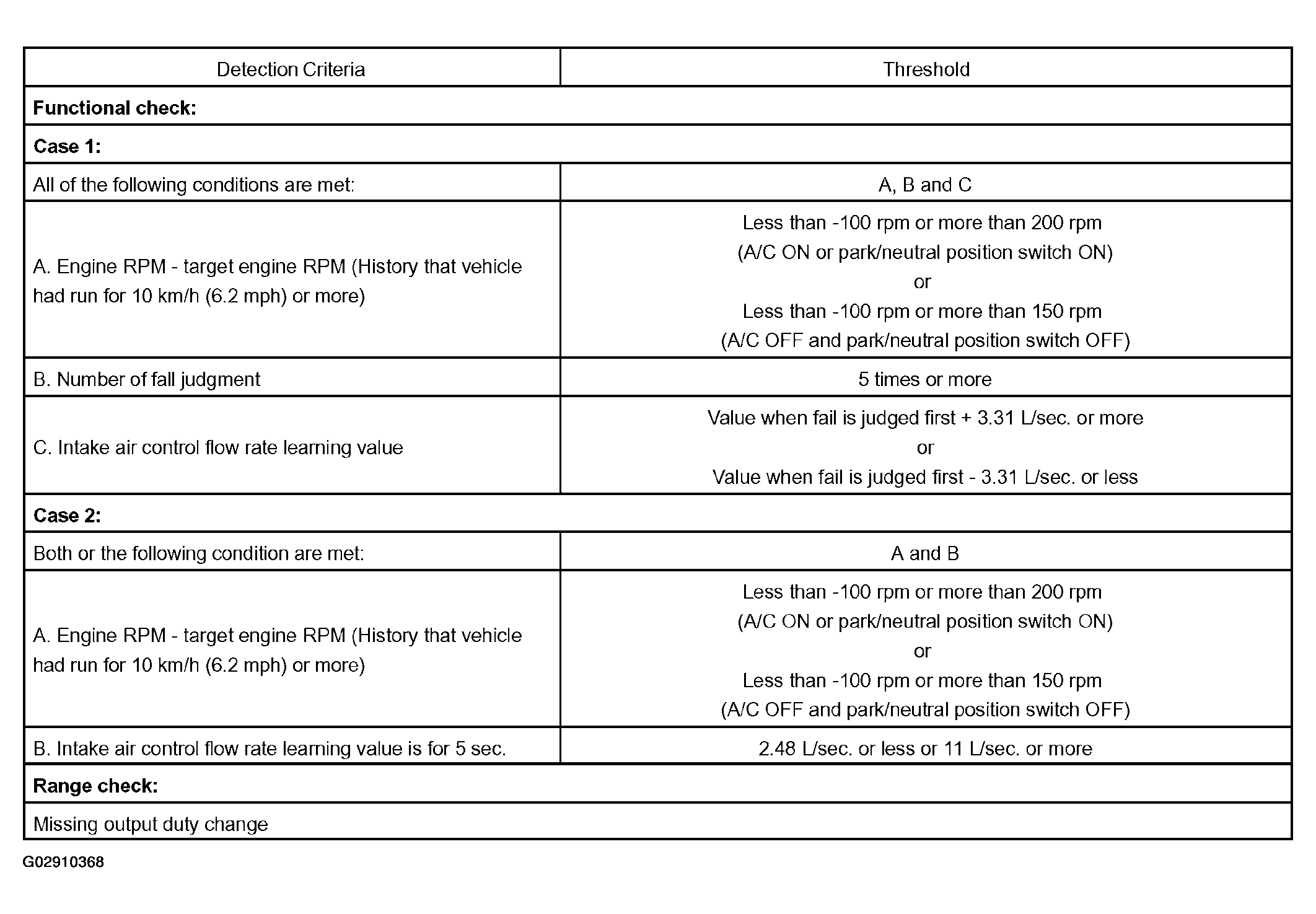

Fig 1: Typical Malfunction Thresholds Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
