Customer Problem Analysis Check

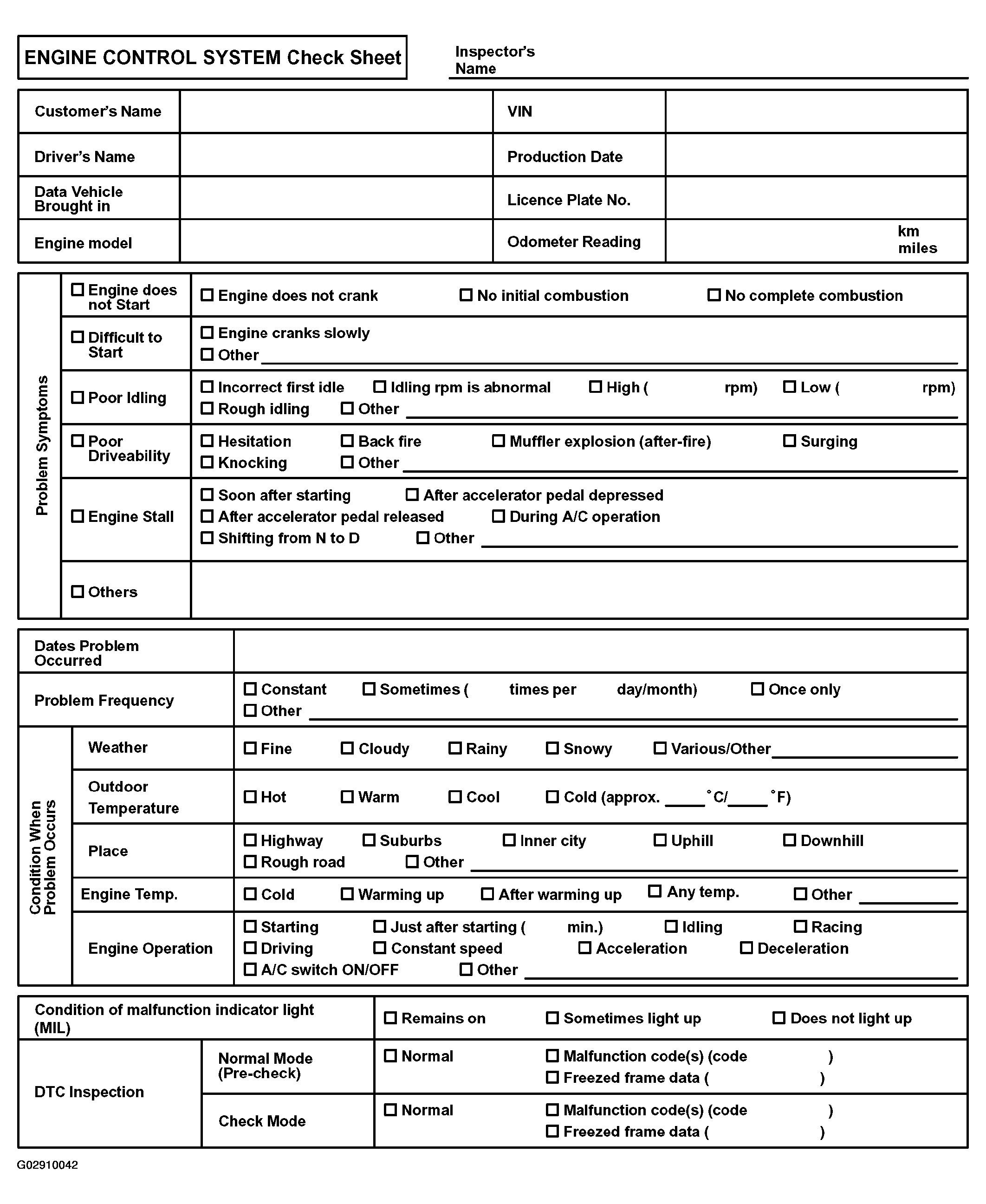

Fig 1: Problem Analysis Check Sheet
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
