How To Proceed With Troubleshooting

Troubleshoot in accordance with the procedure in Fig 1.

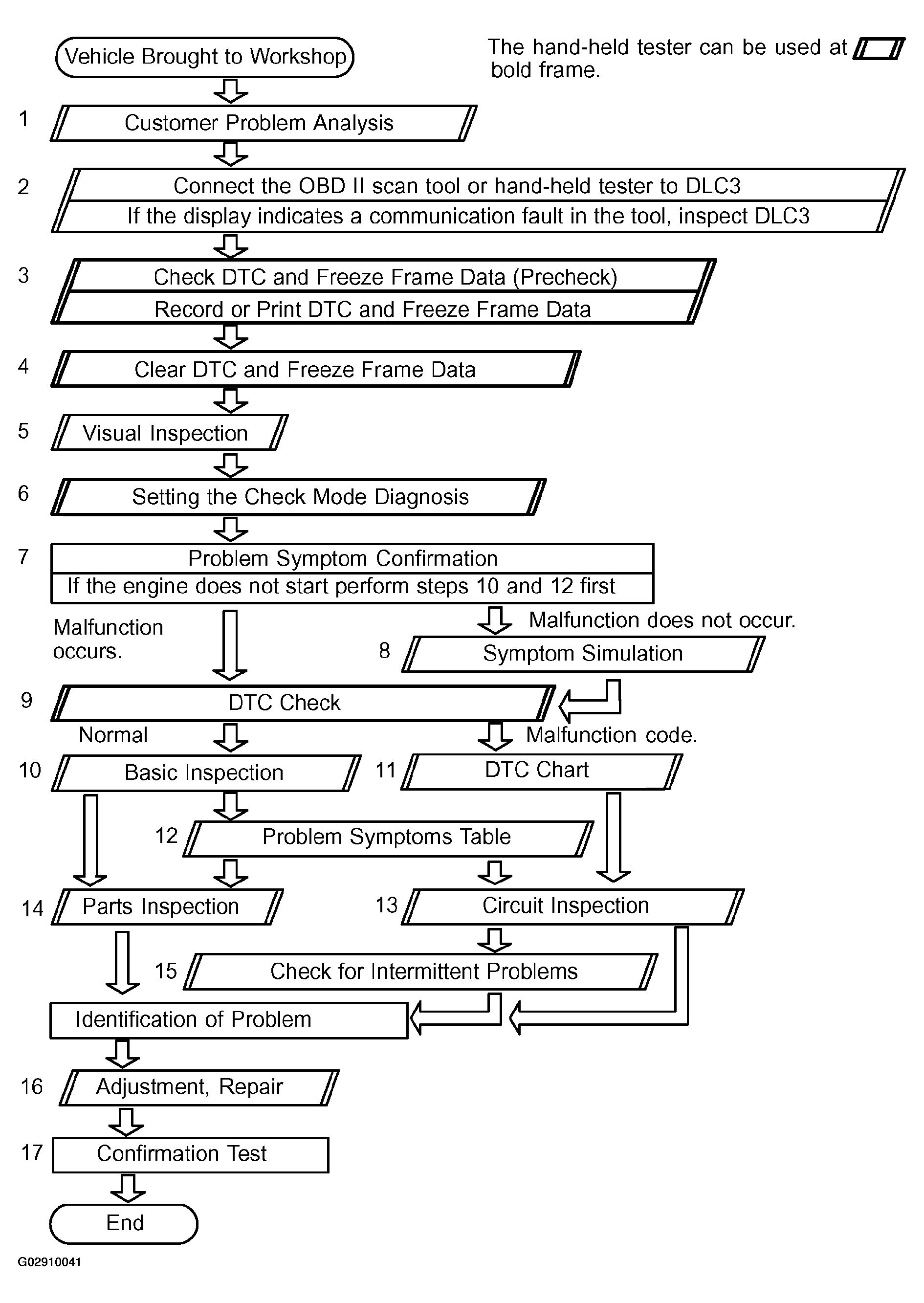

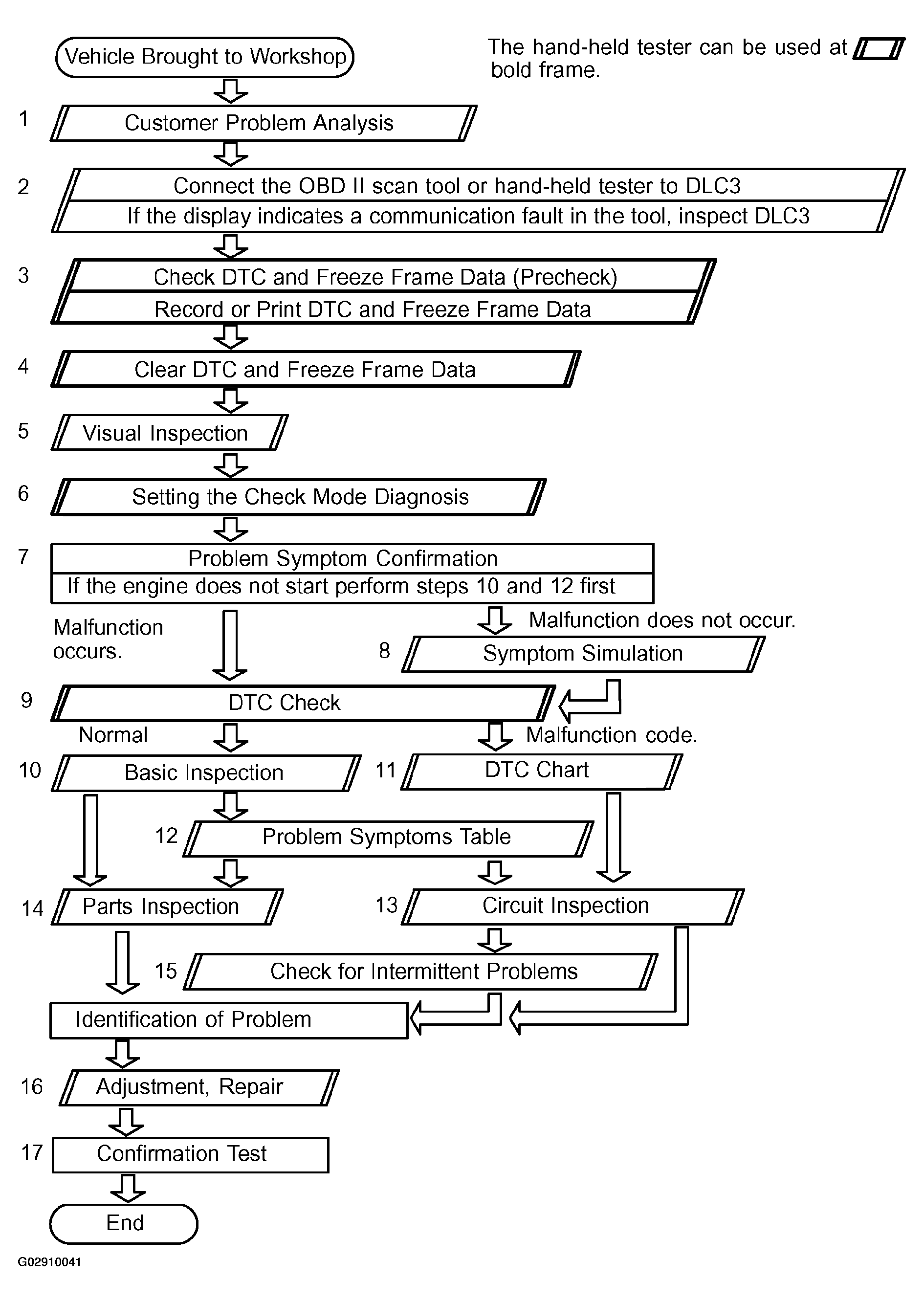

Fig 1: Troubleshooting Flow Chart
G02910041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
