General Information

WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

INDEX :
The search mechanism substitutes for a traditional index found in manuals. To assist you in verifying you have located the correct article, the applicable year(s) subcategory and model are given at the top of every article.
PRECAUTION :
In each article, PRECAUTIONS may be given or referred to that pertain to all repair operations contained in that article.

Read these precautions before starting any repair task
TROUBLESHOOTING :
TROUBLESHOOTING tables may be included for each system to help you diagnose the problem and identify the cause. The fundamentals of how to proceed with troubleshooting are described in HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS . Be sure to read this before performing troubleshooting.
PREPARATION :
Some articles list the SST (Special Service Tools), recommended tools, equipment, lubricant and SSM (Special Service Materials) which should be prepared before beginning the operation and explains the purpose of each one.
REPAIR PROCEDURES :
Most repair operations begin with an exploded view illustration. It identifies the components and shows how the parts fit together.

For example, see Fig 1.

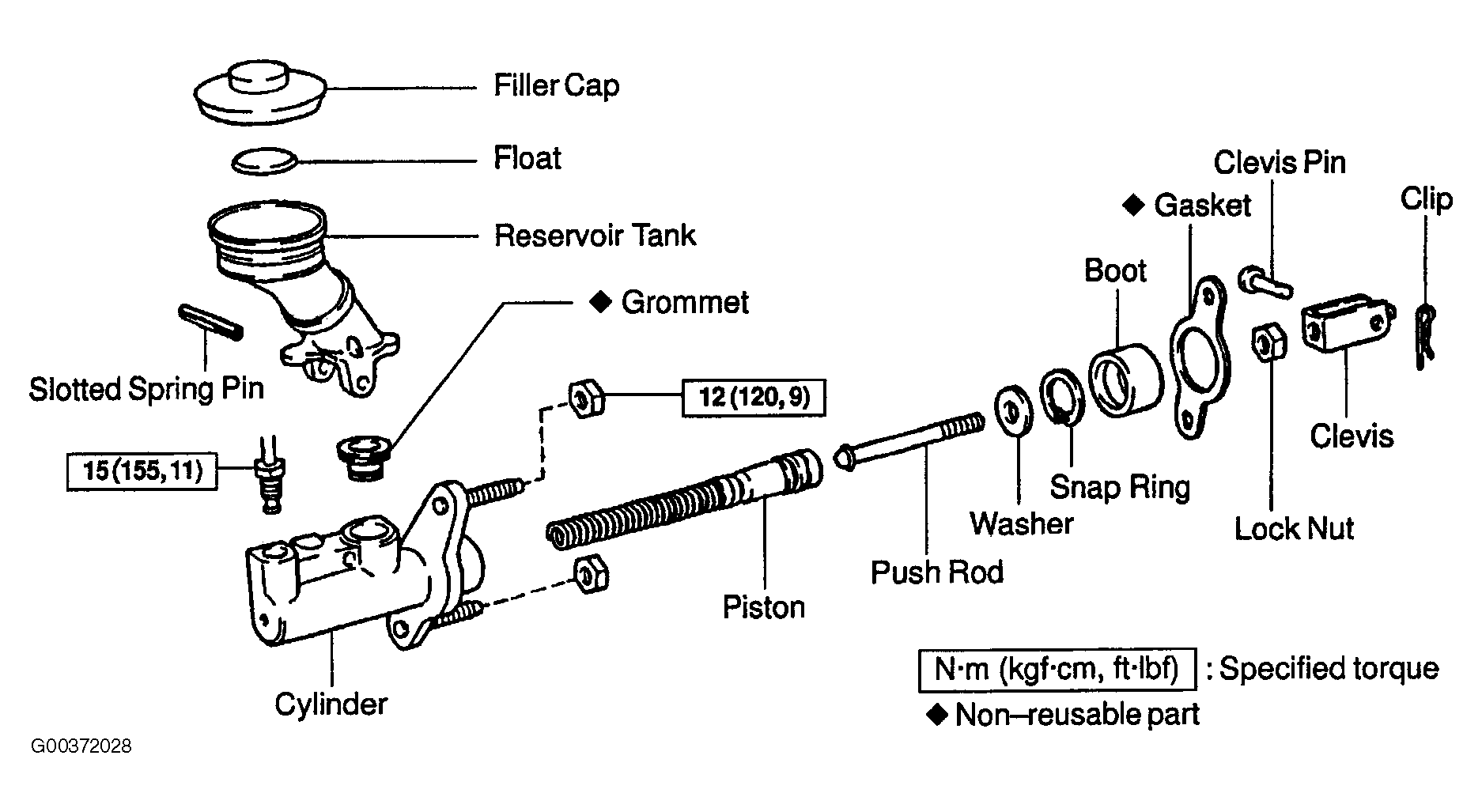

Fig 1: Exploded View Of Master Cylinder
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

The procedures are presented in a step-by-step format:
- Illustrations show what to do and where to do it.
- The task headings tells what to do.
- The detailed text tells how to perform the task and gives other information such as specifications and warnings.
This format provides the experienced technician with a FAST TRACK to the information needed. The upper case task heading, can be read at a glance when necessary, and the text below it provides detailed information. Important specifications and warnings always stand out.
REFERENCES : have been kept to a minimum. However, when they are required you are given a link to the procedure or key words to search for in the event of a multi-year article.
SPECIFICATIONS : are presented in bold type throughout the text or in a torque table. You never have to leave the article to look up specifications.
WARNINGS, CAUTIONS AND NOTES :
- WARNINGS, indicate the possibility of personal injury if the procedure is not properly performed.
- CAUTIONS: indicate the possibility of damage to the vehicle if the procedure is not properly performed.
- NOTES: are helpful hints to assist technicians in completing the procedure.
MEASUREMENTS : In these articles, measurements are normally listed in English and metric.
