Power Steering Gear: Components

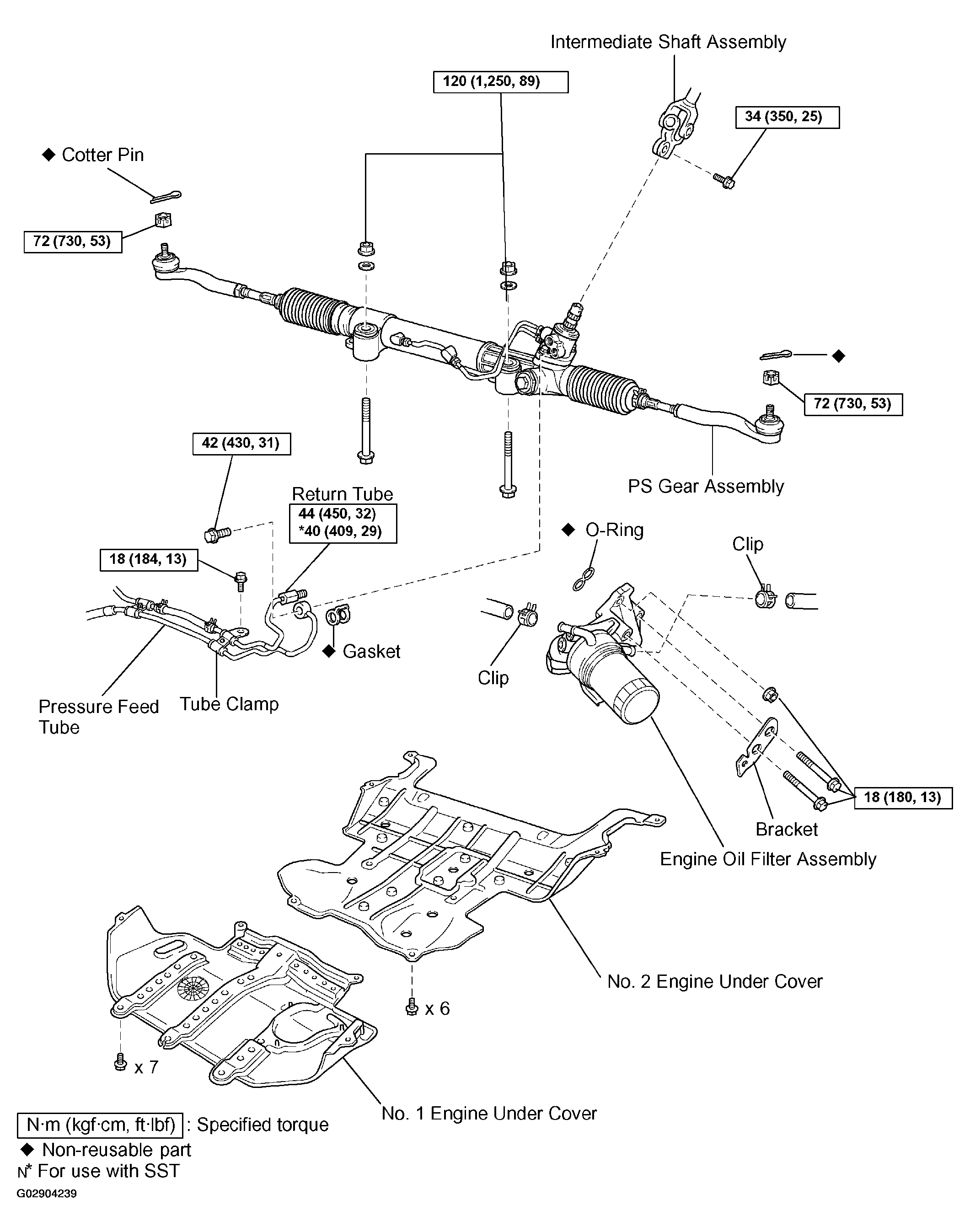

Fig 1: Removing/Installing Power Steering Gear Assembly (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

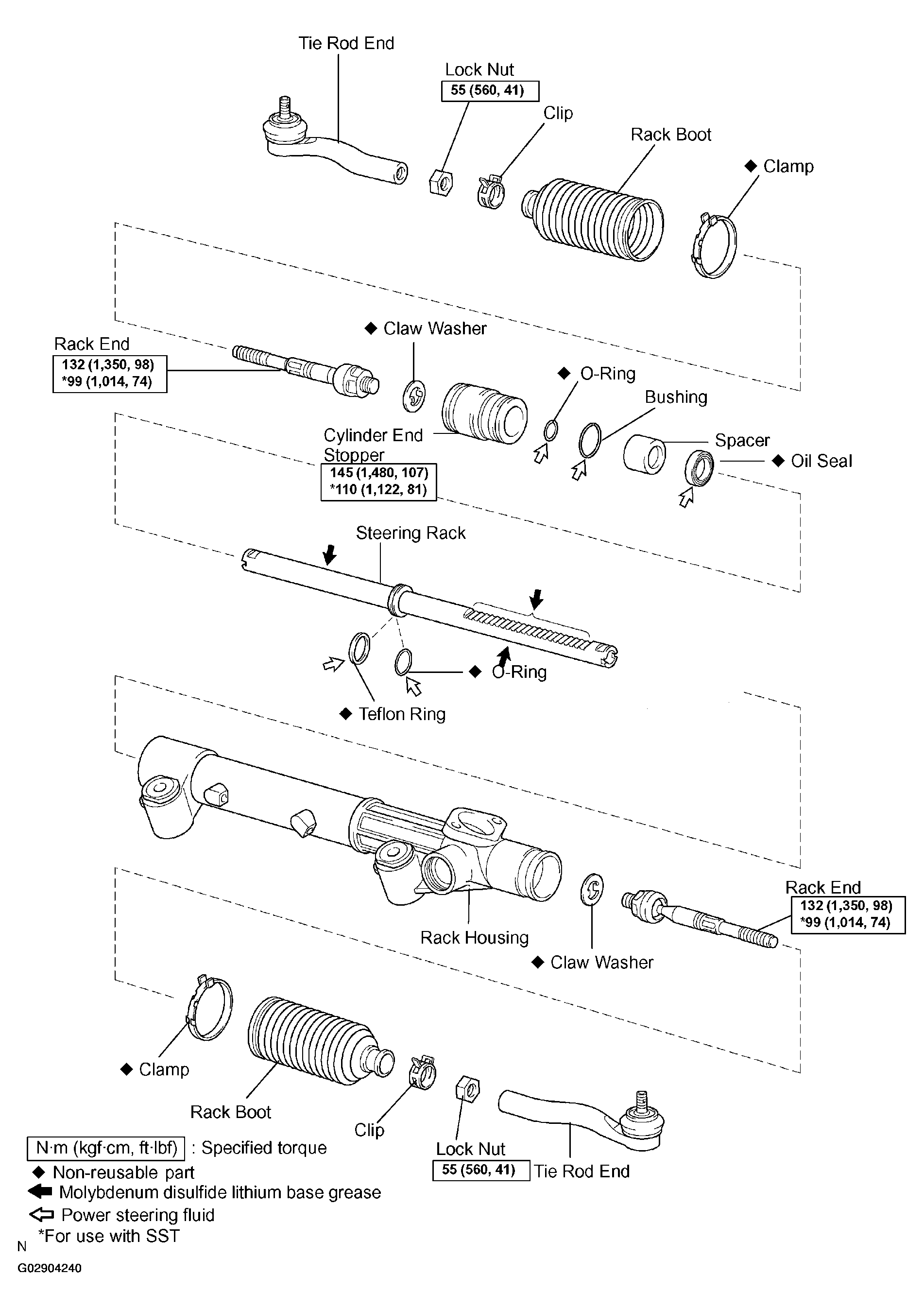

Fig 2: Removing/Installing Power Steering Gear Assembly (2 of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

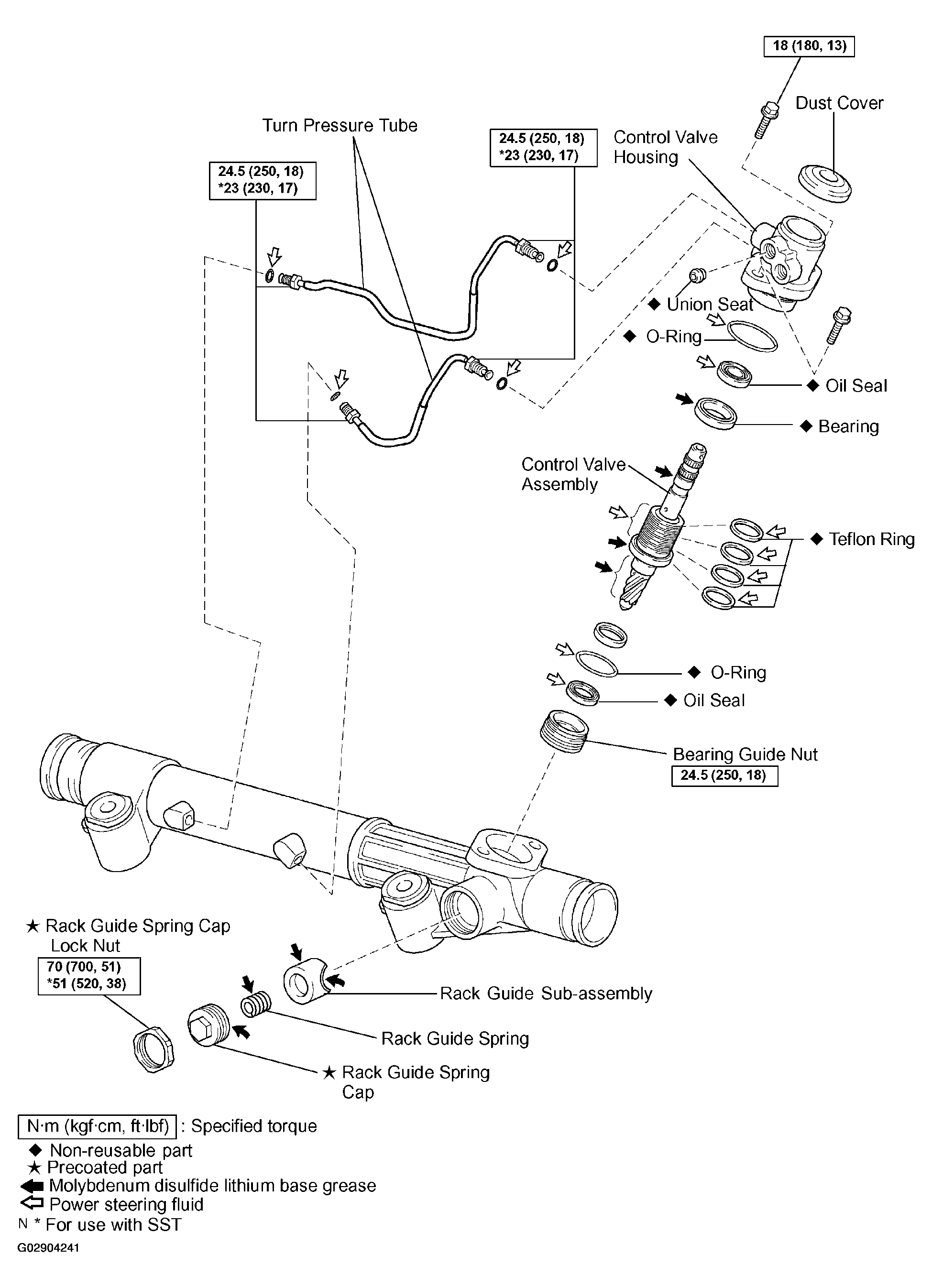

Fig 3: Removing/Installing Power Steering Gear Assembly (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
