DTC P0125: Insufficient Coolant Temperature for Closed Loop Fuel Control
>>
Monitor Strategy
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Monitor Strategy

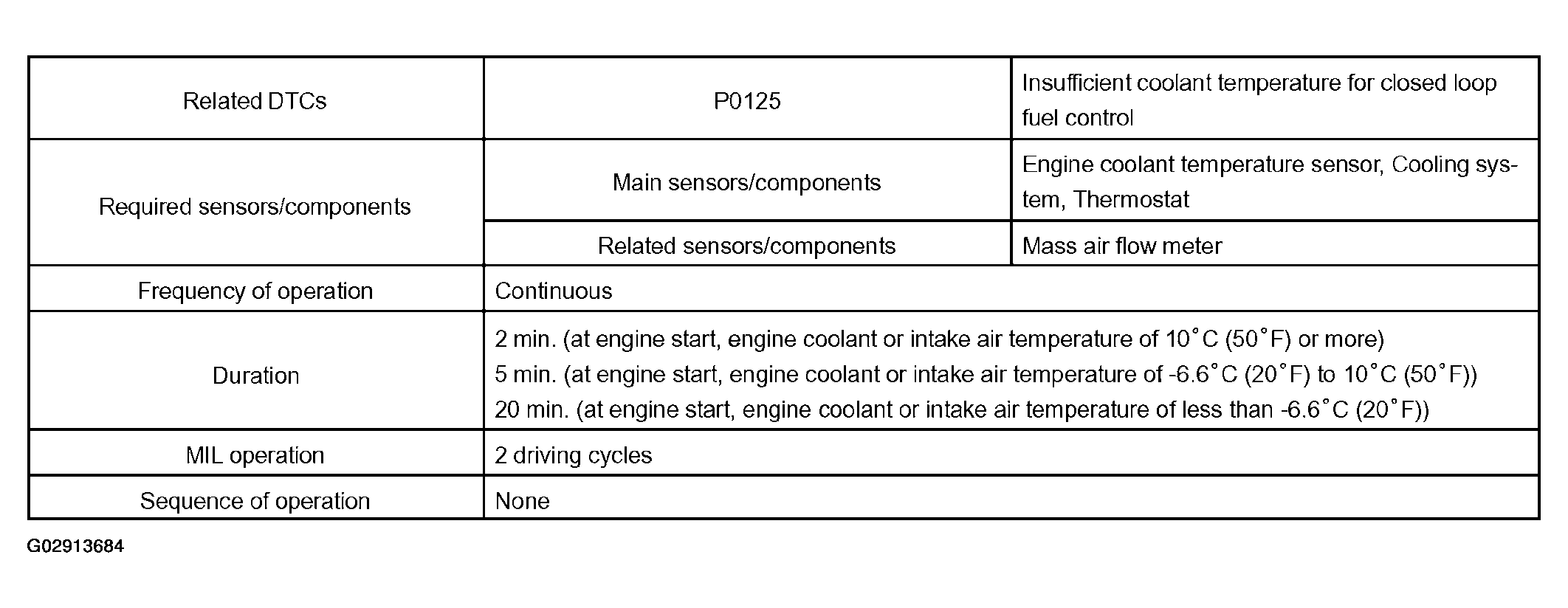

Fig 1: DTC P0125 Monitor Strategy Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
