Inspection Procedure

Hand-held tester:

1. Connect hand-held tester and check operation of fuel pump (See  PRE-CHECK  ).
   1. OK : Proceed to next circuit inspection shown on problem symptoms table (See  PROBLEM SYMPTOMS TABLE  ).
   2. NG : Go to Next Step
2. Check for ECM power source circuit (See  ECM Power Source Circuit  ).
   1. NG : Repair or replace.
   2. OK : Go to Next Step
3. Check circuit opening relay (Marking: C/OPN) (See  INSPECTION  ).
   1. NG : Replace circuit opening relay.
   2. OK : Go to Next Step
4. Check voltage between terminal FC of ECM and body ground.

   PREPARATION:

   1. Disconnect the ECM with connector from body panel (See ENGINE CONTROL MODULE (ECM) ).
   2. Turn the ignition switch ON.

   CHECK:

   Measure the voltage between the terminal FC of the ECM and body ground.

   OK:

   1. Voltage: 9 to 14 V

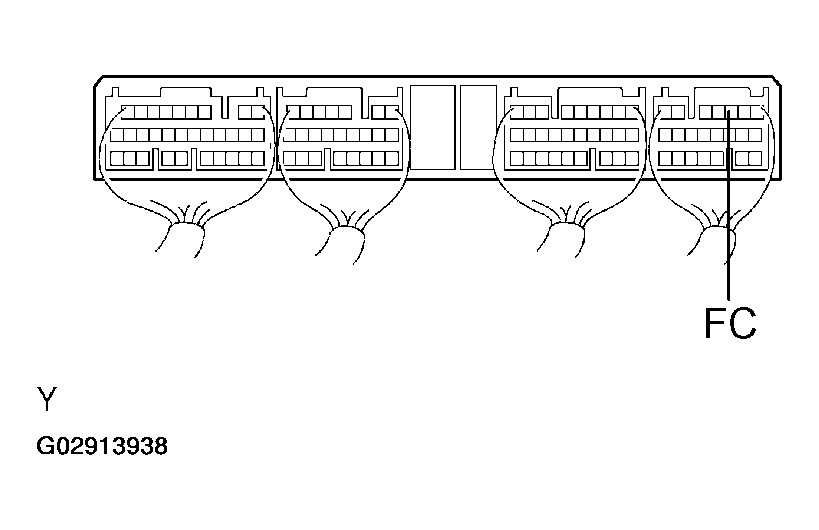

   Fig 1: Locating FC Connector Terminal Of ECM

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. OK : Go to step 5.
   2. NG : Check for open in harness and connector between EFI MAIN relay and circuit opening relay (Marking: C/OPN), circuit opening relay and ECM (See  PROCEDURE  ).
5. Check fuel pump (See  ON-VEHICLE INSPECTION  ).
   1. NG : Repair or replace fuel pump.
   2. OK : Go to Next Step
6. Check for open in harness and connector between circuit opening relay and fuel pump and body ground (See  PROCEDURE  ).
   1. NG : Repair or replace harness and connector.
   2. OK : Check and replace ECM (See  PROCEDURE  ).

OBD II scan tool (excluding hand-held tester):

1. Check operation of fuel pump.

   PREPARATION:

   1. Disconnect the ECM with connector from body panel (See ENGINE CONTROL MODULE (ECM) ).
   2. Turn the ignition switch ON.

   CHECK:

   1. Connect between the terminal FC of the ECM connector and body ground.
   2. Check for fuel pressure in the fuel inlet hose when it is pinched off.

   OK:

   1. There is pressure in fuel inlet hose.

   HINT:

   At this time, you will hear a fuel return flowing noise.

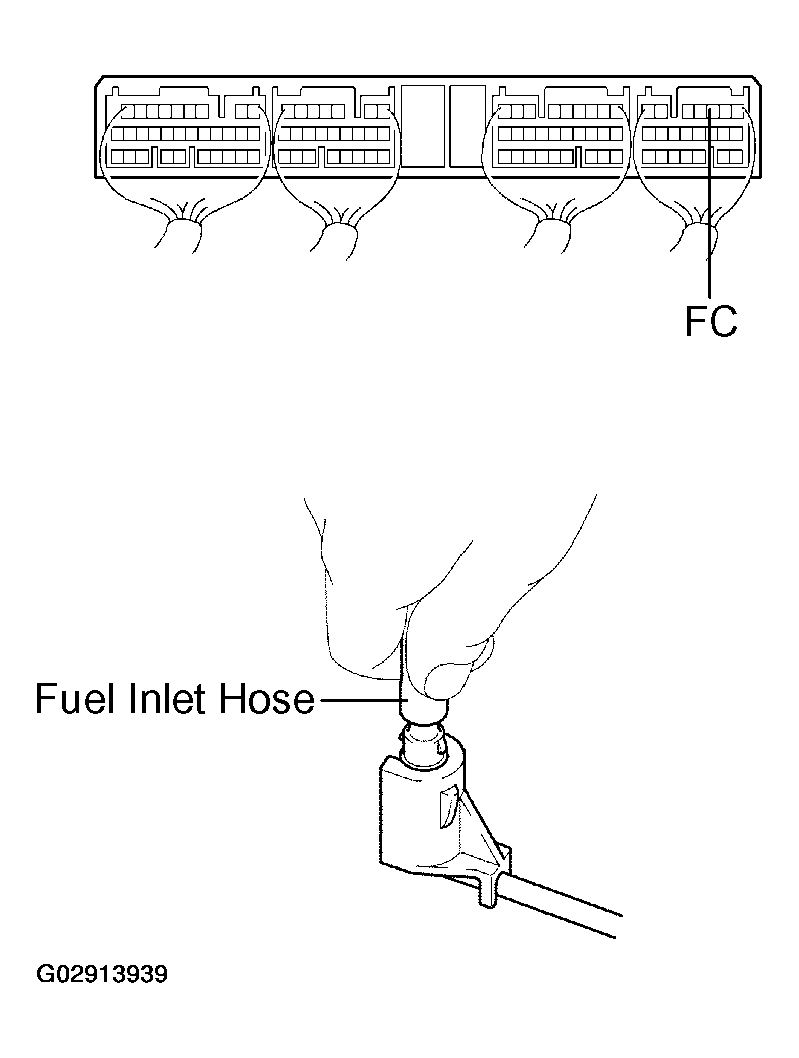

   Fig 2: Pinching Off Fuel Inlet Hose For Checking Fuel Pressure

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. OK : Proceed to next circuit inspection shown on problem symptoms table (See  PROBLEM SYMPTOMS TABLE  ).
   2. NG : Go to Next Step
2. Check for ECM power source circuit (See  ECM Power Source Circuit  ).
   1. NG : Repair or replace.
   2. OK : Go to Next Step
3. Check circuit opening relay (Marking: C/OPN) (See  INSPECTION  ).
   1. NG : Replace circuit opening relay.
   2. OK : Go to Next Step
4. Check voltage between terminal FC of ECM and body ground (See  Fuel Pump Control Circuit  , step 4).
   1. OK : Go to step 5.
   2. NG : Check for open in harness and connector between EFI MAIN relay and circuit opening relay (Marking: C/OPN), circuit opening relay and ECM (See  PROCEDURE  ).
5. Check fuel pump (See  ON-VEHICLE INSPECTION  ).
   1. NG : Repair or replace fuel pump.
   2. OK : Go to Next Step
6. Check for open in harness and connector between circuit opening relay and fuel pump and body ground (See  PROCEDURE  ).
   1. NG : Repair or replace harness and connector.
   2. OK : Check and replace ECM (See  PROCEDURE  ).
