Fuel Pump Control Circuit: Wiring Diagram

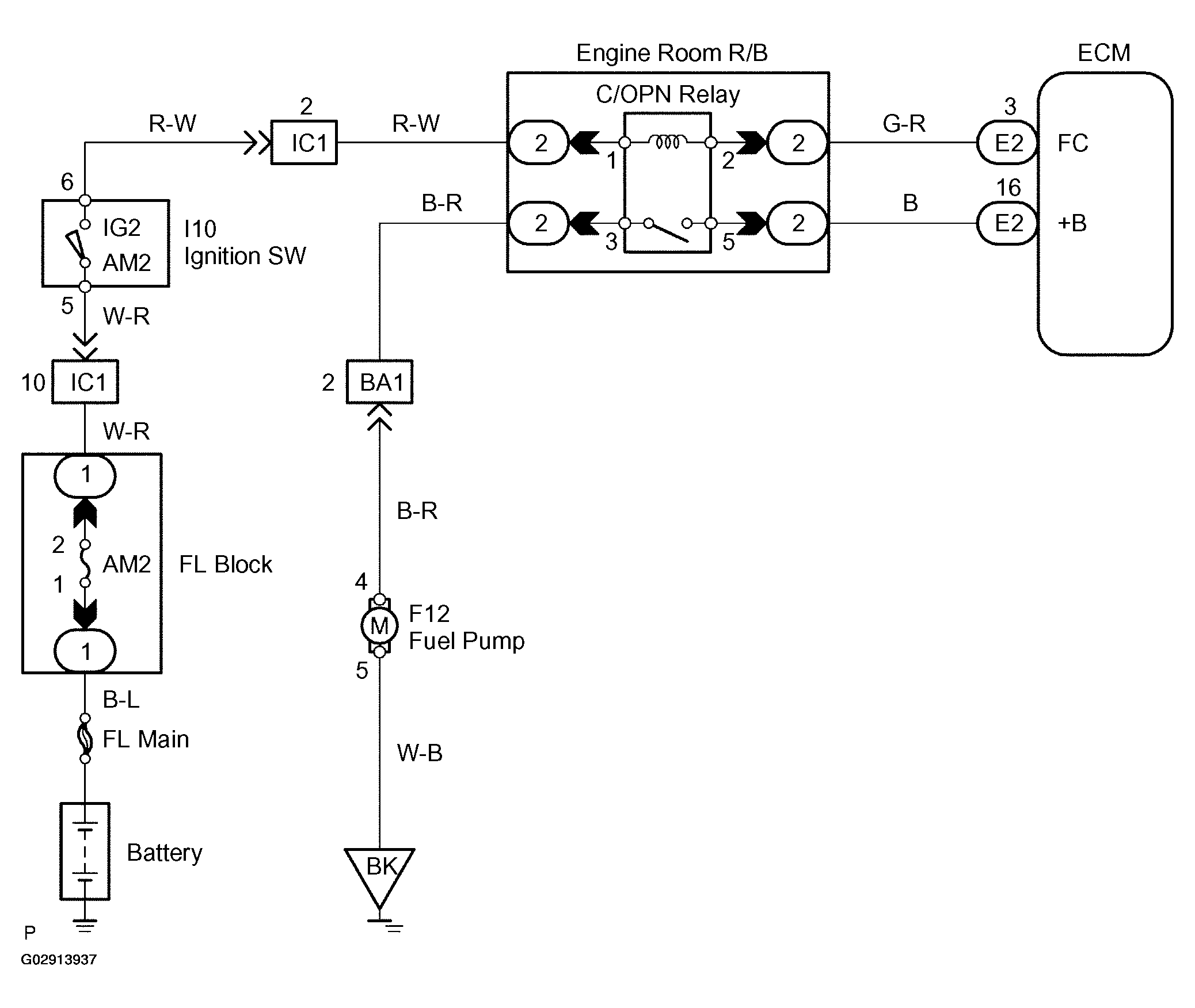

Fig 1: Wiring Diagram - Fuel Pump Control Circuit
G02913937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
