How To Proceed With Troubleshooting

Troubleshoot in accordance with the procedure on the following pages.

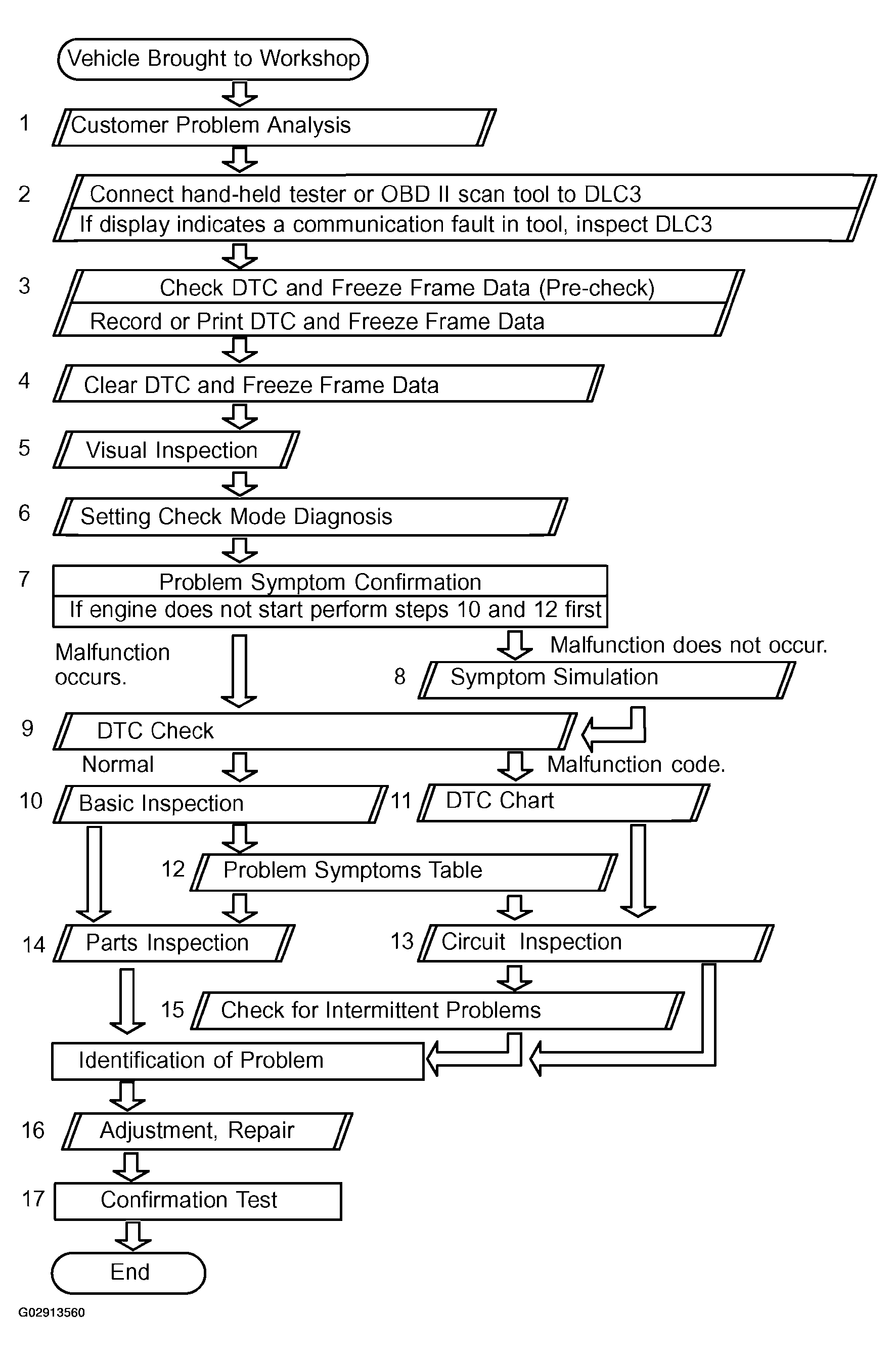

Fig 1: Engine Diagnostics Troubleshooting Flow Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
