Confirmation Driving Pattern

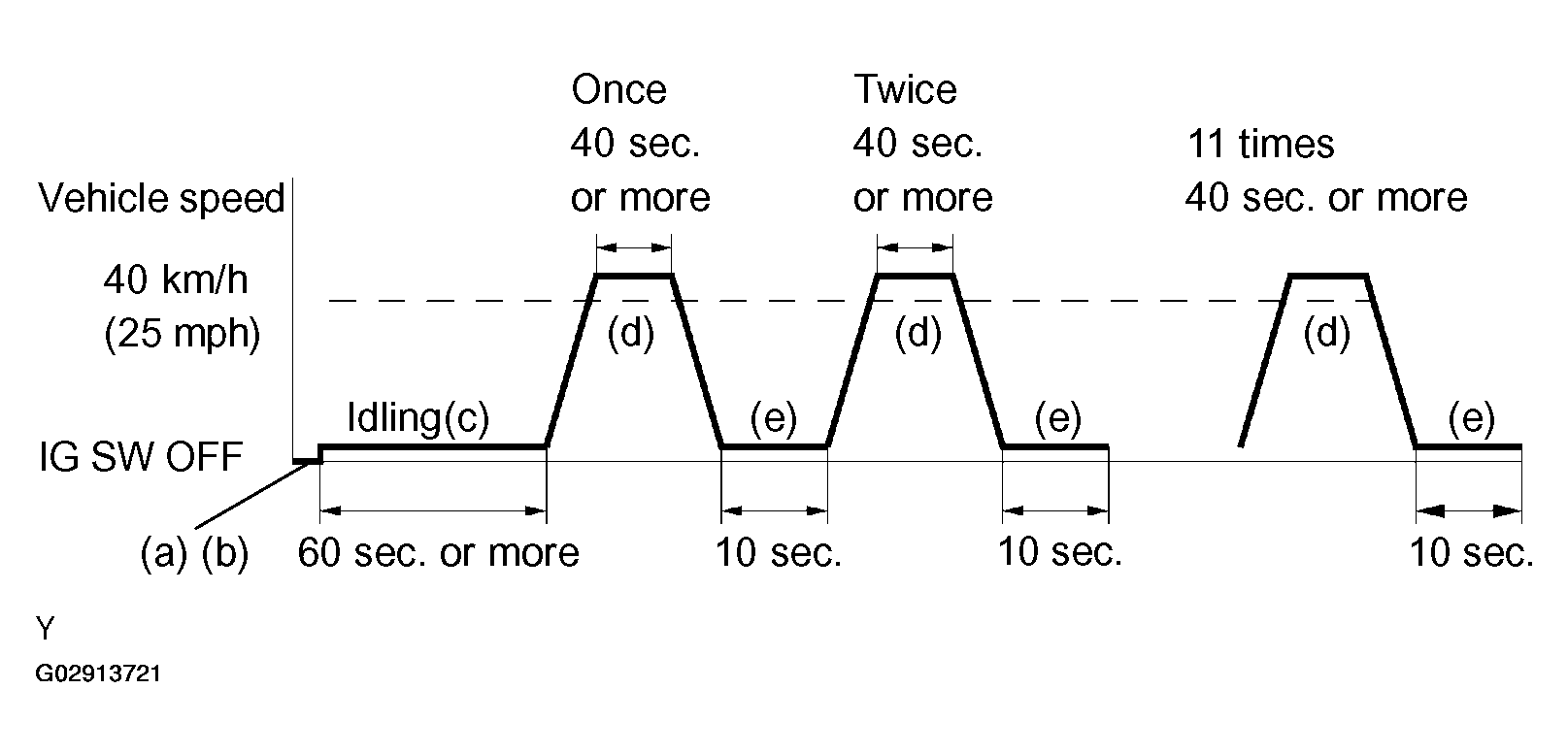

Fig 1: Driving Pattern

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Connect the hand-held tester to the DLC3.
Switch the hand-held tester from "normal mode" to "check mode" (See PRE-CHECK ).
Start the engine and let the engine idle for 60 seconds or more.
Drive the vehicle at 40 km/h (25 mph) or more for 40 seconds or more.
Let the engine idle for 10 seconds or more.
Preform steps (d) to (e) 11 times.

HINT:

While performing the steps (d) to (e) 11 times, drive the vehicle at over 65 km/h (40 mph) and force the fuel cut happen for over 3 seconds.
If a malfunction exists, the MIL will be indicated on the multi information display during step (f).

NOTE: If the conditions in this test are not strictly followed, detection of the malfunction will not be possible.
If you do not have a hand-held tester, turn the ignition switch OFF after performing steps (c) to (f), and then perform steps (c) to (f) again.
