DTC P0505: Idle Air Control System (SMT)
>>
Typical Enabling Condition
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Typical Enabling Condition

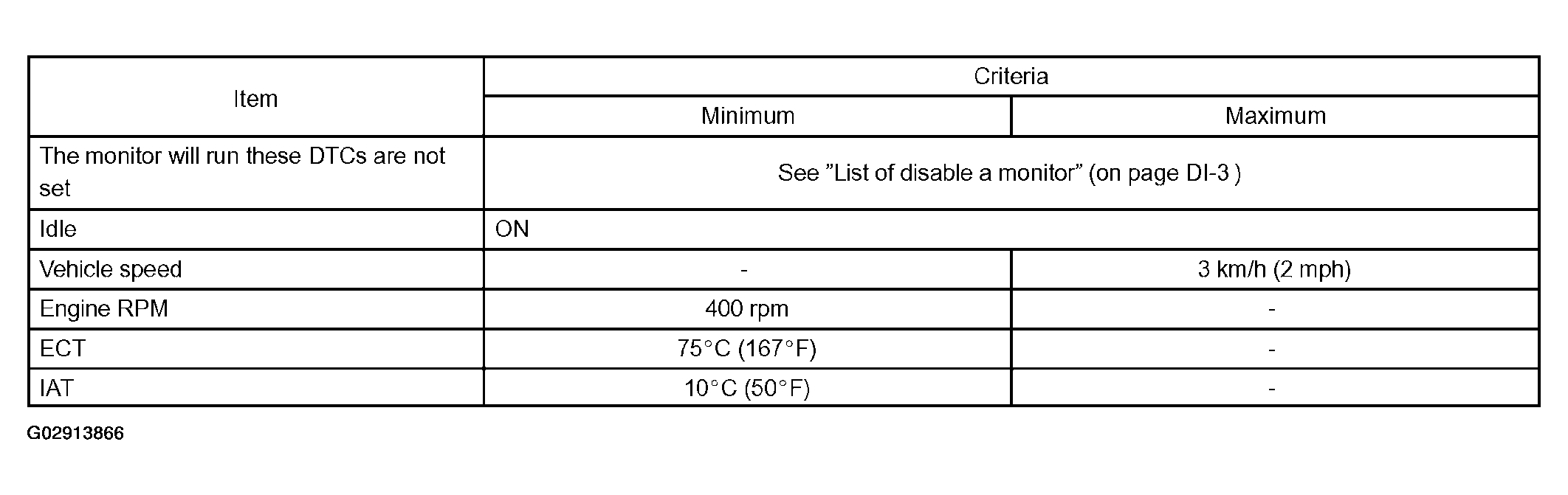

Fig 1: Typical Enabling Condition Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
