Inspection Procedure

HINT:

This DTC chart is based on the premise that the engine is cranked normally. If the engine is not cranked, proceed to the problem symptoms table on PROBLEM SYMPTOMS TABLE .

Hand-held tester:

1. Check STA signal.

   PREPARATION:

   1. Connect the hand-held tester to the DLC3.
   2. Turn the ignition switch ON and push the hand-held tester main switch ON.

   CHECK:

   Read the STA signal on the hand-held tester while the starter is operating.

   OK:

   IGNITION SWITCH POSITION



   Ignition Switch Position	ON	START
   STA Signal	OFF	ON

   1. OK : Proceed to next circuit inspection shown on problem symptoms table (See  PROBLEM SYMPTOMS TABLE  ).
   2. NG : Go to Next Step
2. Check for open in harness and connector between ECM and starter relay (Marking: ST) (See  PROCEDURE  ).
   1. NG : Repair or replace harness and connector.
   2. OK : Check and replace ECM (See  PROCEDURE  ).

OBD II scan tool (excluding hand-held tester):

1. Check voltage between terminal STA of ECM connector and body ground.

   PREPARATION:

   1. Disconnect the ECM with connector from body panel (See ENGINE CONTROL MODULE (ECM) ).
   2. Turn the ignition switch ON.

   CHECK:

   Measure the voltage between the terminal STA of the ECM connector and body ground during the engine cranking.

   OK:

   1. Voltage: 6 V or more

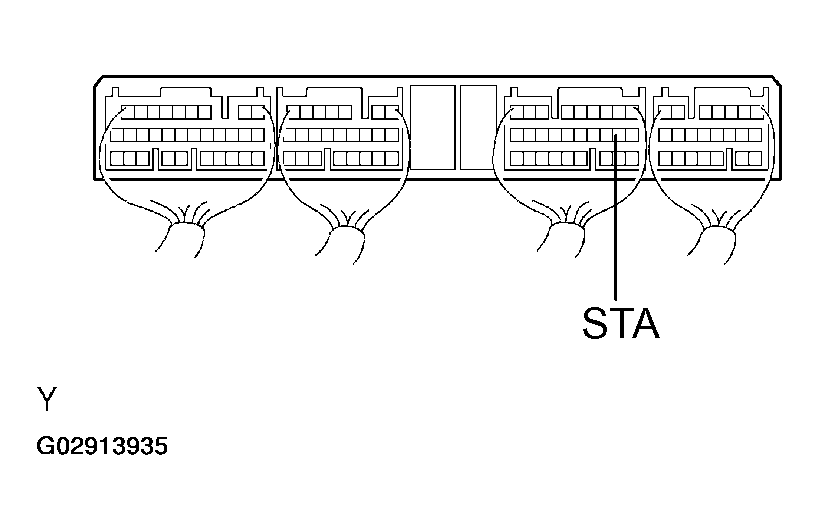

   Fig 1: Locating STA Connector Terminal Of ECM

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. OK : Proceed to next circuit inspection shown on problem symptoms table (See  PROBLEM SYMPTOMS TABLE  ).
   2. NG : Go to Next Step
2. Check for open in harness and connector between ECM and starter relay (Marking: ST) (See  PROCEDURE  ).
   1. NG : Repair or replace harness and connector.
   2. OK : Check and replace ECM (See  PROCEDURE  ).
