Terminals Of ECM

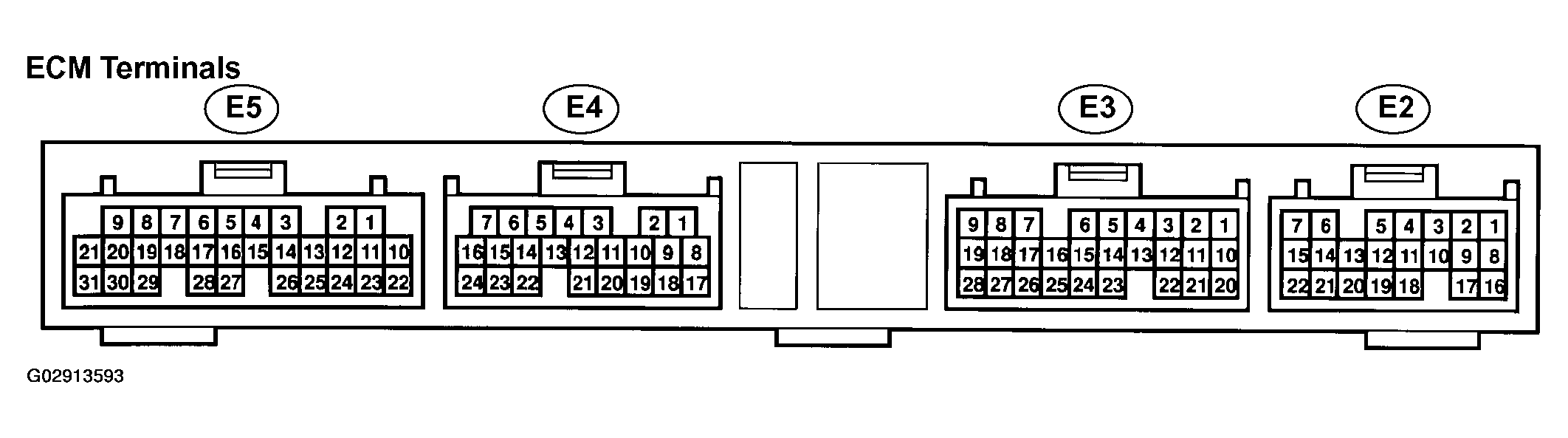

Fig 1: Locating ECM Terminals
G02913593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

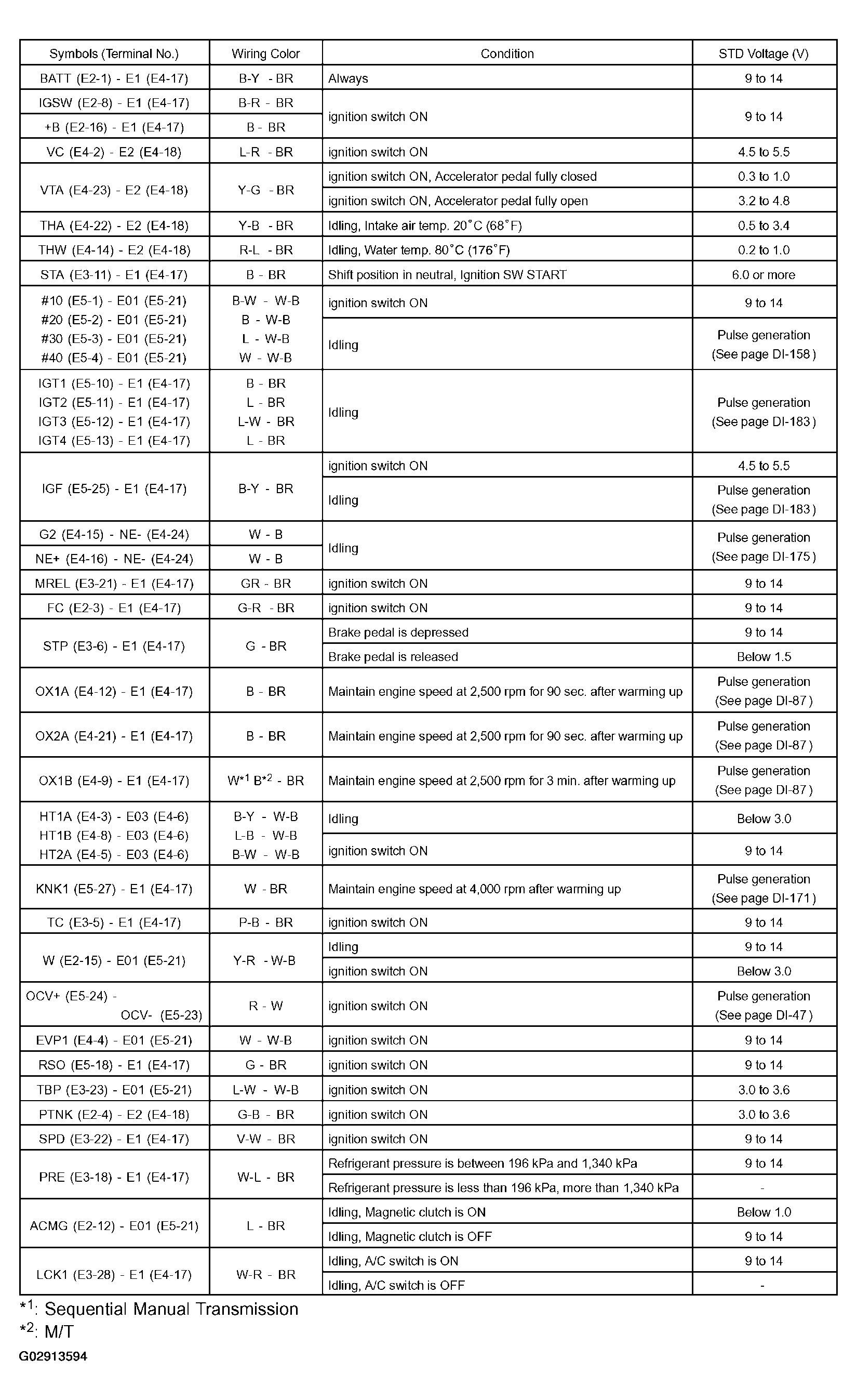

Fig 2: ECM Pin Voltage Chart
G02913594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
