Brake Pedal Sub-ASSY: Components

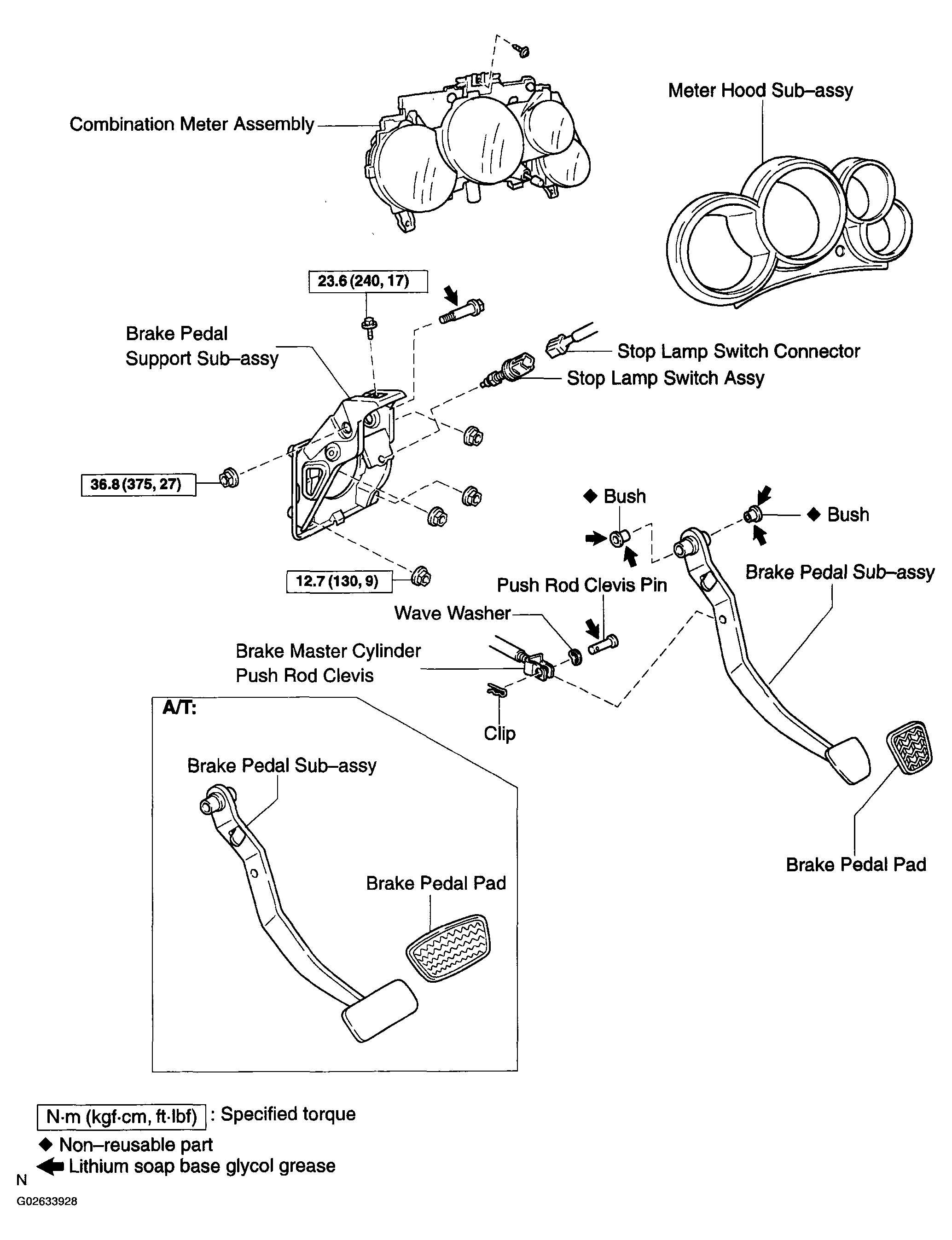

Fig 1: Identifying Components Of Brake Pedal Sub Assy
G02633928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
