Problem Symptoms Table

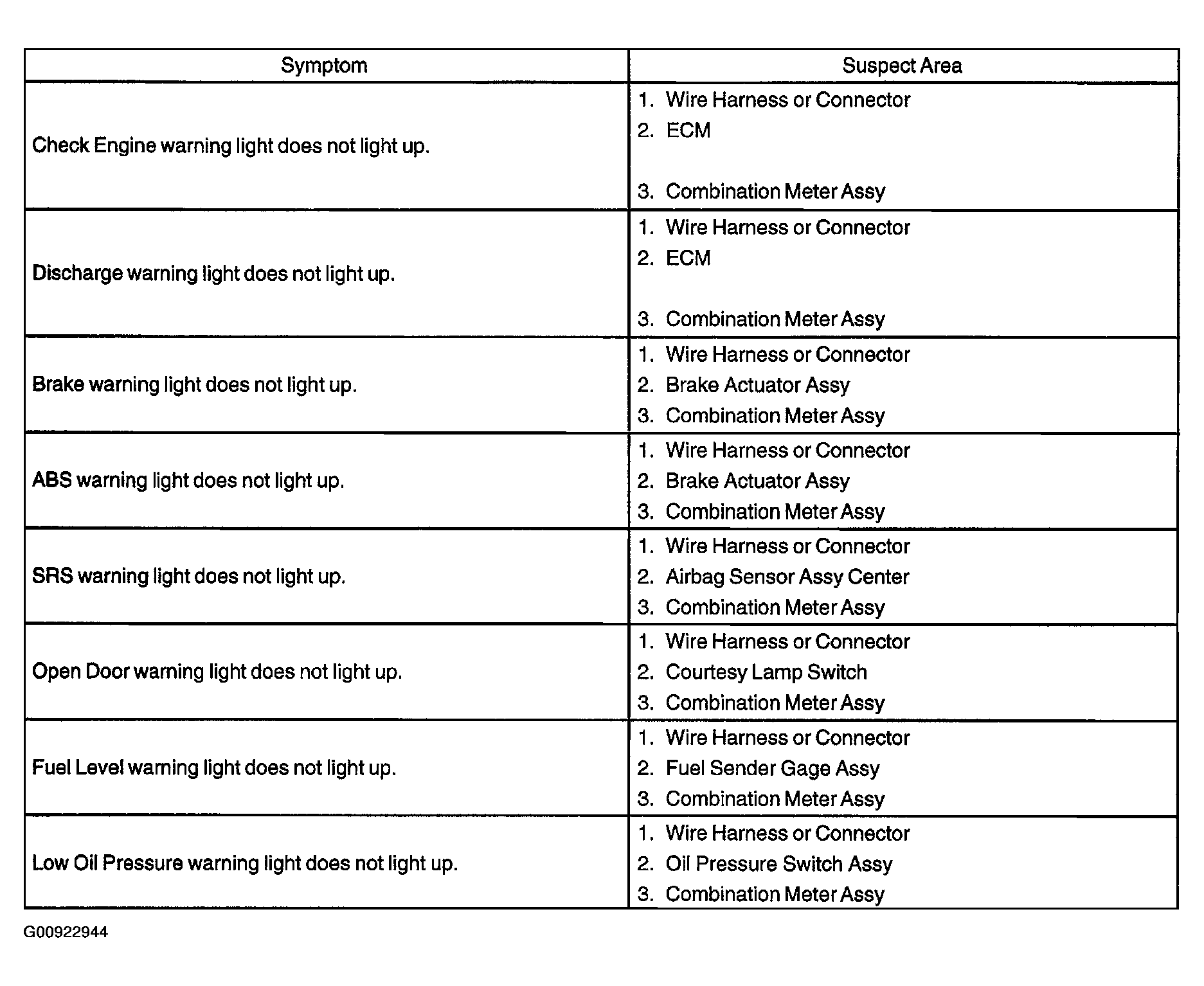

Fig 1: Problem Symptoms Table - Warning Lights
G00922944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

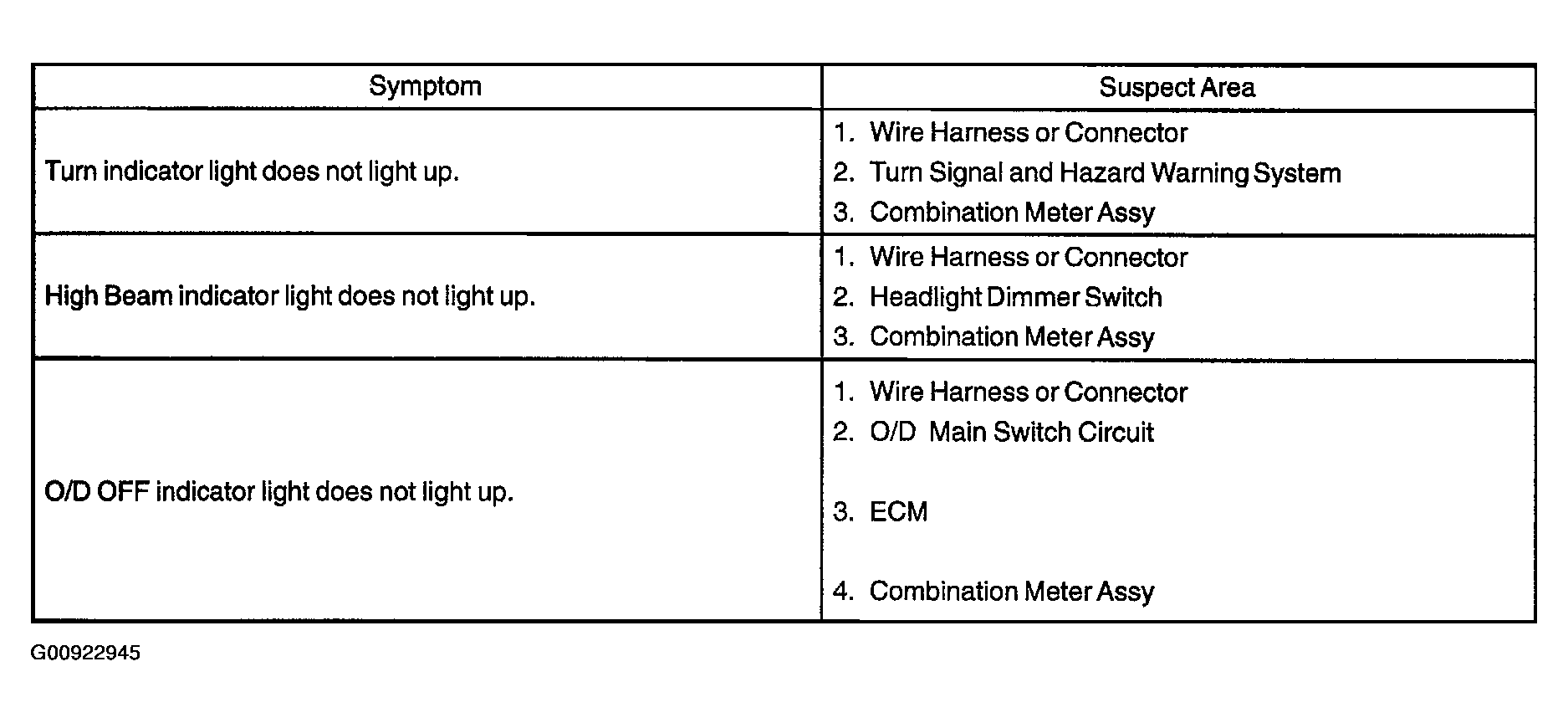

Fig 2: Problem Symptoms Table - Indicator Lights:
G00922945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
