Snap Ring Test

Using vernier calipers, measure the length of the snap ring end gap. See Fig 1. Verify end gap is within specification. See STARTER SPECIFICATIONS . If gap is greater than specification, replace with a NEW snap ring.

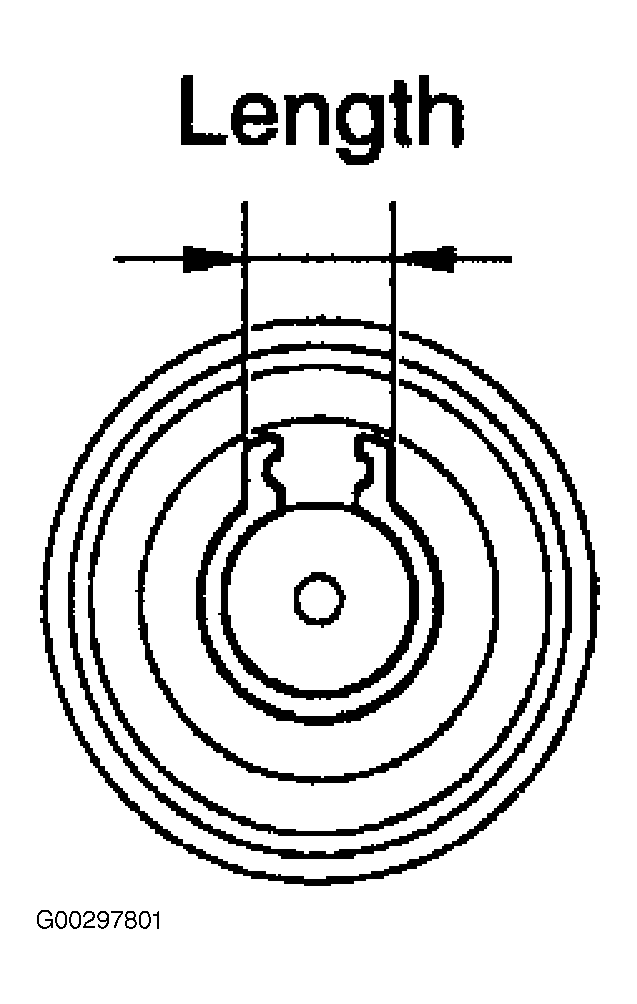

Fig 1: Measuring Snap Ring Gap

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
