Fuel Injector ASSY (2ZZ-GE): Replacement

  1. WORK FOR PREVENTING GASOLINE FROM SPILLING OUT (See  FUEL SYSTEM   )
  2. REMOVE CYLINDER HEAD COVER No. 2

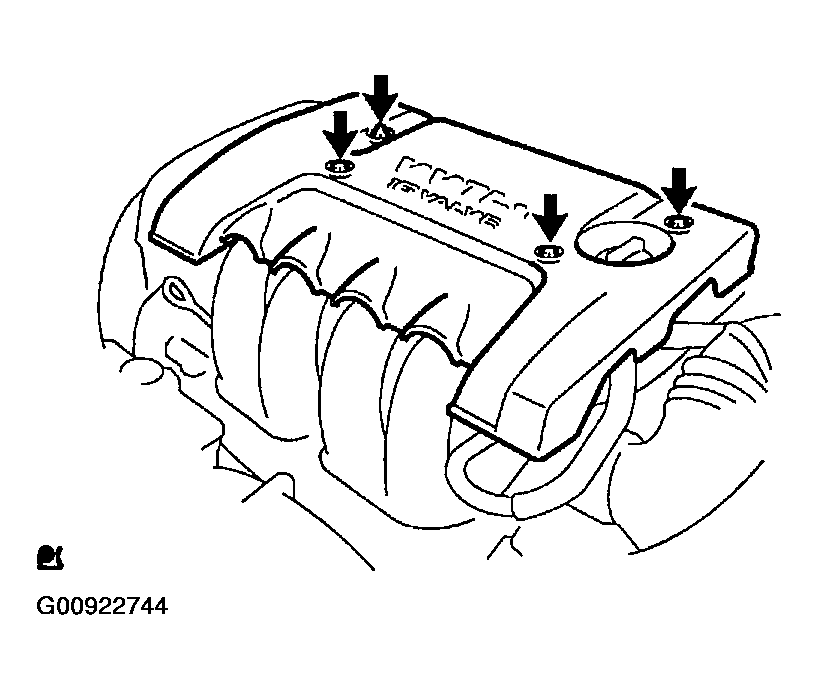

    Fig 1: Removing Cylinder Head Cover No. 2
    G00922744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 3 bolts, nut and cylinder head cover.
  3. REMOVE VENTILATION HOSE No. 2

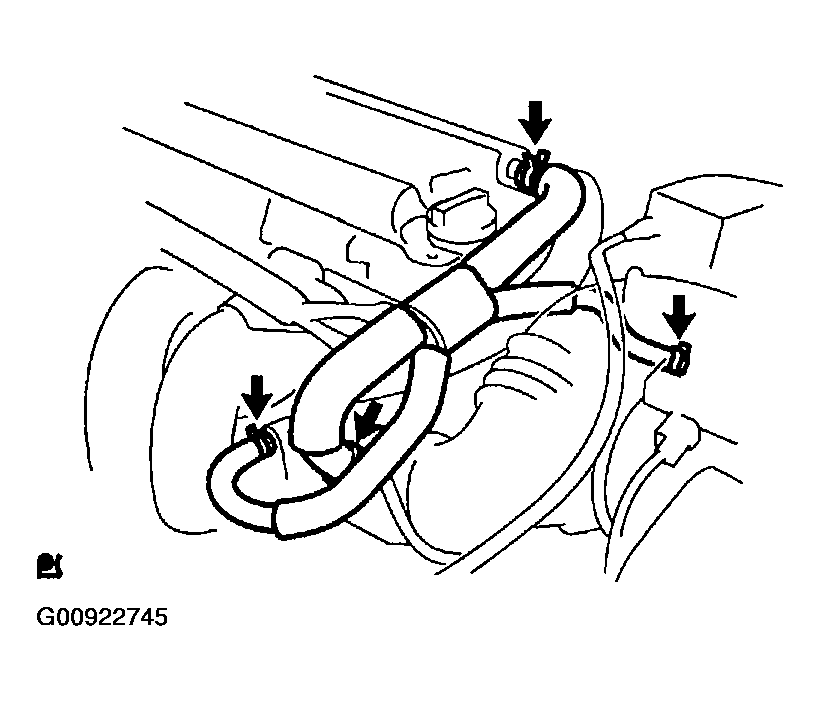

    Fig 2: Removing Ventilation Hose No. 2
    G00922745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the ventilation hose.
  4. REMOVE VENTILATION HOSE
    Fig 3: Removing Ventilation Hose
    G00922746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the ventilation hose.
  5. DISCONNECT ENGINE WIRE

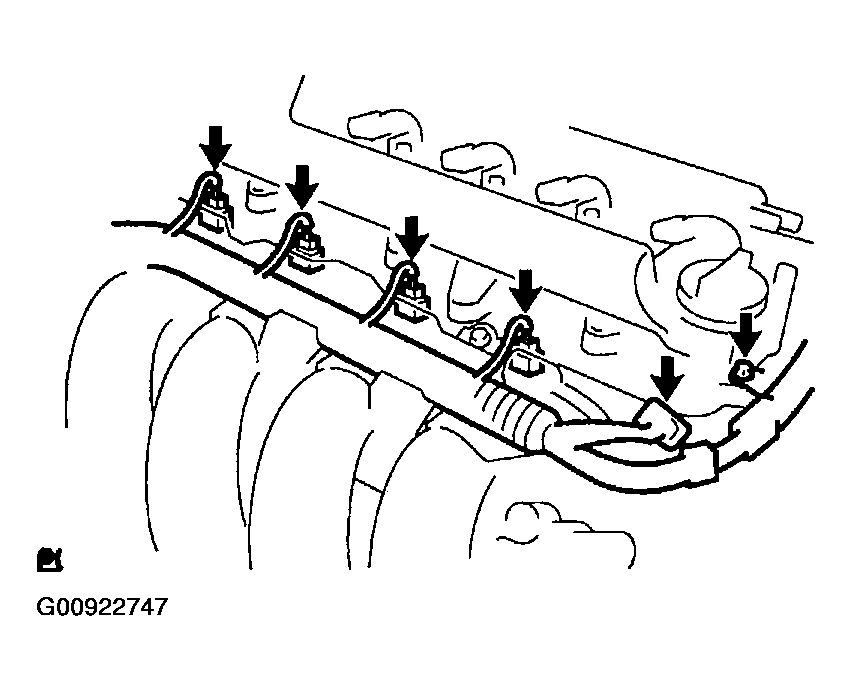

    Fig 4: Disconnecting Engine Wire
    G00922747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the bolt.
    2. Disconnect the 4 fuel injector connectors.
    3. Disconnect the cam position sensor connector.
  6. REMOVE EFI FUEL PIPE CLAMP

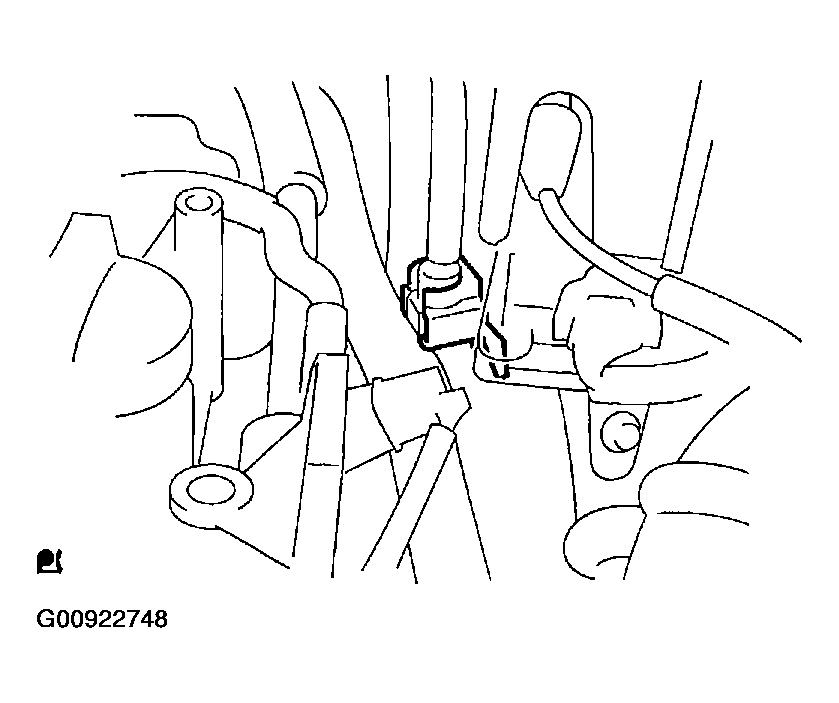

    Fig 5: Removing EFI Fuel Pipe Clamp
    G00922748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the EFI fuel pipe clamp.
  7. REMOVE FUEL DELIVERY PIPE SUB-ASSY
    1. Disconnect the fuel tube (fuel tube connector) from the fuel pipe.

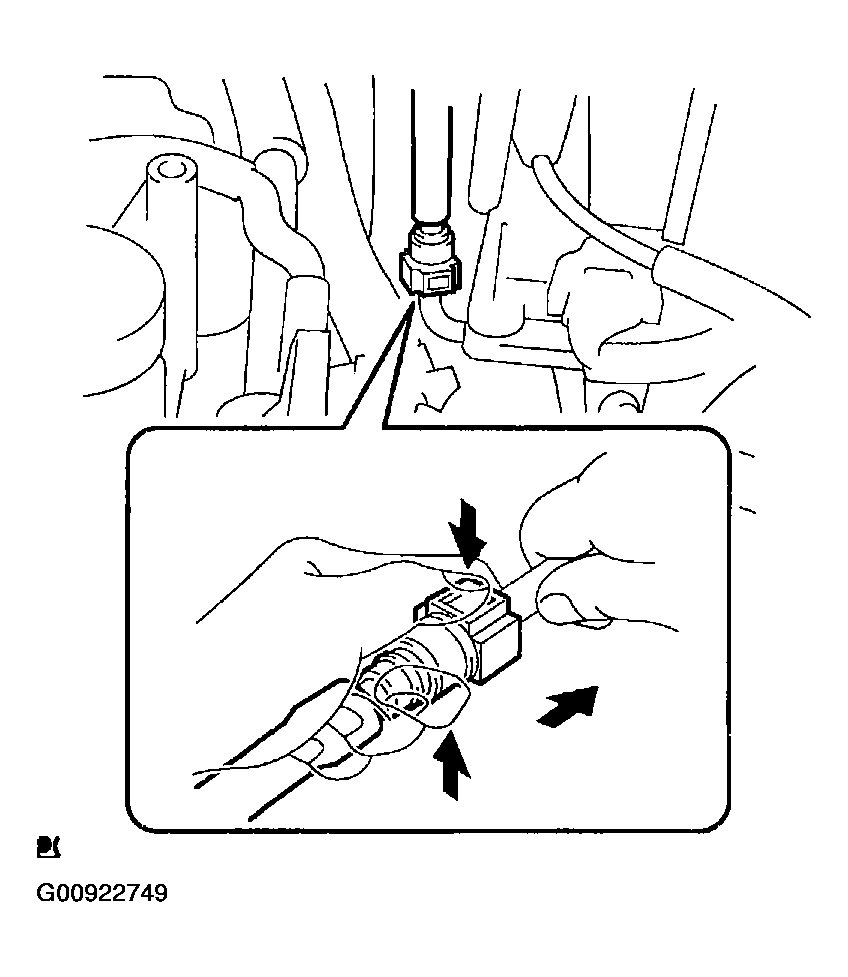

      Fig 6: Disconnecting Fuel Tube (Fuel Tube Connector) From Fuel Pipe
      G00922749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      CAUTION:
      • Perform disconnecting operations of the fuel tube connector (quick type) after observing the precautions.
      • As there is retained pressure in the fuel pipe line, prevent it from splashing inside the engine compartment.
    2. Remove the bolt and clamp.

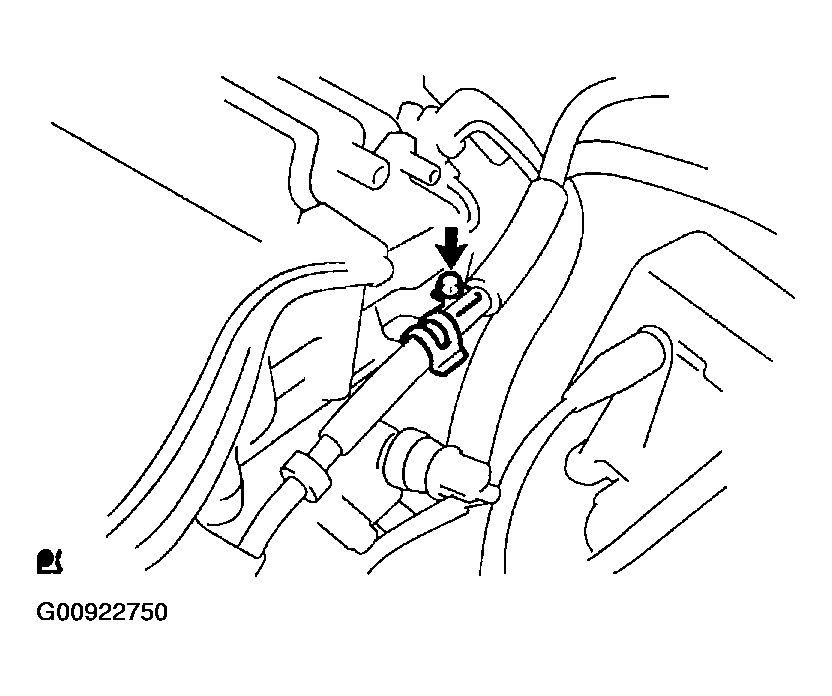

      Fig 7: Removing Bolt & Clamp
      G00922750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 3 bolts and fuel delivery pipe together with the 4 fuel injectors and fuel tube.

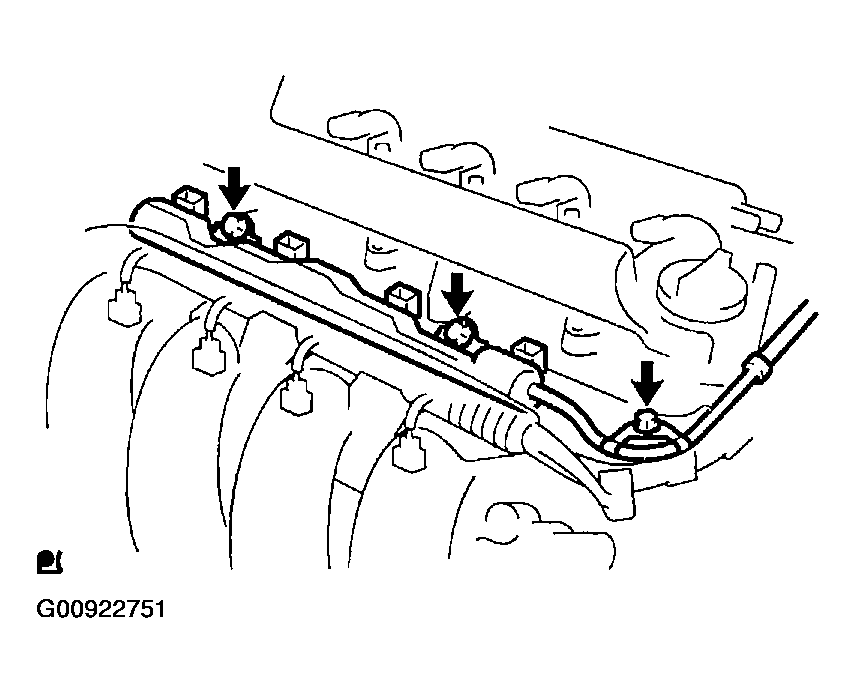

      Fig 8: Removing Fuel Delivery Pipe
      G00922751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Be careful not to drop the fuel injectors when removing the fuel delivery pipe.
    4. Remove the 2 spacers from the cylinder head.
      Fig 9: Removing Cylinder Head Spacers
      G00922752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE FUEL INJECTOR ASSY
    Fig 10: Removing Fuel Injector Assy
    G00922753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Pull out the 4 fuel injectors from the fuel delivery pipe.
  9. INSTALL FUEL INJECTOR ASSY
    1. Install a new insulator to the each fuel injector.
      Fig 11: Installing New Insulator & Gasoline To Fuel Injector
      G00922754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Apply a light coat of spindle oil or gasoline to a new O-ring, and install it to the each fuel injector.
      NOTE: Never use engine, gear or brake oil.
    3. Apply a light coat of spindle oil or gasoline on the place where the fuel delivery pipe touches on O-ring.
    4. While turning the fuel injector clockwise and counterclockwise, and push it to the fuel delivery pipe.
    NOTE:
    • Be careful not twist the O-ring.
    • After installing the fuel injectors, check that they turns smoothly. If the fuel injector does not, reinstall it with a new O-ring.
    • Fig 12: Checking Fuel Injector
      G00922755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL FUEL DELIVERY PIPE SUB-ASSY

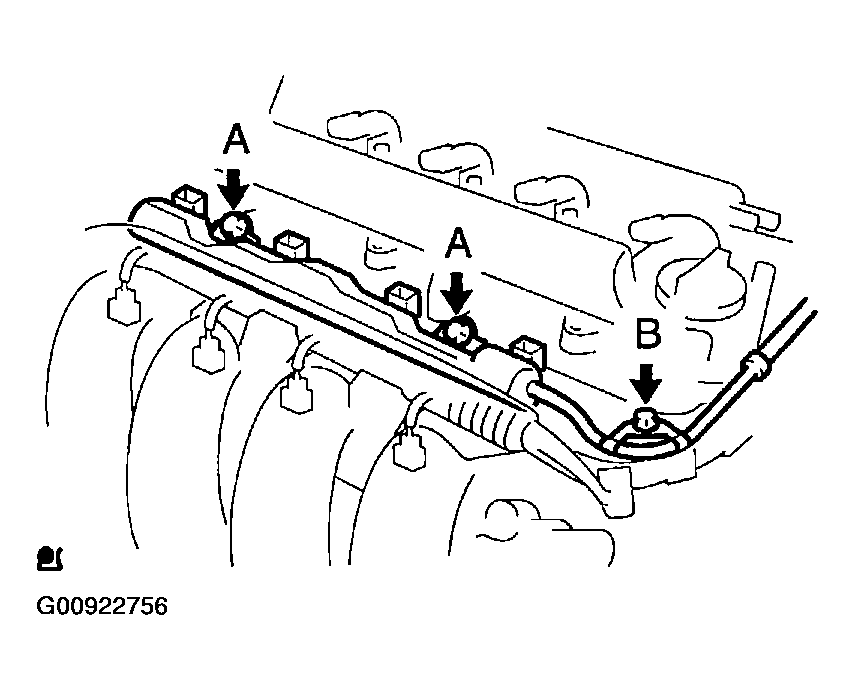

    Fig 13: Installing Fuel Delivery Pipe Sub-Assy
    G00922756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the 2 spacers to the cylinder head.
    2. Install the fuel delivery pipe together with the 4 fuel injectors and fuel tube with the 3 bolts.
      1. Torque:
        1. Bolt A 29 N.m (296 kgf.cm, 21 ft.lbf)
        2. Bolt B 9.0 N.m (92 kgf.cm, 80 in.lbf)
      NOTE:
      • Be careful not drop the fuel injectors when installing the fuel delivery pipe.
      • Check that the fuel injectors rotate smoothly after installing the fuel delivery pipe.
    3. Install the clamp with the bolt.
      1. Torque: 9.0 N.m (92 kgf.cm, 80 in.lbf)
    4. Connect the fuel tube (fuel tube connector) to the fuel pipe.
    CAUTION: Perform connecting operations of the connector (quick type) after observing the precautions.
  11. CONNECT ENGINE WIRE
    1. Connect the composition sensor connector.
    2. Connect the 4 fuel injector connectors.
    3. Install the bolt.
      1. Torque: 10 N.m (102 kgf.cm, 7 ft.lbf)
  12. INSTALL CYLINDER HEAD COVER No. 2
    1. Install the cylinder head cover with the 3 bolts and nut.
      1. Torque: 7.0 N.m (71 kgf.cm, 62 in.lbf)
  13. CHECK FUEL LEAK (See   FUEL SYSTEM   )
