Mode 6 - 2004 TOYOTA: AVALON

TID $04: HO2S Heater

TLT	CID	Unit Conversion	Description of Test Value	Description of Test Limit
1	$02	Multiply by 0.000076 (A)	Maximum HO2S heater current (bank 1 sensor 2)	Malfunction criterion

Fig 1: TID $08: Thermostat

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

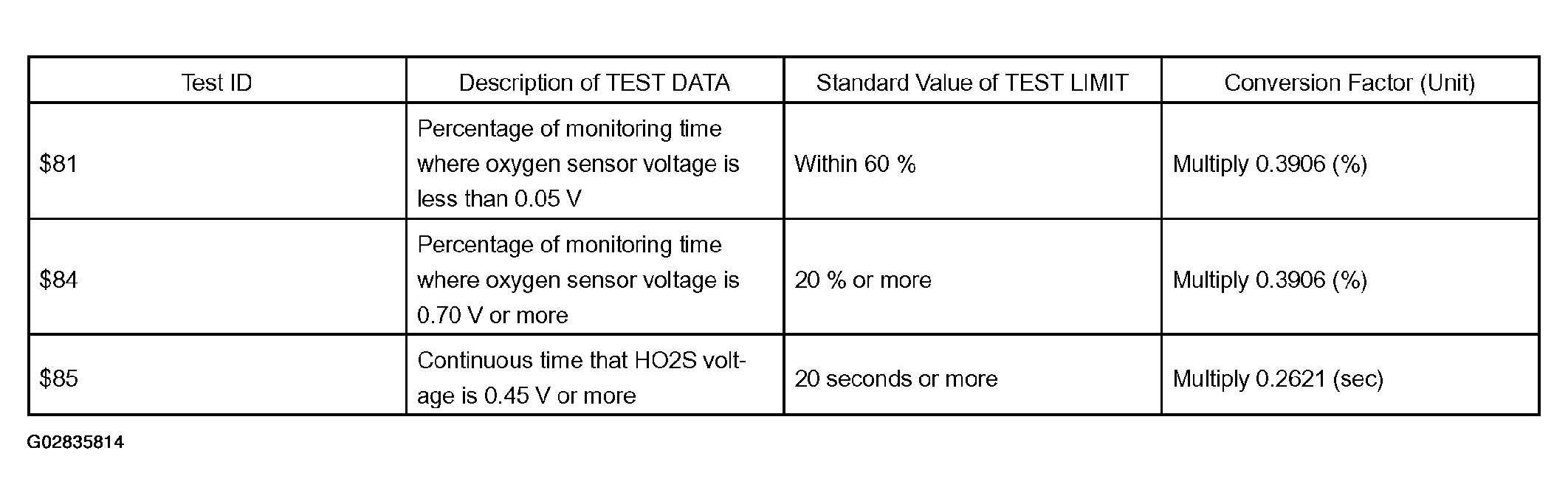

Fig 2: O2S Test Result Chart (HO2S Voltage)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

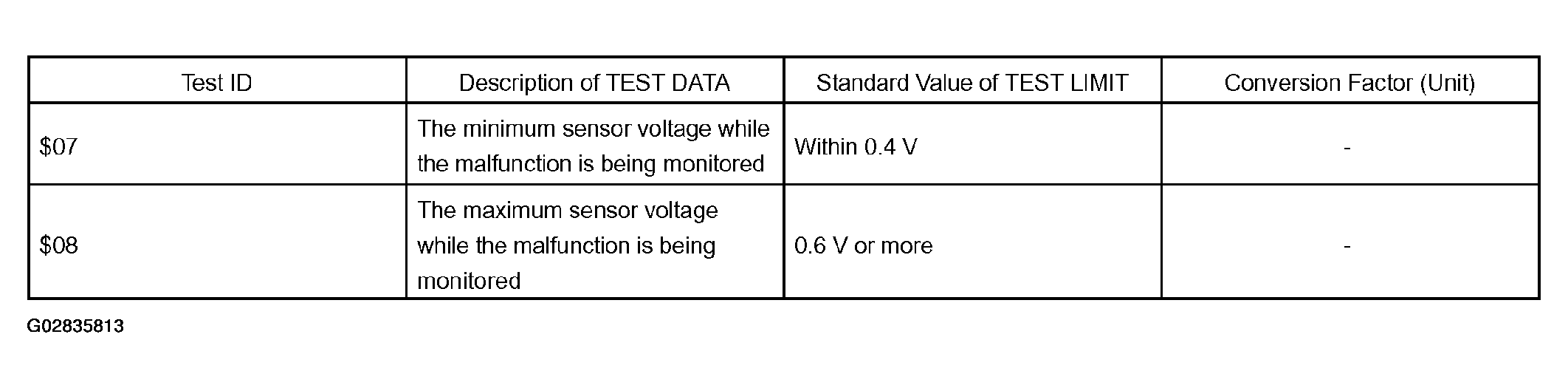

Fig 3: O2S Test Result Chart (HO2S Low Voltage)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

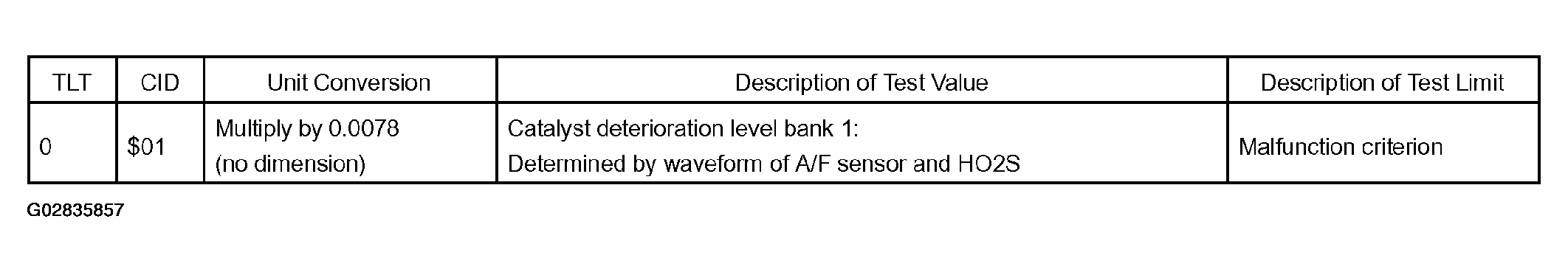

Fig 4: TID $01: Catalyst - Using A/F Sensor and HO2S

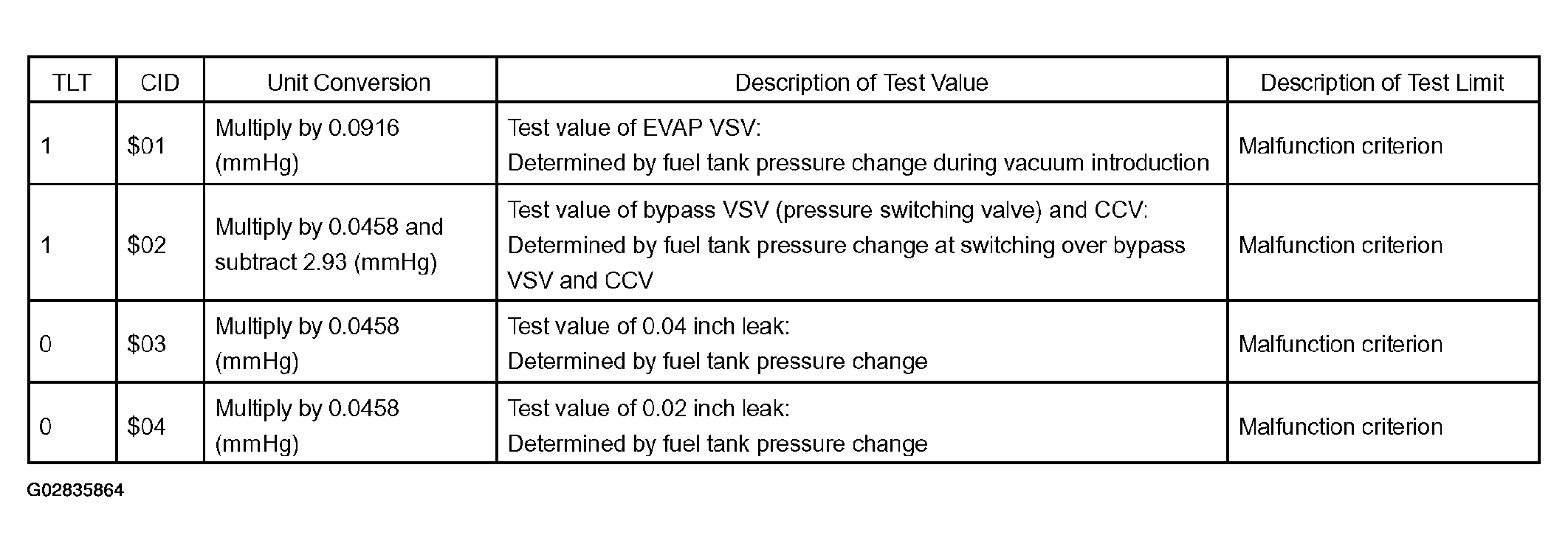

Fig 5: TID $02: EVAP - Vacuum Monitor

TID $06: A/F Sensor

TLT	CID	Unit Conversion	Description of Test Value	Description of Test Limit
0	$01	Multiply by 0.000244 (No dimension)	Parameter for identify A/F sensor response rate (bank 1)	Malfunction criterion
0	$11	Multiply by 0.000244 (No dimension)	Parameter for identify A/F sensor response rate (bank 2)	Malfunction criterion
